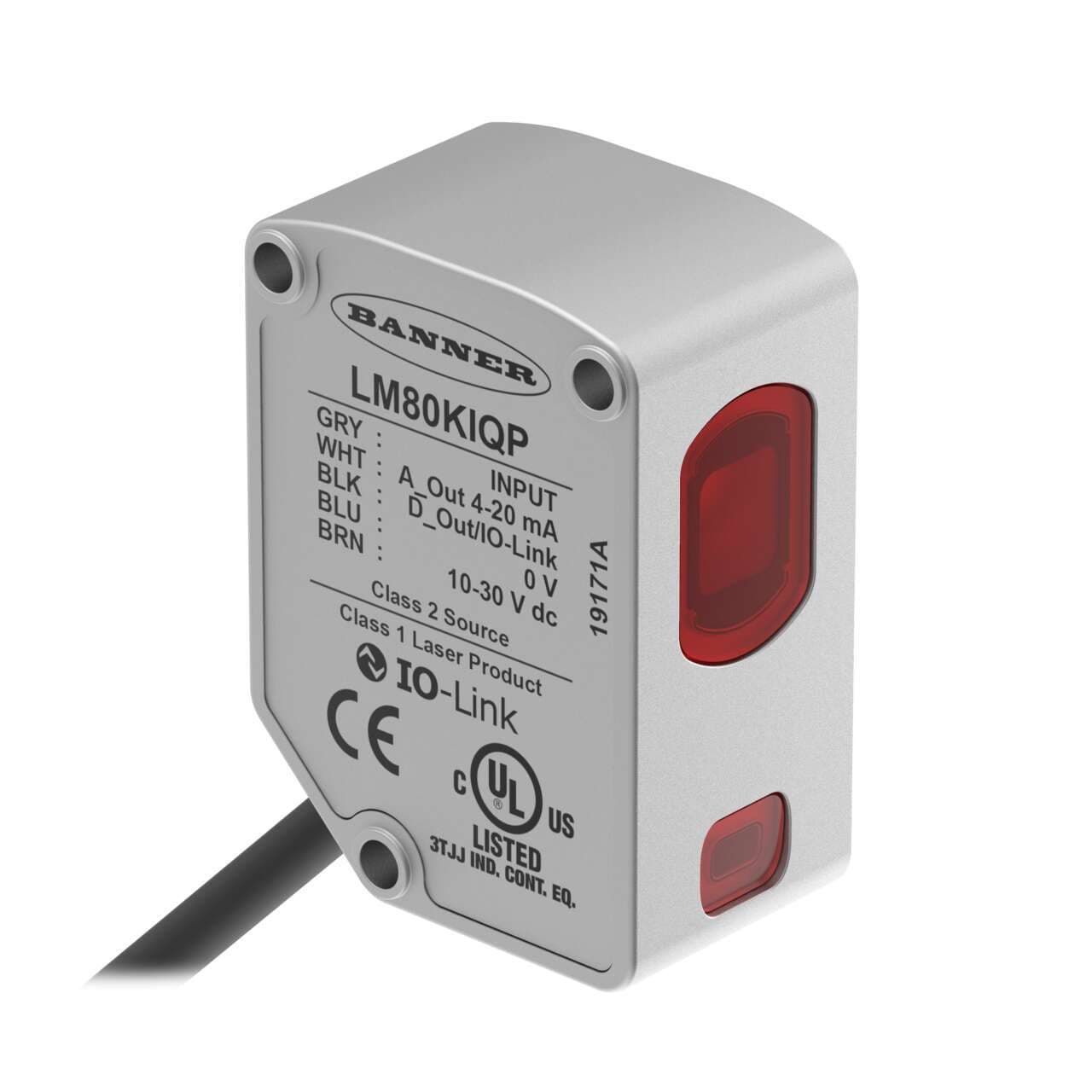

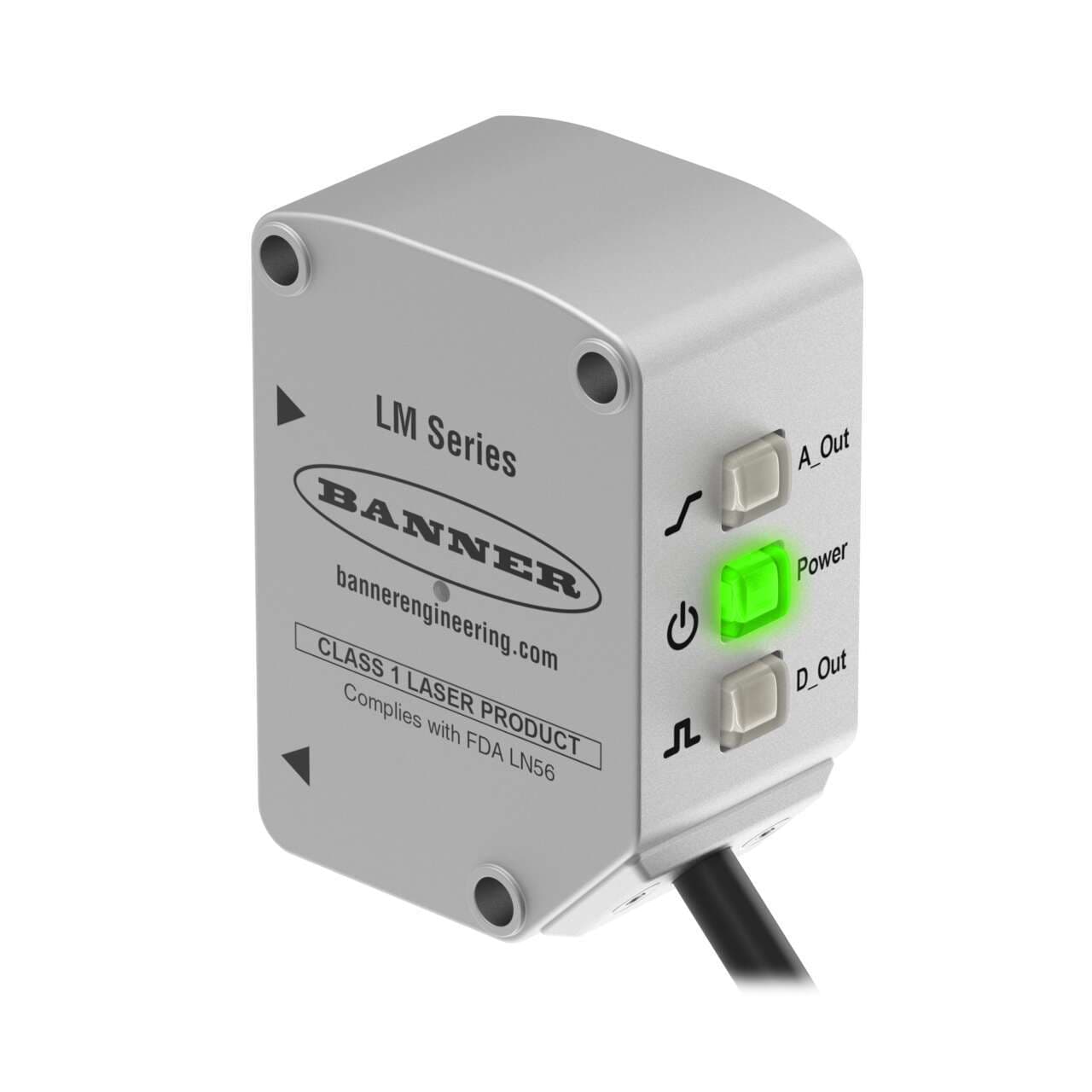

LM80KIQP Banner Vision Accessories

Product Details

• Weight
  208.65232 g
• Country Of Origin
  US
• Device Type
  Sensor
• Quick Disconnect Type
  M12 (Euro)
• Output Saturation Voltage PNP Outputs
  < 3 V at 50 mA
• Max Operating Temperature (°C)
  55
• Minimum Window Size (mm)
  0.024
• IO Link
  Yes
• Sensing Mode (General)
  Proximity
• Analog Output Configuration
  4-20 mA
• Number of Pins
  5
• Storage Temperature (°C)
  -35 to 60
• Analog Linearity (mm)
  40 mm to 70 mm: ± 0.02 mm, 70 mm to 80 mm: ± 0.03 mm
• Common Ethernet Protocol
  No
• Max Measurement Range
  <= 100 mm
• Analog Resolution/Discrete Repeatability
  0.002
• Mechanical Shock
  IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
• Warm-up Time (minutes)
  10
• Power/Current Consumption (exclusive of load)
  < 62 mA at 24 V dc
• Housing Style
  Rectangular
Input/Output
Analog & Discrete
Delay at Power-up (ms)
2100
Max Discrete (Switched) Output (mA)
50
Spot Size (@ Reference Distance)
0.37 mm x 0.21 mm @ 80 mm
Feature: Remote Teach
Yes
RS-485
No
Power
DC
Max Sensing Distance (mm)
80
Adjustments
Remote Teach
Discrete (Switched) Outputs
1 NPN/PNP Configurable
Discrete Output Hysteresis (mm)
Automatically adjusted
Feature: Timing (Hold/Delay)
Yes
Sensing Beam
Visible Red Laser
Connection
Pigtail QD
Power Supply
10-30 V dc
Vibration
IEC 60947-5-2 (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Minimum Response Time (ms)
0.5
Max Ambient Light (Lux)
10000
RS-232
No
Sensing Beam Wavelength (nm)
655
Max Op. Relative Humidity Non-Condensing (%)
90 at 55°C
Alarm Output (mA)
50
Feature: Health/ Marginal Signal Output
Yes
PC Configurable
No
Primary Housing Material
Stainless Steel
Minimum Sensing Distance (mm)
40
Analog Current Output Rating
500 Ω max
Min Operating Temperature (°C)
-10
Supply Protection Circuitry
Protected against reverse polarity and transient overvoltages
RS-422
No
Temperature Effect (mm/°C)
+/- 0.006 mm/°C
Sensing Mode (Detailed)
Triangulation
Indicator
LED(s)
Output Protection
Protected against continuous overload and short circuit
Laser Control
Yes
Feature: Clear Object Detection
Yes
Wireless
No
Cable Length (m)
0.15
Laser Classification
Class 1
Output Saturation Voltage NPN Outputs
< 2.5 V at 50 mA
IP Rating
IP67
Window Material
Acrylic
Feature: Chemical Resistant
Yes
1-wire Serial Interface
No
SSI
No
PROFINET
No
Profibus
No
