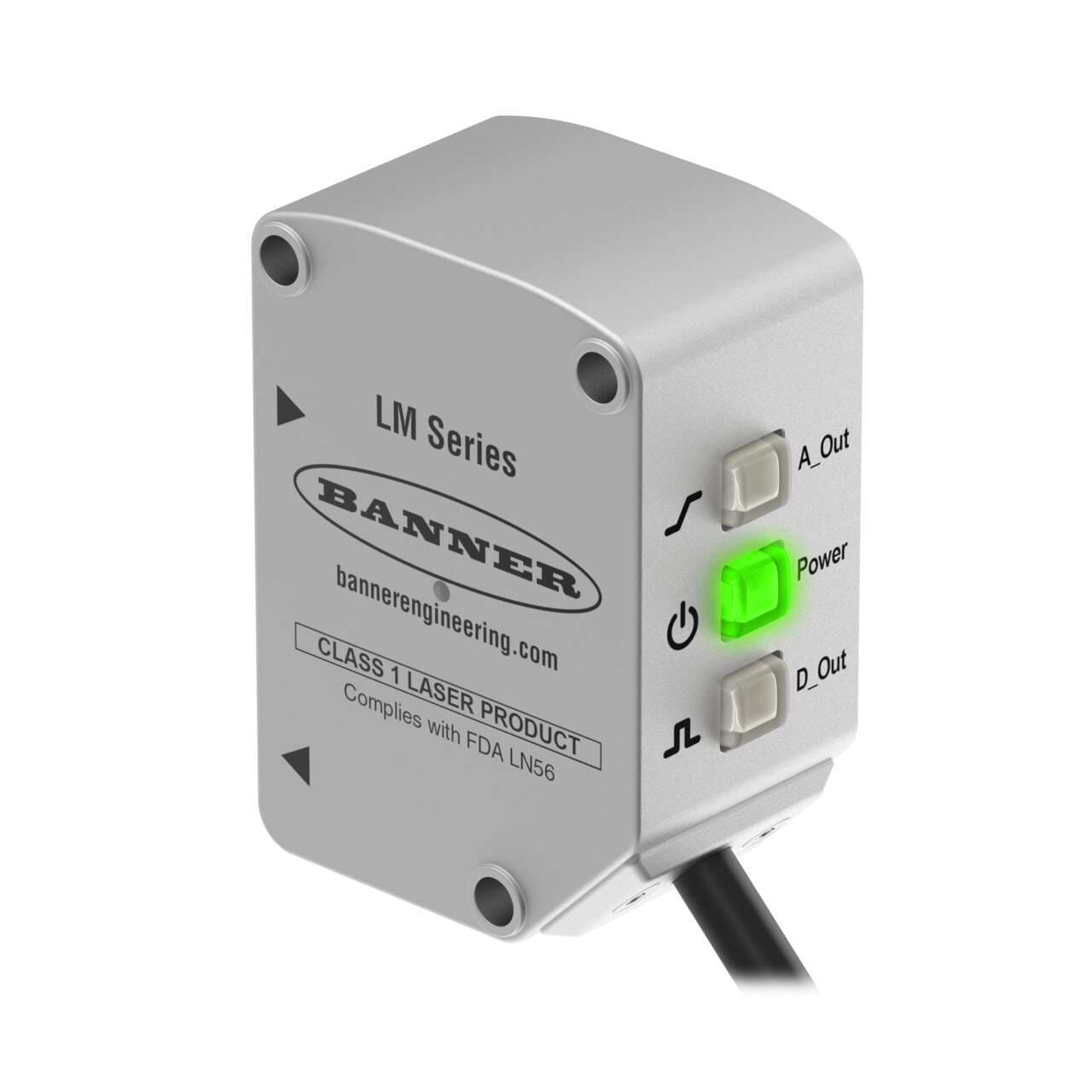

LM80KUQP Banner Vision Accessories

Product Details

• Weight
  201.84844 g
• Country Of Origin
  US
• Sensing Beam
  Visible Red Laser
• Connection
  Pigtail QD
• Number of Pins
  5
• Wireless
  No
• Discrete (Switched) Outputs
  1 NPN/PNP Configurable
• Max Op. Relative Humidity Non-Condensing (%)
  90 at 55°C
• PROFINET
  No
• Input/Output
  Analog & Discrete
• PC Configurable
  No
• Power Supply
  10-30 V dc
• Device Type
  Sensor
• Max Sensing Distance (mm)
  80
• Vibration
  IEC 60947-5-2 (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
• Sensing Mode (Detailed)
  Triangulation
• Quick Disconnect Type
  M12 (Euro)
• Window Material
  Acrylic
• Max Measurement Range
  <= 100 mm
• RS-422
  No
Housing Style
Rectangular
Analog Resolution/Discrete Repeatability
0.002
Temperature Effect (mm/°C)
+/- 0.006 mm/°C
Cable Length (m)
0.15
Indicator
LED(s)
Adjustments
Remote Teach
Minimum Window Size (mm)
0.024
Sensing Mode (General)
Proximity
Analog Output Configuration
0-10 V
Sensing Beam Wavelength (nm)
655
Power
DC
Laser Classification
Class 1
Delay at Power-up (ms)
2100
Output Saturation Voltage PNP Outputs
< 3 V at 50 mA
Output Protection
Protected against continuous overload and short circuit
Output Saturation Voltage NPN Outputs
< 2.5 V at 50 mA
Max Operating Temperature (°C)
55
Power/Current Consumption (exclusive of load)
< 62 mA at 24 V dc
Feature: Chemical Resistant
Yes
RS-485
No
Mechanical Shock
IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
Discrete Output Hysteresis (mm)
Automatically adjusted
Feature: Health/ Marginal Signal Output
Yes
RS-232
No
Profibus
No
Analog Current Output Rating
1000 Ω min
Max Ambient Light (Lux)
10000
Feature: Clear Object Detection
Yes
SSI
No
Min Operating Temperature (°C)
-10
Supply Protection Circuitry
Protected against reverse polarity and transient overvoltages
1-wire Serial Interface
No
Max Discrete (Switched) Output (mA)
50
Warm-up Time (minutes)
10
Laser Control
Yes
IO Link
Yes
Minimum Sensing Distance (mm)
40
IP Rating
IP67
Analog Linearity (mm)
40 mm to 70 mm: ± 0.02 mm, 70 mm to 80 mm: ± 0.03 mm
Feature: Timing (Hold/Delay)
Yes
Primary Housing Material
Stainless Steel
Storage Temperature (°C)
-35 to 60
Spot Size (@ Reference Distance)
0.37 mm x 0.21 mm @ 80 mm
Feature: Remote Teach
Yes
Common Ethernet Protocol
No
Minimum Response Time (ms)
0.5
Alarm Output (mA)
50
