M12NLPQPMA Banner Electronic Components
Part#:M12NLPQPMA
Manufacturer:Banner
Category:Electronic Components
Product Lifecycle:Active
Product description

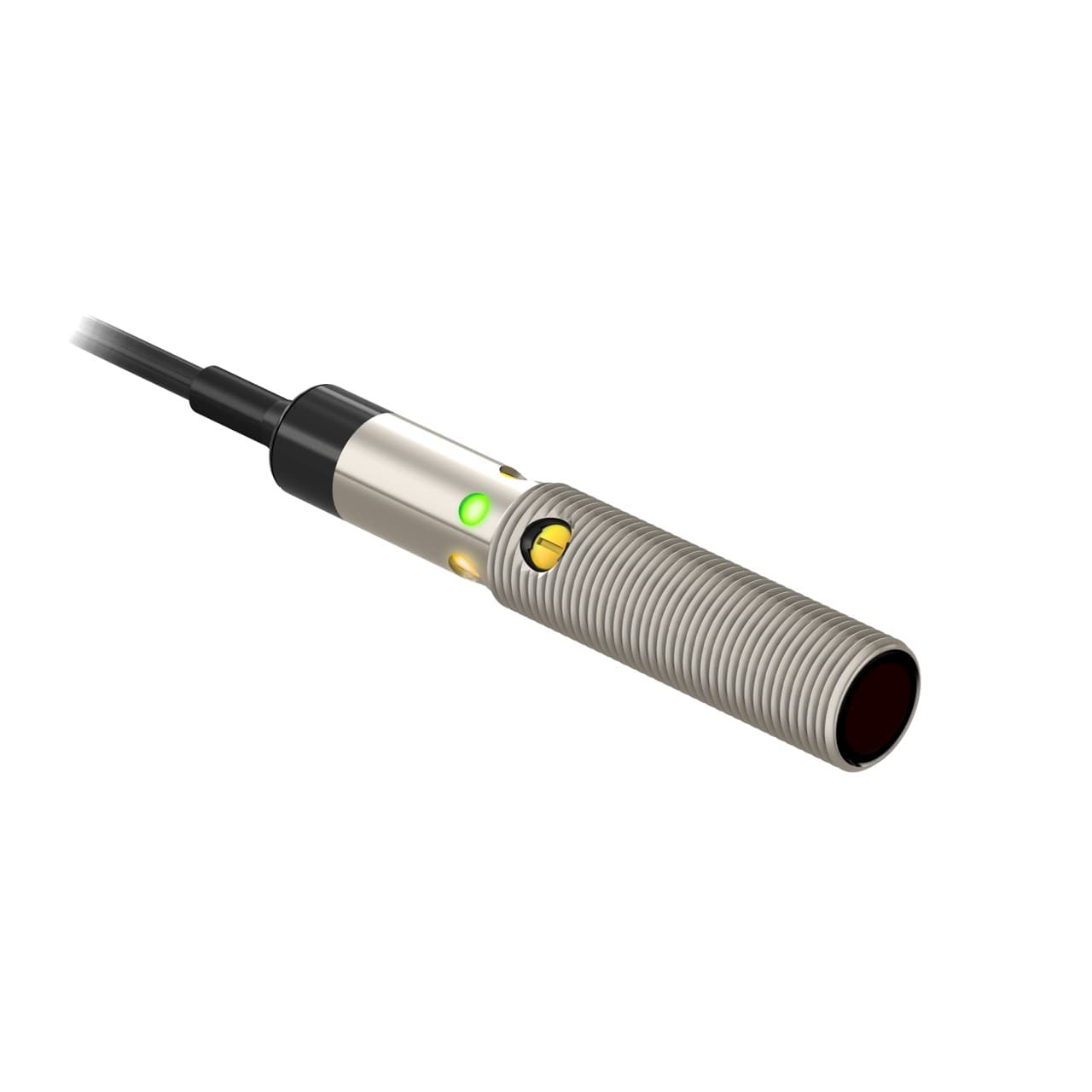

Banner Engineering M12NLPQPMA is a polarized photo-electric sensor from the M12 series designed in a retro-reflective mode with potentiometer adjustment. It features a visible red light and is constructed with a nickel-plated brass housing, a polymethyl methacrylate (PMMA) lens, and a polyurethane (PUR) cable sheath. This sensor is pre-wired with a 6" / 150mm PUR cable that terminates with a 4-pin Euro-style M12 connector. It operates on a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.) and has a wavelength of 660 nm. The ambient air temperature for operation ranges from -20 to +60 °C. It offers a degree of protection rated at IP67, IP68, NEMA 5, and NEMA 6. The operating modes include Light-ON and Dark-ON, with a thread size of M12 and a sensing distance of 1.5m. Additionally, it has 1 x digital output (NPN transistor; complementary NO/NC) and a response time of 0.5ms / 0.0005 s.
Product Details
- Main function Sensor (Photo-electric)
- Functions Polarized photo-electric sensor green LED (power ON) amber LED (light sensed) potentiometer adjustment
- Shape Cylindrical threaded/barrel
- Response time 0.5ms / 0.0005 s
- Compliant with standard(s) CE
- Primary brand Banner Engineering
- Design retro-reflective mode
- Thread size M12
- Degree of protection IP67 IP68 NEMA 5 NEMA 6
- Sub-range name M12
- Light Color Visible red
- Connection type Pre-wired with 6" / 150mm PUR pigtail terminated with 4-pin Euro-style M12 connector
- Operating mode Light-ON Dark-ON
- Material Nickel-plated brass housing PMMA lns. PUR pigtail
- Wavelength 660 nm
- Digital outputs 1 x digital output (NPN transistor)
- Ambient air temperature for operation -20...+60 °C
- Order code / Manufacturer SKU 77740
- Sensing distance 1.5m
- Product series / family name M12 barrel series
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Operation Light/Dark Operate
- Number of Pins 4
- Adjustments Potentiometer
- Input/Output Discrete
- Connection Pigtail PUR QD
- Feature: Washdown Rated Yes
- Feature: Audible No
- Sensing Beam Visible Red LED
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Remote Teach No
- Max Op. Relative Humidity [%] 90% @ 50°C
- DeviceNet No
- Cable Length (m) 0.15
- Outputs NPN
- Special Feature: Water Detection No
- Lens Material PMMA
- IO Link No
- Housing Style Barrel
- Max Op. Temp. (°C) 60
- IP Rating IP67, IP68
- Feature: Encapsulated Yes
- Primary Housing Material Nickel-Plated Brass
- Output response time (ms) 0.5
- NEMA Rating NEMA 5, 6 and 1200 PSI Washdown
- Power DC
- Sensing Mode (General) Retroreflective
- Quick Disconnect Type M12 (Euro)
- Repeatability (µs) 95
- Barrel Diameter (mm) 12
- Feature: Hazardous Area No
- Max Sensing Distance (mm) 1500
- Special Feature: Intrinsically Safe No
- Delay at Power-up (ms) 100
- Opposed Mode Emitter/Receiver N/A
- Sensing Mode (Detailed) Polarized
- Min Op. Temp. (°C) -20
- Sensing Beam Wavelength 660
- Indicator LEDs
- Feature: Timing (Hold/Delay) No
- Feature: Chemical Resistant No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
