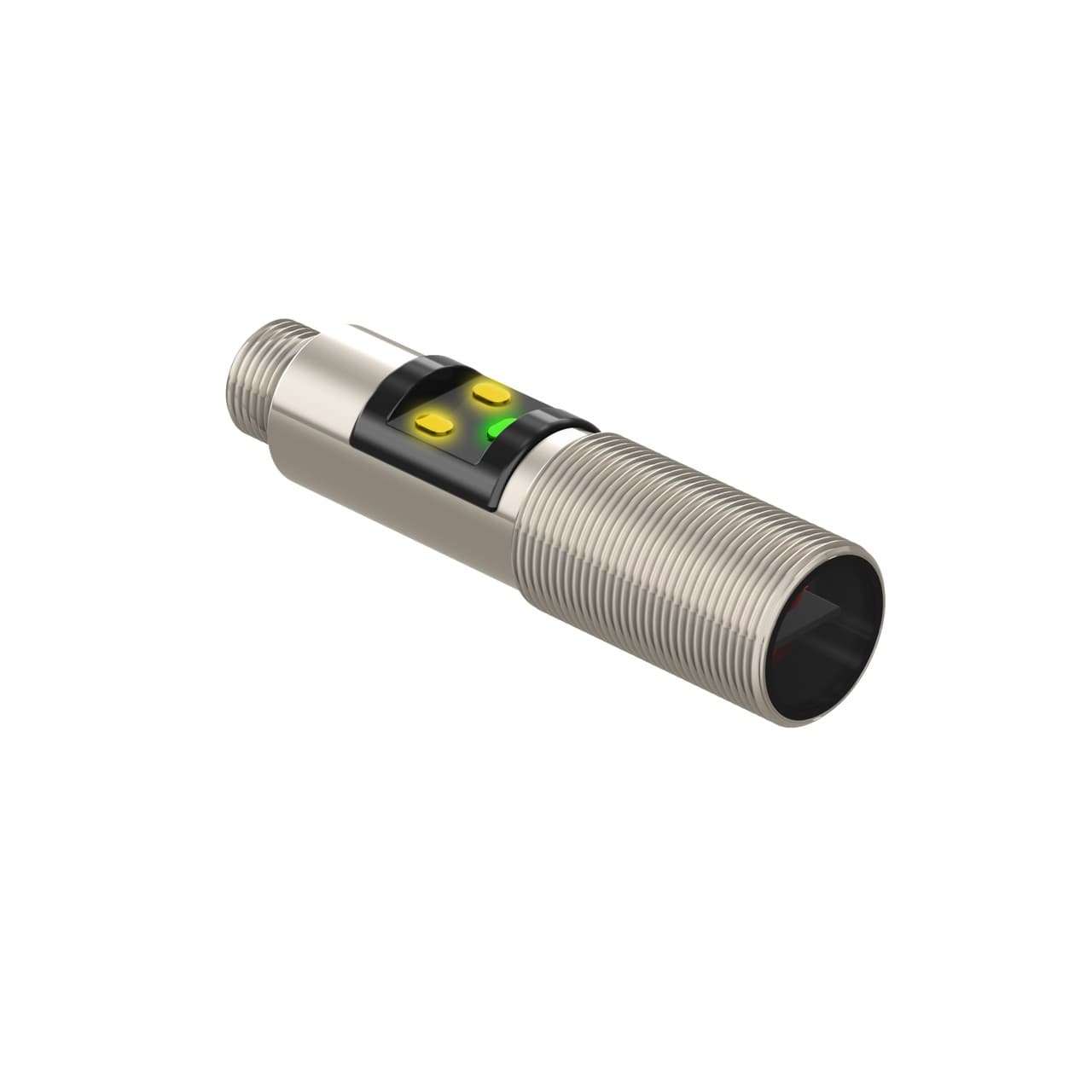

M18-4VNFF75-Q8 Banner Electronic Components

Product Details

• Main function
  Sensor (Photo-electric)
• Design
  background / foreground suppression system
• Primary brand
  Banner Engineering
• Supply voltage (DC)
  10Vdc-30Vdc (12Vdc / 24Vdc nom.)
• Wavelength
  624 nm
• Digital outputs
  1 x digital output (NPN transistor)
• Equivalent to
  M184VNFF75Q8
• Product series / family name
  M18 barrel series
• Connection type
  Pre-equipped with 4-pin Euro-style M12 connector
• Light Color
  Visible red
• Operating mode
  Light-ON Dark-ON
• Shape
  Cylindrical threaded/barrel
• Response time
  1.5ms / 0.0015 s
• Sensing distance
  75mm
• Thread size
  M18
• Degree of protection
  IP67 IP69K
• Order code / Manufacturer SKU
  800592
• Sub-range name
  M18-3 (stainless steel)
• Functions
  Fixed-field photo-electric sensor green LED (power ON) 2 x yellow LED (output conducting)
• Ambient air temperature for operation
  -40...+70 °C
Compliant with standard(s)
cULus CE
Material
Stainless steel housing Acrylic lns.
Sensing Beam
Visible Red LED
Input/Output
Discrete
Sensing Mode (Detailed)
Background Suppression (Fixed)
Housing Style
Barrel
Power
DC
Primary Housing Material
Stainless Steel
Small Visible Spot
LED
Outputs
NPN
Sensing Mode (General)
Proximity
Power Supply/Supply Voltage
10-30 V dc
Connection
Integral QD
Min Op. Temp. (°C)
-40
Quick Disconnect Type
M12 (Euro)
Max Sensing Distance (mm)
75
Max Op. Temp. (°C)
70
Output response time (ms)
1.5
Opposed Mode Emitter/Receiver
N/A
IO Link
No
Max Op. Relative Humidity [%]
95% @ 50°C
Repeatability (µs)
100
Feature: Health/ Marginal Signal Output
Yes
Indicator
LEDs
Feature: Washdown Rated
Yes
DeviceNet
No
Sensing Beam Wavelength
624
Adjustments
N/A
Operation
Light/Dark Operate
IP Rating
IP67, IP69
Feature: Audible
No
Delay at Power-up (ms)
100
NEMA Rating
N/A
Feature: Timing (Hold/Delay)
No
Number of Pins
4
Special Feature: Remote Teach
No
Lens Material
Acrylic
Feature: Hazardous Area
No
Special Feature: Intrinsically Safe
No
Barrel Diameter (mm)
18
Feature: Ecolab Certified
Yes
Special Feature: Water Detection
No
Feature: Encapsulated
No
Feature: Chemical Resistant
Yes
