MQDC-406RA Banner Cordsets
Product Details
- Weight 90.7184 g
- Country Of Origin US
- Outside Cable Diameter (mm) 5.2
- Primary Number of Conductors 4
- Number of Contacts 4
- Current Rating (A) 4.0
- Oil/Grease Resistant No
- Number of Connectors 1
- Primary Connector Type EURO
- Cable Jacket Material PVC
- Maximum Temp. (°C) 105
- Primary Orientation Right Angle
- Cable Jacket Color Black
- Minimum Temp. (°C) -40
- Feature: Hazardous Area No
- Coupling Material/Color Nickel Plated Brass
- Primary Gender Female
- Connector Body Material/Color PUR Black
- Primary Coupling Method M12 Single Key
- Cordset Length (m) 1.83
- Secondary Connector Type Flying Leads
- Shield/No Shield No Shield
- IP Rating IP67
- Trunk Length (m) No Trunk
- Voltage Rating (V) 250 V ac/dc
- Primary AWG 22
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of MQDC-406RA on Powermatic Associates is $30.00. Order now.
About the product

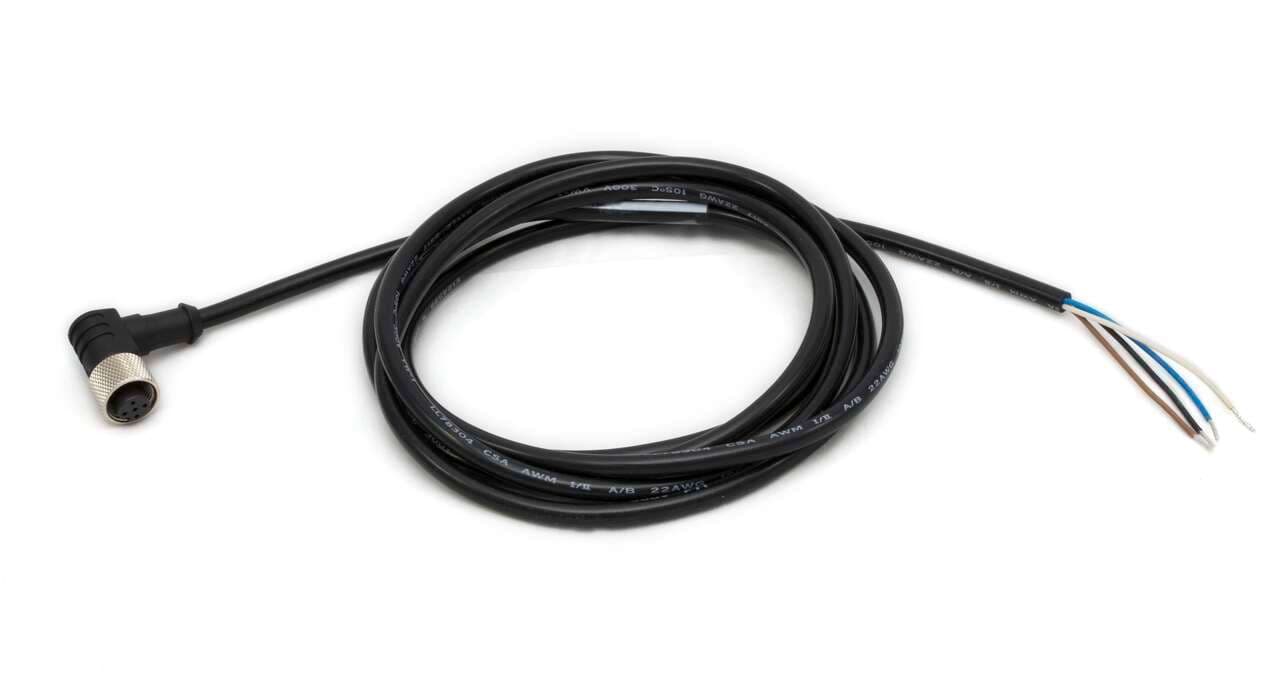

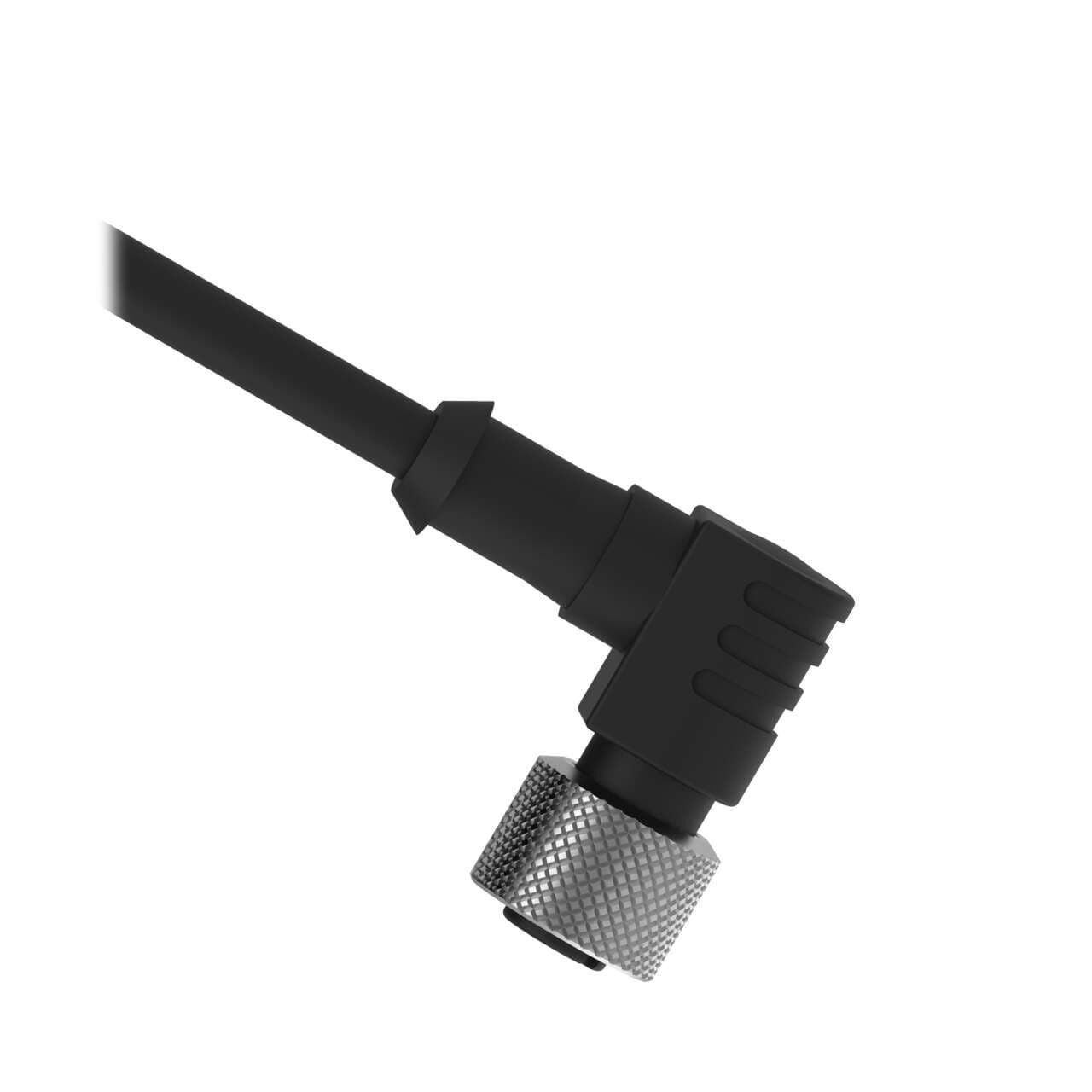

Banner Engineering MQDC-406RA is a pre-assembled cable/cordset designed for various automation applications. It features a single-ended design with a 4-pin Euro-style M12 female angled connector and bare end flying leads. The cable has a diameter of 5.2mm and is encased in black sheathing made from PVC. It measures 6.5 feet (approximately 2 meters) in length. The MQDC-406RA operates within an ambient air temperature range of -40 to +105 degrees Celsius and offers a degree of protection rated at IP67, making it suitable for challenging environments. The coupling nut is made from nickel-plated brass, ensuring a secure connection. This cable is rated for a maximum voltage of 250Vac.
MQDC-406RA Related Documents
Similar products from: Banner Cordsets
Manufacturer warranty
MQDC-406RA Banner
$30.00
Your price can be lower.
Log in or Create account to check your discount
Select Qty:
$30.00
$30.00 each
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare MQDC-406RA with other Cordsets products
Weight
Country Of Origin
Outside Cable Diameter (m...
Primary Number of Conduct...
Number of Contacts
Current Rating (A)
Oil/Grease Resistant
Number of Connectors
Primary Connector Type
Cable Jacket Material
Selected product
MQDC-406RA
Banner
Cordset: Single Ended M12; 4-pin Right-Angle Female; 2 m (6.56 ft) 4x22 Black PVC Jacket; Nickel-Pla...
Weight90.7184 g
Country Of OriginUS
Outside Cable Diameter (mm)5.2
Primary Number of Conductors4
Number of Contacts4
Current Rating (A)4.0
Oil/Grease ResistantNo
Number of Connectors1
Primary Connector TypeEURO
Cable Jacket MaterialPVC
MQDEC-401SS-PUR
Banner
Cordset: Double Ended M12; 4-pin Straight Female; 4-pin Straight Male; 0.3 m 4x22 Black PUR Jacket; ...
Weight45.3592 g
Country Of OriginUS
Outside Cable Diameter (mm)4.1
Primary Number of Conductors-
Number of Contacts4
Current Rating (A)-
Oil/Grease Resistant-
Number of Connectors2
Primary Connector Type-
Cable Jacket MaterialPUR
QDE-860D
Banner
Cordset: Single Ended M12; 8-pin Straight Female; 18.29 m 8x22 Yellow PVC Jacket; Nickel-Plated Bras...
Weight1088.6208 g
Country Of OriginTW
Outside Cable Diameter (mm)6
Primary Number of Conductors-
Number of Contacts8
Current Rating (A)-
Oil/Grease Resistant-
Number of Connectors1
Primary Connector Type-
Cable Jacket MaterialPVC
About the manufacturer
Powermatic Associates is an authorized Banner distributor, proud to offer an extensive range of Banner's innovative products and solutions. Banner Engineering is a renowned manufacturer specializing in industrial automation, known for their cutting-edge sensor technology, machine safety solutions, wireless connectivity, and LED lighting systems. With a precision focus on delivering high-quality eq...
Recently viewed products
Relevant products
FAQ
What is the price of MQDC-406RA?
Purchase the MQDC-406RA from Powermatic Associates at the price of $30.00. Order today.
Out if stock but available for backorder.
Cordset: Single Ended M12; 4-pin Right-Angle Female; 2 m (6.56 ft) 4x22 Black PVC Jacket; Nickel-Plated Brass Coupling Nut
