MQDEC-401SS-PUR Banner Cordsets

Name: MQDEC-401SS-PUR
Brand: Banner
Price: 50 USD
Availability: InStock

MQDEC-401SS-PUR on Powermatic Associates

Part#:MQDEC-401SS-PUR

Alt. Part#:81295

Manufacturer:Banner

Category:Cordsets

Product Lifecycle:Active

Only 1 left in stock. Order Now!

May 20, 2026

Product description

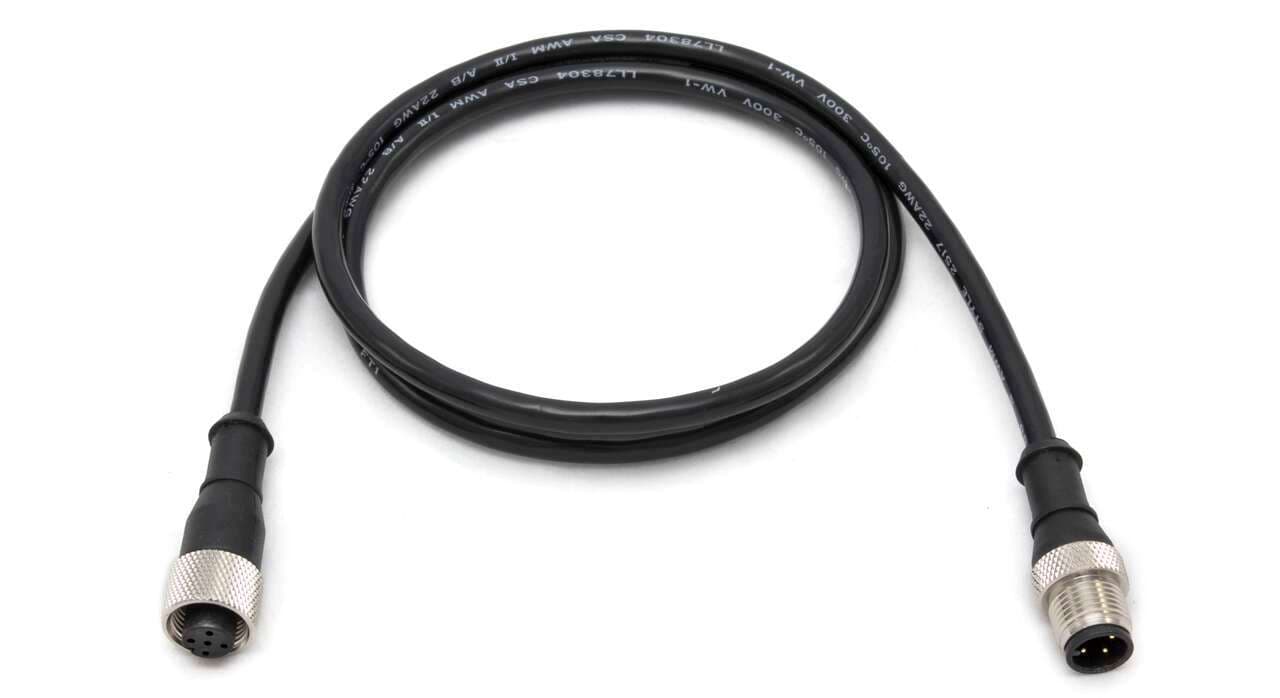

Cordset: Double Ended M12; 4-pin Straight Female; 4-pin Straight Male; 0.3 m 4x22 Black PUR Jacket; Nickel-Plated Brass Coupling Nuts

Product Details

Weight
45.3592 g
Country Of Origin
US
Minimum Temp. (°C)
-40
Trunk Length (m)
No Trunk
IP Rating
IP67
Secondary AWG
22
Number of Contacts
4
Coupling Material/Color
Nickel Plated Brass
Primary AWG
22
Shield/No Shield
No Shield
Primary Gender
Female
Feature: Hazardous Area
No
Current Rating (A)
4.0
Secondary Orientation
Straight
Cordset Length (m)
0.3
Primary Coupling Method
M12 Single Key
Secondary Gender
Male
Number of Connectors
2
Maximum Temp. (°C)
105
Secondary Connector Type
EURO

Outside Cable Diameter (mm)

4.1

Primary Connector Type

EURO

Oil/Grease Resistant

Yes

Cable Jacket Color

Black

Connector Body Material/Color

PUR Black

Primary Orientation

Straight

Secondary Number of Conductors

Cable Jacket Material

PUR

Voltage Rating (V)

250 V ac/dc

Primary Number of Conductors

Secondary Coupling Method

M12 Single Key

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of MQDEC-401SS-PUR on Powermatic Associates is $50.00. Order now.

About the product

Banner Engineering MQDEC-401SS-PUR is a pre-assembled cable/cordset designed for various automation applications. It features a double-ended design with a 5-pin Euro-style M12 female connector and a 4-pin Euro-style M12 male connector. The cable has a diameter of 4.1mm and is 300mm in length. It is constructed with a chrome-plated brass coupling nut and a polyurethane (PUR) cable with black sheathing, offering resistance to oil and grease. This model is rated for a voltage of 250Vac and operates within an ambient air temperature range of -40 to +105°C. It is also designed to meet the IP67 degree of protection, ensuring durability in challenging environments.

$50.00

Your price can be lower.
Log in or Create account to check your discount

Stock:

Select Qty:

$50.00

$50.00 each

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
