MQDC-506-USB Banner Cordsets
Product Details
- Weight 122.46984 g
- Country Of Origin CN
- Cable Jacket Color Black
- Current Rating (A) 0.75
- Secondary Connector Type USB-A
- Number of Connectors 5
- Maximum Temp. (°C) 80
- Primary Number of Conductors 5
- Communicates to Lighting and Indicators Yes
- Trunk Length (m) No Trunk
- IP Rating IP67
- Secondary Number of Conductors 5
- Connector Body Material/Color PVC Black
- Voltage Rating (V) 5 V dc
- Secondary Gender Male
- Outside Cable Diameter (mm) 5.9
- Primary Coupling Method M12 Single Key
- Feature: Hazardous Area No
- Shield/No Shield No Shield
- Minimum Temp. (°C) -40
- Secondary Coupling Method USB
- Cable Jacket Material PVC
- Primary Gender Female
- Secondary Orientation Straight
- Coupling Material/Color Nylon/NPB
- Primary AWG 22
- Cordset Length (m) 2.0
- Primary Connector Type EURO
- Secondary AWG 28
- Primary Orientation Straight
- Oil/Grease Resistant No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of MQDC-506-USB on Powermatic Associates is $173.00. Order now.
About the product

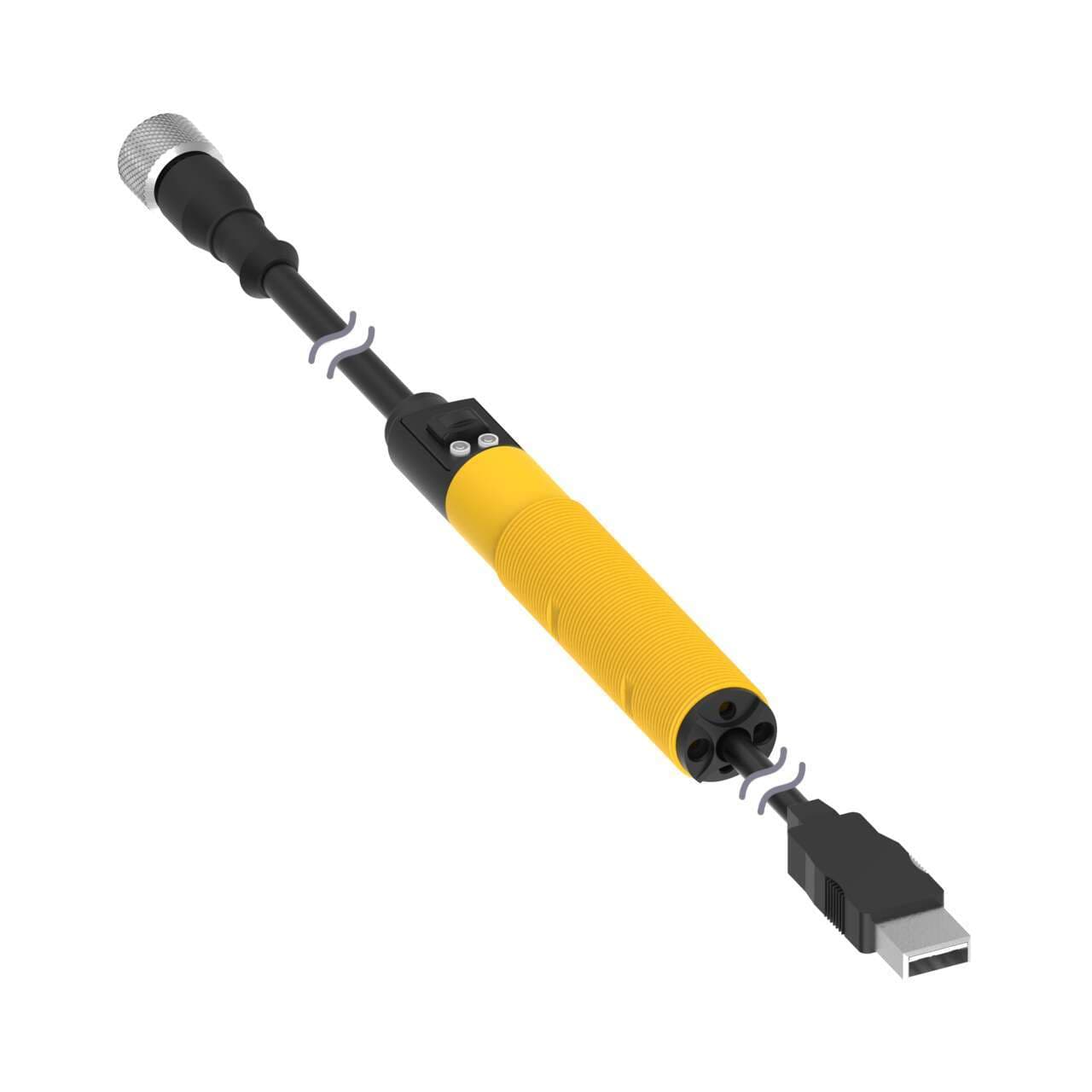

Banner Engineering MQDC-506-USB is a pre-assembled cable/cordset designed for various automation applications. It features a double-ended design with a 5-pin Euro-style M12 female connector on one end and a USB type A connector on the other. The cable has a diameter of 5.9mm and is encased in black PVC sheathing. It is rated for operation in ambient air temperatures ranging from -40 to +80 degrees Celsius and offers a degree of protection rated at IP67, making it suitable for use in environments where dust and water resistance are necessary. The cable operates at a rated voltage of 5Vdc and has a total length of 2 meters.
MQDC-506-USB Related Documents
Similar products from: Banner Cordsets
Manufacturer warranty
MQDC-506-USB Banner
$173.00
Your price can be lower.
Log in or Create account to check your discount
Select Qty:
$173.00
$173.00 each
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare MQDC-506-USB with other Cordsets products
Weight
Country Of Origin
Cable Jacket Color
Current Rating (A)
Secondary Connector Type
Number of Connectors
Maximum Temp. (°C)
Primary Number of Conduct...
Communicates to Lighting ...
Trunk Length (m)
Selected product
MQDC-506-USB
Banner
Converter Cable USB to Banner 1-WIRE; 5-pin M12; For Banner Pro Series; 0.7 m USB Cable; 1 m M12 Cab...
Weight122.46984 g
Country Of OriginCN
Cable Jacket ColorBlack
Current Rating (A)0.75
Secondary Connector TypeUSB-A
Number of Connectors5
Maximum Temp. (°C)80
Primary Number of Conductors5
Communicates to Lighting and IndicatorsYes
Trunk Length (m)No Trunk
LQMAEC-306SS
Banner
Cordset: Double Ended Molex; 3-pin Straight Female; 4-pin Straight Female; 1.83 m 3x18 Black PVC Jac...
Weight136.0776 g
Country Of OriginTW
Cable Jacket ColorBlack
Current Rating (A)-
Secondary Connector Type-
Number of Connectors2
Maximum Temp. (°C)105
Primary Number of Conductors-
Communicates to Lighting and Indicators-
Trunk Length (m)No Trunk
LQMAC-306
Banner
Cordset: Single Ended Molex; 3-pin Straight Female; 1.83 m 3x18 Black PVC Jacket; PVC Black
Weight226.796 g
Country Of OriginTW
Cable Jacket ColorBlack
Current Rating (A)-
Secondary Connector Type-
Number of Connectors1
Maximum Temp. (°C)105
Primary Number of Conductors-
Communicates to Lighting and Indicators-
Trunk Length (m)No Trunk
About the manufacturer
Powermatic Associates is an authorized Banner distributor, proud to offer an extensive range of Banner's innovative products and solutions. Banner Engineering is a renowned manufacturer specializing in industrial automation, known for their cutting-edge sensor technology, machine safety solutions, wireless connectivity, and LED lighting systems. With a precision focus on delivering high-quality eq...
Recently viewed products
Relevant products
FAQ
What is the price of MQDC-506-USB?
Purchase the MQDC-506-USB from Powermatic Associates at the price of $173.00. Order today.
Out if stock but available for backorder.
Converter Cable USB to Banner 1-WIRE; 5-pin M12; For Banner Pro Series; 0.7 m USB Cable; 1 m M12 Cable
