MQDEC-WDSS-4005SS Banner Cordsets
Product Details
- Weight 18.14368 g
- Country Of Origin TW
- Number of Contacts 5
- Secondary Connector Type EURO
- Oil/Grease Resistant No
- Cordset Length (m) 0.15
- Primary Coupling Method M12 Single Key
- Secondary Orientation Straight
- Shield/No Shield No Shield
- Primary Connector Type EURO
- Secondary Coupling Method M12 Single Key
- Trunk Length (m) No Trunk
- Primary Gender Female
- Feature: Hazardous Area No
- Coupling Material/Color 300 Series Stainless
- Number of Connectors 2
- Primary AWG 22
- Voltage Rating (V) 250 V ac/dc
- Connector Body Material/Color PUR Black
- Primary Number of Conductors 5
- Feature: Washdown Rated Yes
- Maximum Temp. (°C) 105
- Primary Orientation Straight
- Cable Jacket Material PVC
- Current Rating (A) 4.0
- Secondary AWG 22
- Outside Cable Diameter (mm) 4.8
- IP Rating IP69
- Secondary Number of Conductors 4
- Cable Jacket Color Black
- Minimum Temp. (°C) -40
- Secondary Gender Male
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of MQDEC-WDSS-4005SS on Powermatic Associates is $103.00. Order now.
About the product

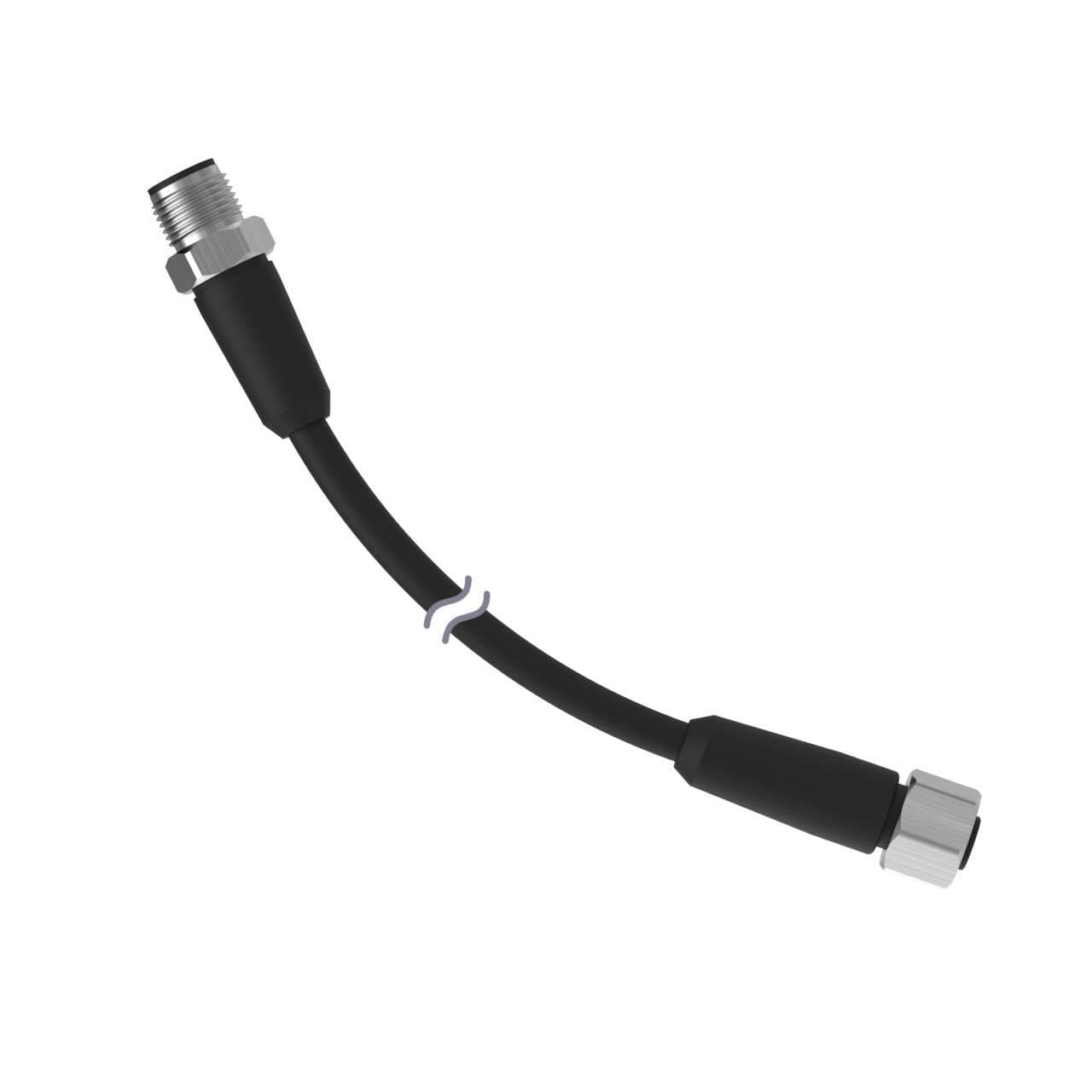

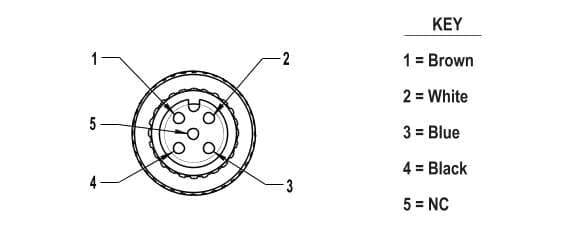

Banner Engineering MQDEC-WDSS-4005SS is a pre-assembled cable/cordset designed for various automation applications. It features a double-ended design with a 4.8mm diameter PVC cable and black sheathing. This cordset is equipped with a 5-pin Euro-style M12 female connector on one end and a 4-pin Euro-style M12 male connector on the other. It is rated for operation in ambient air temperatures ranging from -40 to +105 degrees Celsius and has a degree of protection of IP69K. The cable has a length of 6 inches (150mm) and is rated for a voltage of 250Vac.
