MQDEC2-506 Banner Cordsets
Product Details
- Weight 108.86208 g
- Country Of Origin US
- Outside Cable Diameter (mm) 5.6
- Maximum Temp. (°C) 105
- Primary Orientation Straight
- Oil/Grease Resistant No
- Cable Jacket Material PVC
- IP Rating IP67
- Shield Type Open
- Primary Gender Female
- Number of Connectors 1
- Primary Number of Conductors 5
- Cable Jacket Color Black
- Coupling Material/Color Nickel Plated Brass
- Primary AWG 22
- Cordset Length (m) 1.83
- Current Rating (A) 4.0
- Shield/No Shield Shield
- Voltage Rating (V) 250 V ac/dc
- Number of Contacts 5
- Primary Coupling Method M12 Single Key
- Feature: Hazardous Area No
- Trunk Length (m) No Trunk
- Minimum Temp. (°C) -40
- Connector Body Material/Color PUR Black
- Primary Connector Type EURO
- Secondary Connector Type Flying Leads
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of MQDEC2-506 on Powermatic Associates is $38.00. Order now.
About the product

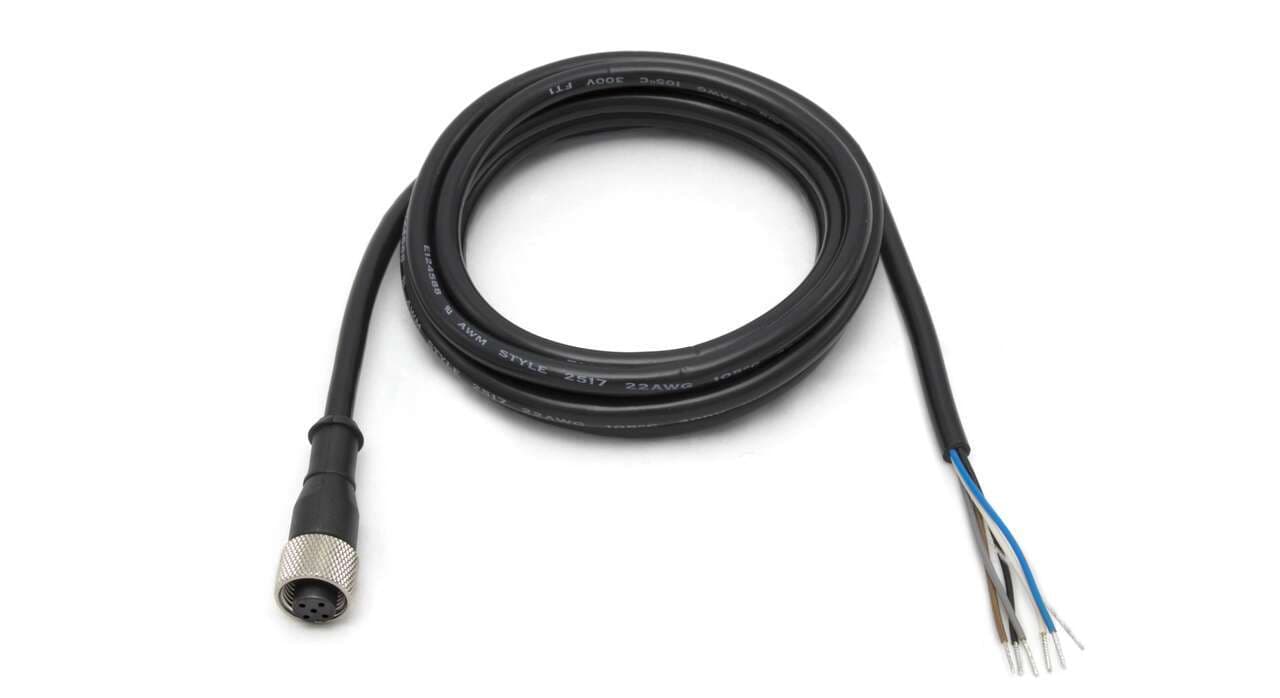

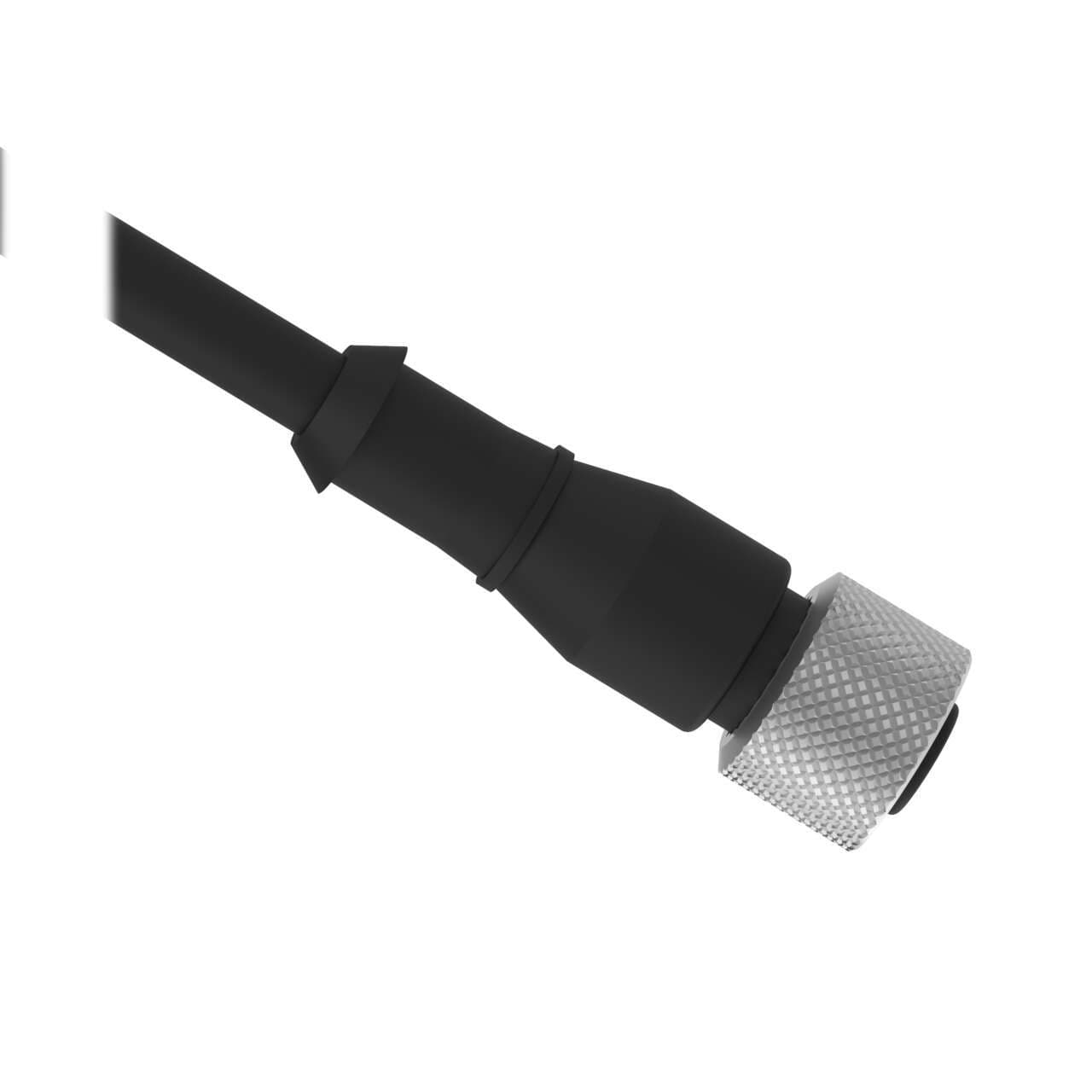

Banner Engineering MQDEC2-506 is a pre-assembled cable/cordset designed for various automation applications. It features a 5-pin Euro-style M12 female connector with bare end flying leads and a shield single-ended design. The cable has a diameter of 5.6mm and is encased in black sheathing made from PVC, ensuring durability and protection against environmental factors. The chrome-plated brass coupling nut enhances the cable's robustness. With an ambient air temperature operation range of -40 to +105°C, this cable is suitable for a wide range of industrial environments. It offers a degree of protection rated at IP67, making it resistant to dust and water ingress. The MQDEC2-506 has a length of 6.5ft (2m) and is rated for a voltage of 250Vac, making it a versatile choice for connecting various devices within automation systems.
Similar products from: Banner Cordsets
Manufacturer warranty
MQDEC2-506 Banner
$38.00
Your price can be lower.
Log in or Create account to check your discount
Select Qty:
$38.00
$38.00 each
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare MQDEC2-506 with other Cordsets products
Weight
Country Of Origin
Outside Cable Diameter (m...
Maximum Temp. (°C)
Primary Orientation
Oil/Grease Resistant
Cable Jacket Material
IP Rating
Shield Type
Primary Gender
Selected product
MQDEC2-506
Banner
Cordset: Single Ended M12; 5-pin Straight Female Connector; 2 m (6.56 ft) 5x22 Shielded Black PVC Ja...
Weight108.86208 g
Country Of OriginUS
Outside Cable Diameter (mm)5.6
Maximum Temp. (°C)105
Primary OrientationStraight
Oil/Grease ResistantNo
Cable Jacket MaterialPVC
IP RatingIP67
Shield TypeOpen
Primary GenderFemale
QDE-860D
Banner
Cordset: Single Ended M12; 8-pin Straight Female; 18.29 m 8x22 Yellow PVC Jacket; Nickel-Plated Bras...
Weight1088.6208 g
Country Of OriginTW
Outside Cable Diameter (mm)6
Maximum Temp. (°C)105
Primary Orientation-
Oil/Grease Resistant-
Cable Jacket MaterialPVC
IP Rating-
Shield Type-
Primary Gender-
MQDEC-401SS-PUR
Banner
Cordset: Double Ended M12; 4-pin Straight Female; 4-pin Straight Male; 0.3 m 4x22 Black PUR Jacket; ...
Weight45.3592 g
Country Of OriginUS
Outside Cable Diameter (mm)4.1
Maximum Temp. (°C)105
Primary Orientation-
Oil/Grease Resistant-
Cable Jacket MaterialPUR
IP Rating-
Shield Type-
Primary Gender-
About the manufacturer
Powermatic Associates is an authorized Banner distributor, proud to offer an extensive range of Banner's innovative products and solutions. Banner Engineering is a renowned manufacturer specializing in industrial automation, known for their cutting-edge sensor technology, machine safety solutions, wireless connectivity, and LED lighting systems. With a precision focus on delivering high-quality eq...
Recently viewed products
Relevant products
FAQ
What is the price of MQDEC2-506?
Purchase the MQDEC2-506 from Powermatic Associates at the price of $38.00. Order today.
Out if stock but available for backorder.
Cordset: Single Ended M12; 5-pin Straight Female Connector; 2 m (6.56 ft) 5x22 Shielded Black PVC Jacket; Nickel-Plated Brass Coupling Nut
