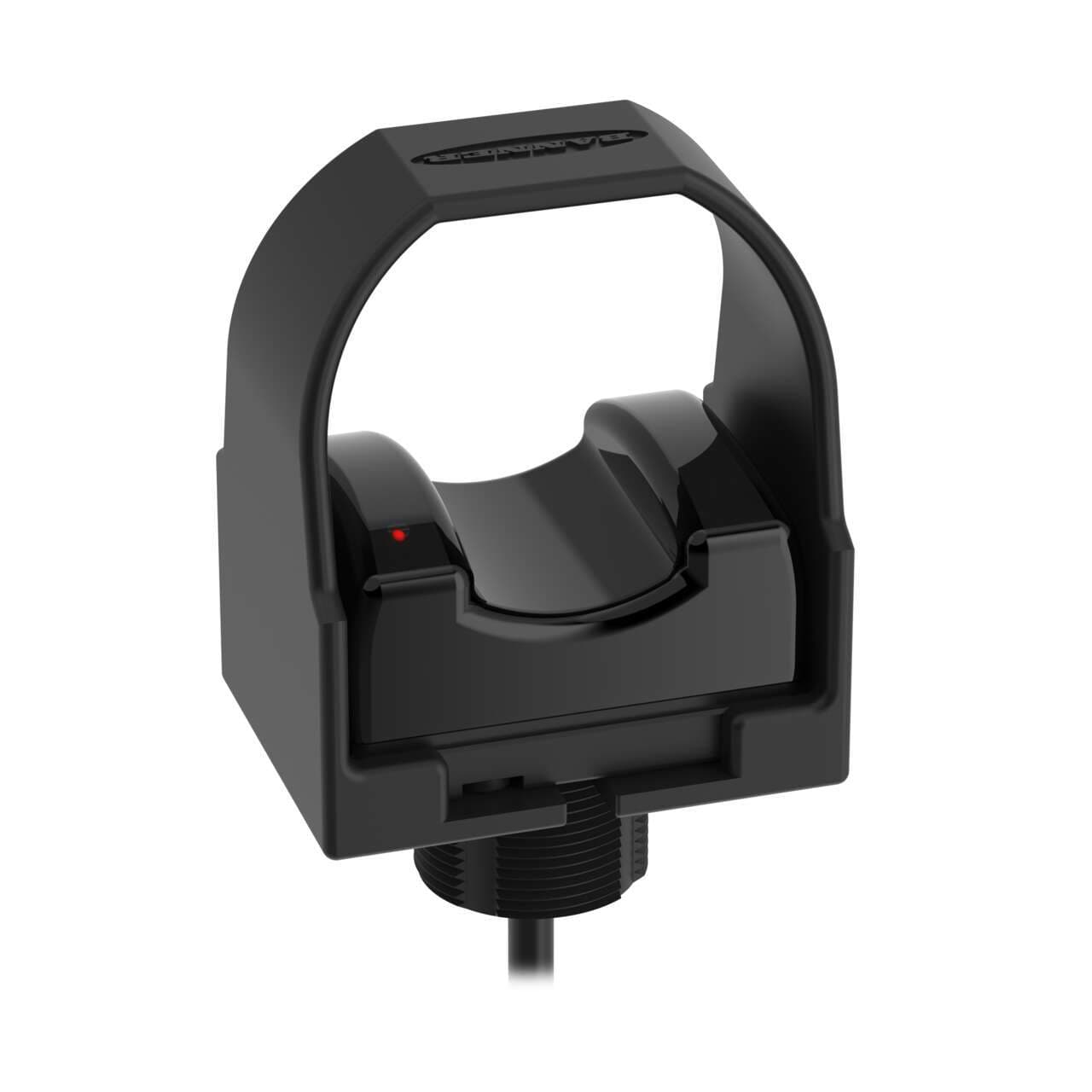

OTBVP6 Banner Sensor Accessories
Part#:OTBVP6
Alt. Part#:28589
Manufacturer:Banner
Category:Sensor Accessories
Product Lifecycle:Active
Product description
OTB Series: Momentary Action Touch Button w/Black F.C.; Input: 10-30 V dc; Upper Housing: Polysulfone; Output: Complementary PNP; 2 m (6.5 ft) Integral Cable
Product Details
- Weight 296.195576 g
- Country Of Origin MX
- Mounting Thread M30 x 1.5
- Max Output Response Time (ms) 100
- Max Op. Temperature (°C) 50
- Feature: Audible No
- Non-Illuminated Yes
- Max Input Response Time (ms) 100
- Min Op. Temperature (°C) -20
- Modbus RTU No
- Housing Style Base Mount - Saddle
- Connection Cable
- Environmental Rating IP66
- Feature: Hazardous Area No
- Power DC
- Product Size (mm) Other
- Supply Voltage 10-30 V dc
- Physical Dimensions (LxWxH or DxH mm) 59.9 x 43.2 x 48.0
- Power Source DC
- Primary Housing Material Thermoplastic Polysulfone
- Operation Normally Open/Normally Closed
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Actuation Yes
- Output Type PNP
- Number of Beams 1
- Field Cover Color Black
- Feature: Chemical Resistant No
- Feature: Quick Disconnect No
- IO Link No
- Activation Function Optical
- Input Type PNP
- Primary Housing Color Black
- Wireless No
- Secondary Material Thermoplastic
- Sensing Mode (General) Single Point Optical
- Number of Input Pins/Conductors 4
- NEMA Type and UL Type Rating NEMA 1, 3, 4, 4X, 12, 13
- Button Operation Momentary
- Pro-Editor Compatible (Discrete) No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of OTBVP6 on Powermatic Associates is $158.00. Order now.
About the product
Banner Engineering OTBVP6 is a photo-electric optical touch-activated button designed for versatile mounting options, including surface or base flush with a 30mm hole. It operates within an ambient air temperature range of -20°C to +50°C and features a black field cover for its design. This part is pre-wired with a 2m / 6.5ft 4-wire cable that terminates with bare end flying leads, ensuring easy integration into various systems. It boasts a high degree of protection rated at IP66, NEMA 1, NEMA 3, NEMA 4, NEMA 4X, NEMA 12, and NEMA 13, suitable for demanding environments. The OTBVP6 requires a supply voltage of 10Vdc-30Vdc, with a nominal range of 12Vdc-24Vdc, and is constructed from a polysulfone upper housing and a thermoplastic polyester base, ensuring durability. Its saddle/yoke-shaped body is finished in black, complementing a wide range of equipment aesthetics. The operating mode is momentary, offering normally open (NO) or normally closed (NC) configurations, alongside a single digital output (10-30Vdc; PNP) for touch activation, providing flexibility in application use.
