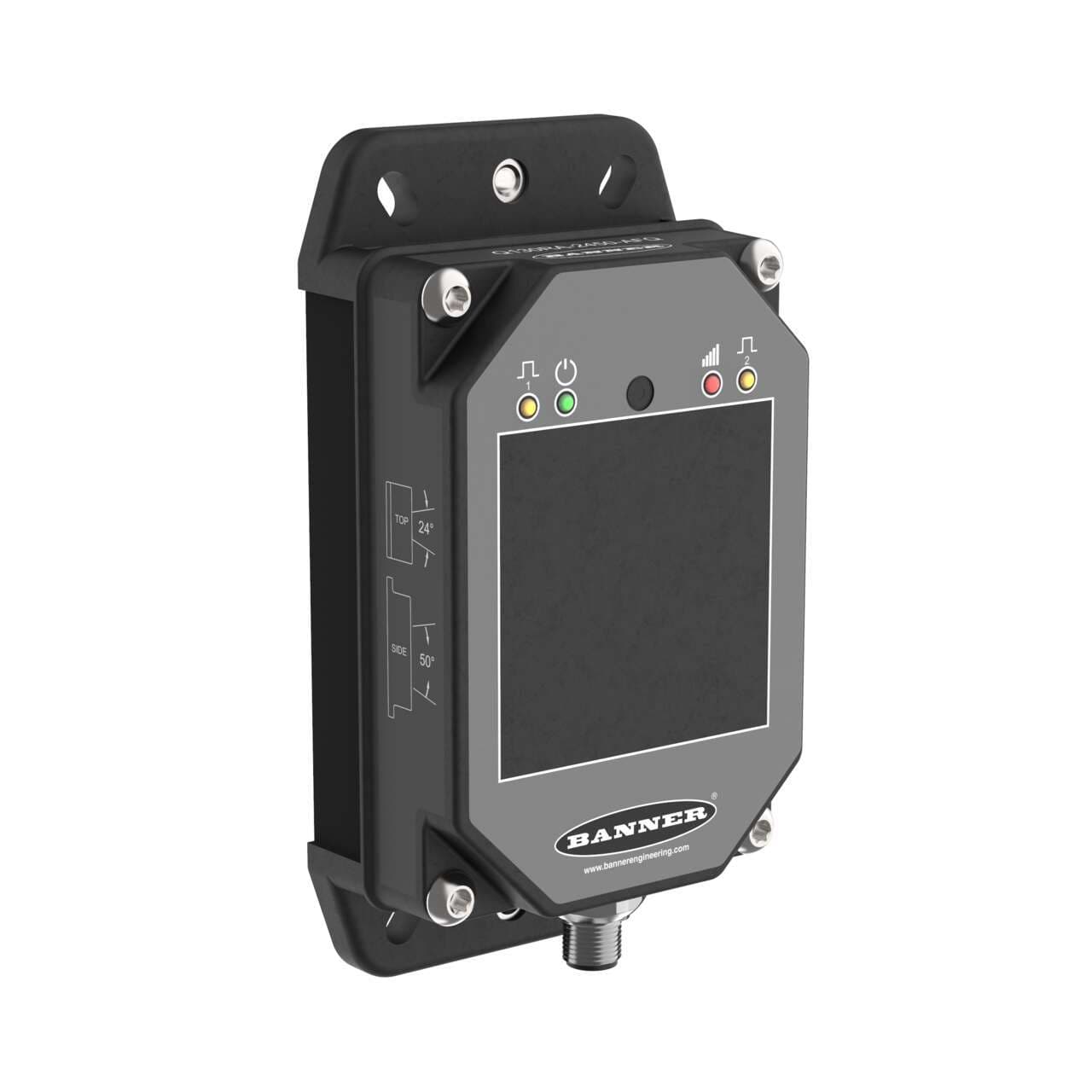

Q130RA-2450-AFQ Banner Optical Sensors
Part#:Q130RA-2450-AFQ
Alt. Part#:806646
Manufacturer:Banner
Category:Optical Sensors
Product Lifecycle:Active
Product description
R-GAGE Series Radar Sensor; Bipolar Outputs; Range 1-40 m Single Zone; Response Speed 50 ms; 5-pin M12 Integral QD
Product Details
- Weight 442.6604328 g
- Country Of Origin US
- Device Type Sensor
- Operating Frequency 24 GHz
- Radar Beam Pattern (H x V °) 24 x 50
- Output Saturation Voltage PNP Outputs 3.5 V
- Minimum Response Time (ms) 50
- RS-485 No
- Sensing Mode (General) Proximity
- Connection Integral QD
- Output Saturation Voltage NPN Outputs 3.5 V
- Storage Temperature (°C) -40 to 65
- PC Configurable Yes
- Max Sensing Distance (mm) 40000
- Mechanical Shock IEC 60068-2-27
- Max Operating Temperature (°C) 65
- Feature: Chemical Resistant No
- Primary Housing Material ABS/Polycarbonate
- Minimum Sensing Distance (mm) 1000
- Max Discrete (Switched) Output (mA) 50
- Feature: Timing (Hold/Delay) Yes
- Profibus No
- Power DC
- Quick Disconnect Type M12 (Euro)
- Vibration IEC 60068-2-6
- Min Operating Temperature (°C) -40
- Wireless No
- Sensing Beam Radar
- Housing Style Rectangular
- Power Supply 12-30 V dc
- IO Link No
- Cert: US Yes
- Input/Output Discrete
- Adjustments Software
- Discrete (Switched) Outputs Bipolar (NPN & PNP)
- IP Rating IP67
- RS-232 No
- Cert: European Yes
- Indicator LED(s)
- Delay at Power-up (ms) 3000
- Output Protection Protected against short circuit
- Power/Current Consumption (exclusive of load) < 50 mA
- PROFINET No
- Cert: China Yes
- Sensing Mode (Detailed) Time of Flight
- Max Measurement Range >20 m - <=50 m
- Number of Pins 5
- Supply Protection Circuitry Protected against reverse polarity and transient overvoltages
- SSI No
- Common Ethernet Protocol No
- 1-wire Serial Interface No
- Cert: Australia/New Zealand Yes
- RS-422 No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q130RA-2450-AFQ on Powermatic Associates is $1,104.00. Order now.
About the product
Banner Engineering Q130RA-2450-AFQ is a narrow-beam adjustable-field radar sensor, part of the Q130R series, designed with a time-of-flight system and a PC GUI compatible in the US, Europe, UK, Australia, New Zealand, China, and Japan with Telecom approval. It operates within an ambient air temperature range of -40 to +65°C and is housed in an ABS / Polycarbonate (PC) material, ensuring durability. This sensor features a pre-equipped 5-pin Euro-style M12 connector for connectivity and offers a supply voltage range of 12Vdc to 30Vdc, with 24Vdc nominal. It operates on a 24.050GHz to 24.250GHz (ISM band) transmission frequency, capable of sensing distances from 1 to 40 meters. The Q130RA-2450-AFQ is equipped with one digital output (PNP/NPN transistor) and includes protection functions against reverse polarity and short-circuit. Its design is rectangular, and it boasts an IP67 degree of protection, making it suitable for various industrial applications.
