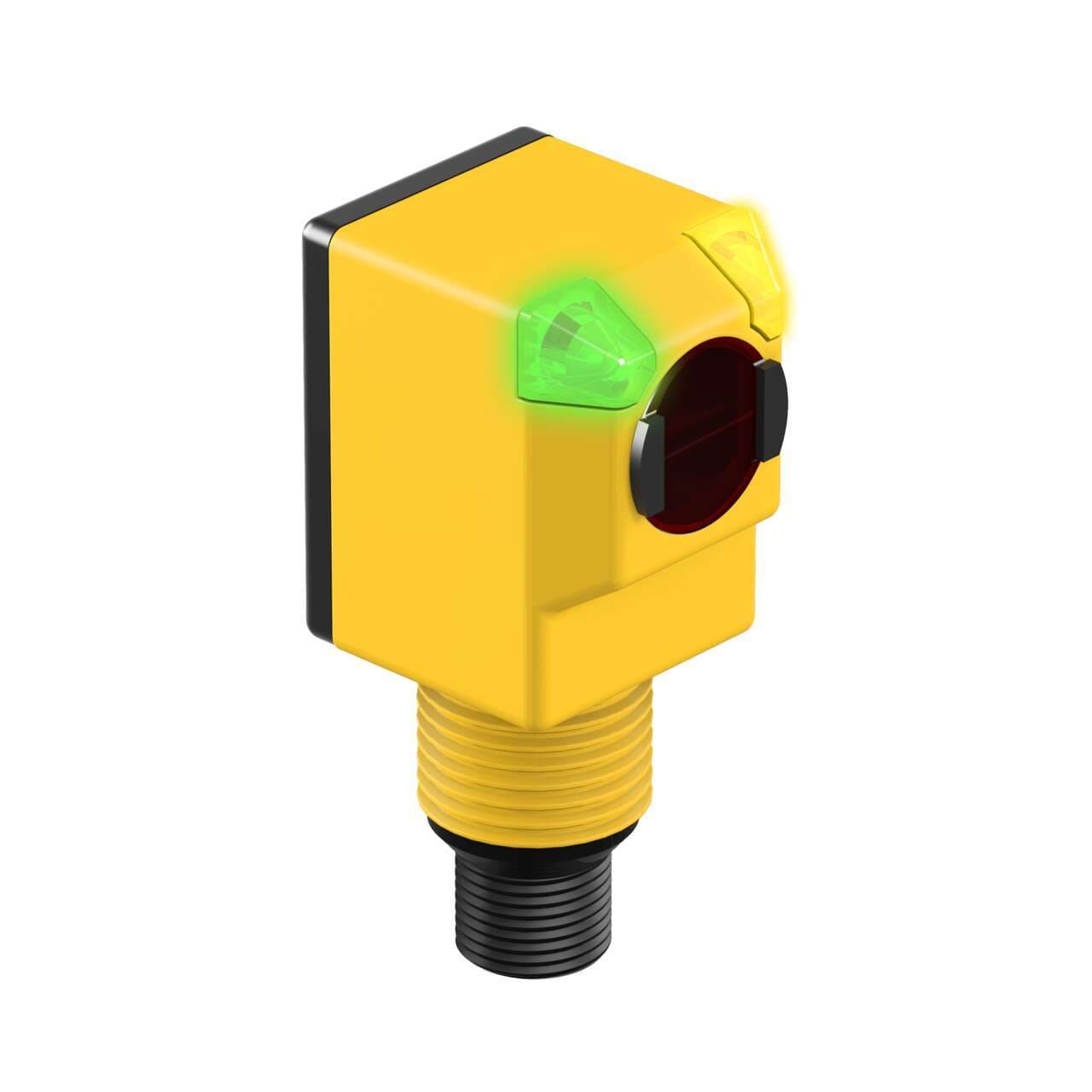

Q25SP6FF100Q Banner Proximity Sensors
Part#:Q25SP6FF100Q
Alt. Part#:31941
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
EZ-BEAM Q25 Series: Fixed Field; Range: 100 mm; Input: 10-30 V dc; Output: Complementary PNP; 4-pin M12 Integral QD
Product Details
- Weight 64.863656 g
- Country Of Origin US
- Primary brand Banner Engineering
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Design background suppression system
- Material thermoplastic housing Acrylic lns.
- Product series / family name EZ-BEAM series
- Wavelength 880 nm
- Functions Fixed-field photo-electric sensor green LED (power ON) amber LED (output state)
- Response time 3ms / 0.003 s
- Compliant with standard(s) cULus cCSAus CE
- Ambient air temperature for operation -40...+70 °C
- Connection type Pre-equipped with 4-pin Euro-style M12 connector
- Sub-range name Q25 DC series
- Operating mode Light-ON Dark-ON
- Light Color Infrared (IR)
- Shape Rectangular
- Degree of protection IP69K NEMA 6P
- Main function Sensor (Photo-electric)
- Sensing distance 100mm
- Thread size M18
- Order code / Manufacturer SKU 31941
- Digital outputs 1 x digital output (PNP transistor)
- Power Supply/Supply Voltage 10-30 V dc
- Power DC
- Special Feature: Remote Teach No
- Feature: Audible No
- Primary Housing Material Thermoplastic
- Number of Pins 4
- Delay at Power-up (ms) 100
- DeviceNet No
- Sensing Mode (Detailed) Background Suppression (Fixed)
- Quick Disconnect Type M12 (Euro)
- Repeatability (µs) 750
- Feature: Timing (Hold/Delay) No
- Min Op. Temp. (°C) -40
- Lens Material Acrylic
- Feature: Chemical Resistant Yes
- Operation Light/Dark Operate
- Adjustments N/A
- IO Link No
- Input/Output Discrete
- Output response time (ms) 3
- Indicator LEDs
- Feature: Encapsulated Yes
- Sensing Mode (General) Proximity
- Connection Integral QD
- Special Feature: Intrinsically Safe No
- Feature: Washdown Rated Yes
- Opposed Mode Emitter/Receiver N/A
- Housing Style Rectangular
- Special Feature: Water Detection No
- Barrel Diameter (mm) 18
- Feature: Hazardous Area No
- Max Sensing Distance (mm) 100
- Max Op. Temp. (°C) 70
- NEMA Rating NEMA 6P
- Feature: Ecolab Certified Yes
- Sensing Beam Infrared LED
- Outputs PNP
- IP Rating IP69
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Health/ Marginal Signal Output Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q25SP6FF100Q on Powermatic Associates is $155.00. Order now.
About the product
Banner Engineering Q25SP6FF100Q is a fixed-field photo-electric sensor designed for precise detection tasks. It features an M18 threaded mount for secure installation and operates within an ambient air temperature range of -40 to +70°C. This sensor is part of the Q25 DC series and incorporates a background suppression system to enhance detection accuracy. It comes pre-equipped with a 4-pin Euro-style M12 connector for straightforward connectivity. The Q25SP6FF100Q offers a high degree of protection, rated at IP69K NEMA 6P, making it suitable for demanding environments. It operates on a supply voltage of 10Vdc-30Vdc, with nominal values of 12Vdc and 24Vdc. The sensor's rectangular shape is constructed from a thermoplastic housing with an acrylic lens, ensuring durability. It has a sensing distance of 100mm and utilizes infrared light with a wavelength of 880 nm for detection. This model supports both Light-ON and Dark-ON operating modes and includes a digital output (PNP transistor; complementary NO/NC) with a rapid response time of 3ms / 0.003 s.
