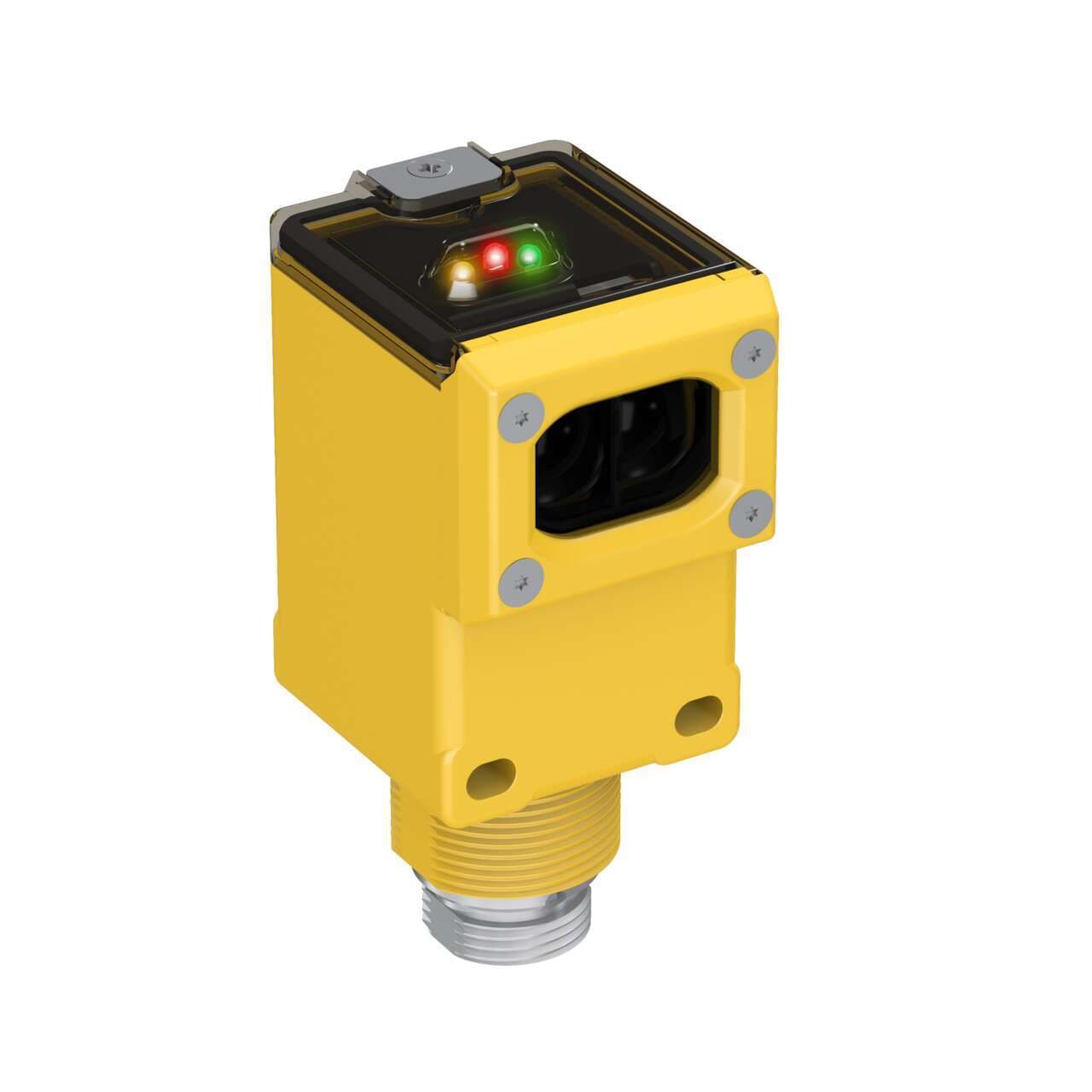

Q45VR2DXQ Banner Proximity Sensors
Part#:Q45VR2DXQ
Alt. Part#:47139
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
Q45 Series: High-power Diffuse; Range: 3 m; Input: 90-250 V ac; Output: SPDT Electromechanical Relay; 5-pin Mini Integral QD
Product Details
- Weight 263.08336 g
- Country Of Origin US
- Wavelength 880 nm
- Mounting mode Threaded mount
- Response time 15ms / 0.015 s
- Sub-range name Q45VR2
- Sensing distance 3m
- Connection type Pre-equipped with 5-pin 7/8" Mini connector
- Operating mode Light-ON Dark-ON
- Order code / Manufacturer SKU 47139
- Product series / family name Q series
- Light Color Infrared (IR)
- Material thermoplastic housing Acrylic lns.
- Main function Sensor (Photo-electric)
- Design diffuse mode
- Functions Photo-electric sensor green LED (power ON) red LED (signal) amber LED (output state) potentiometer adjustment
- Thread size M30
- Digital outputs 1 x digital output (SPDT contact type)
- Ambient air temperature for operation -40...+70 °C
- Primary brand Banner Engineering
- Supply voltage (AC) 90Vac-250Vac (200Vac / 220Vac / 240Vac nom.)
- Shape Rectangular
- Degree of protection IP67 NEMA 6P
- Compliant with standard(s) cURus CCC cCSAus CE
- Power AC
- Power Supply/Supply Voltage 90-250 V ac
- Special Feature: Water Detection No
- Barrel Diameter (mm) 30
- Sensing Mode (Detailed) Diffuse
- Connection Integral QD
- IP Rating IP67
- Feature: Encapsulated No
- Housing Style Rectangular
- Special Feature: Remote Teach No
- Number of Pins 5
- Feature: Audible No
- Sensing Mode (General) Proximity
- Special Feature: Intrinsically Safe No
- NEMA Rating NEMA 6P
- IO Link No
- Outputs SPDT e/m Relay
- Output response time (ms) 15
- Lens Material Acrylic
- DeviceNet No
- Max Sensing Distance (mm) 3000
- Min Op. Temp. (°C) -40
- Feature: Timing (Hold/Delay) Yes
- Indicator LEDs
- Primary Housing Material Thermoplastic
- Operation Light/Dark Operate
- Adjustments Potentiometer
- Delay at Power-up (ms) 100
- Feature: Hazardous Area No
- Input/Output E/M Relay
- Max Op. Temp. (°C) 70
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Chemical Resistant No
- Sensing Beam Infrared LED
- Quick Disconnect Type 7/8 in. (Mini)
- Repeatability (µs) 500
- Opposed Mode Emitter/Receiver N/A
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q45VR2DXQ on Powermatic Associates is $155.00. Order now.
About the product
Banner Engineering Q45VR2DXQ is a photo-electric sensor designed for versatile applications, featuring a diffuse mode with potentiometer adjustment. This sensor is equipped for M30 threaded mount installation and operates within an ambient air temperature range of -40 to +70°C. It comes pre-equipped with a 5-pin 7/8" mini connector for connectivity and requires a supply voltage of 90Vac-250Vac, supporting nominal values of 200Vac, 220Vac, and 240Vac. Part of the Q45VR2 series, it offers a degree of protection rated at IP67 NEMA 6P, ensuring durability in various environments. The sensor's rectangular shape is constructed from a thermoplastic housing with an acrylic lens. It has a sensing distance of up to 3m and utilizes infrared light with a wavelength of 880 nm. The operating modes include Light-ON and Dark-ON, with a digital output of 1 x SPDT relay contact and a response time of 15ms or 0.015 seconds.
