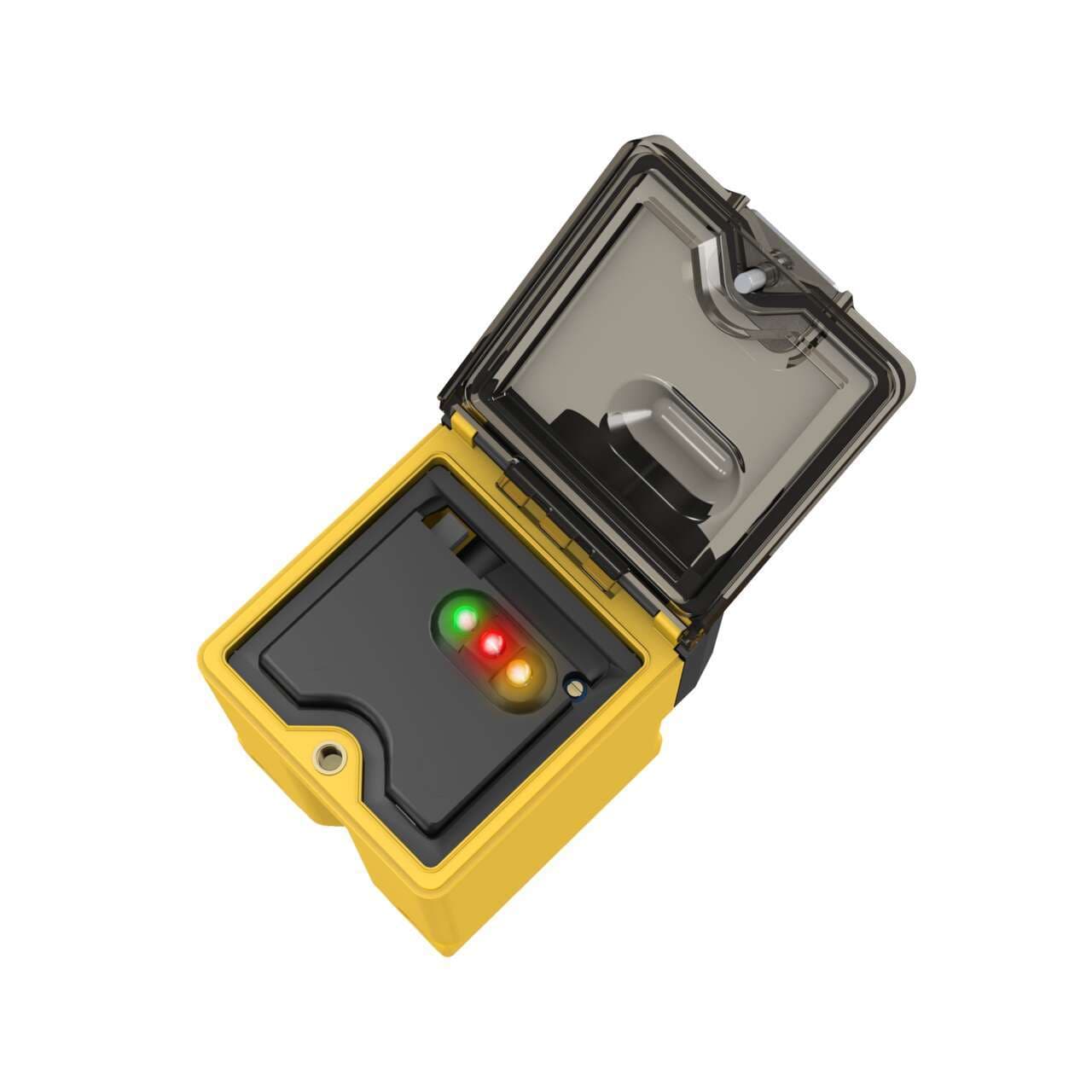

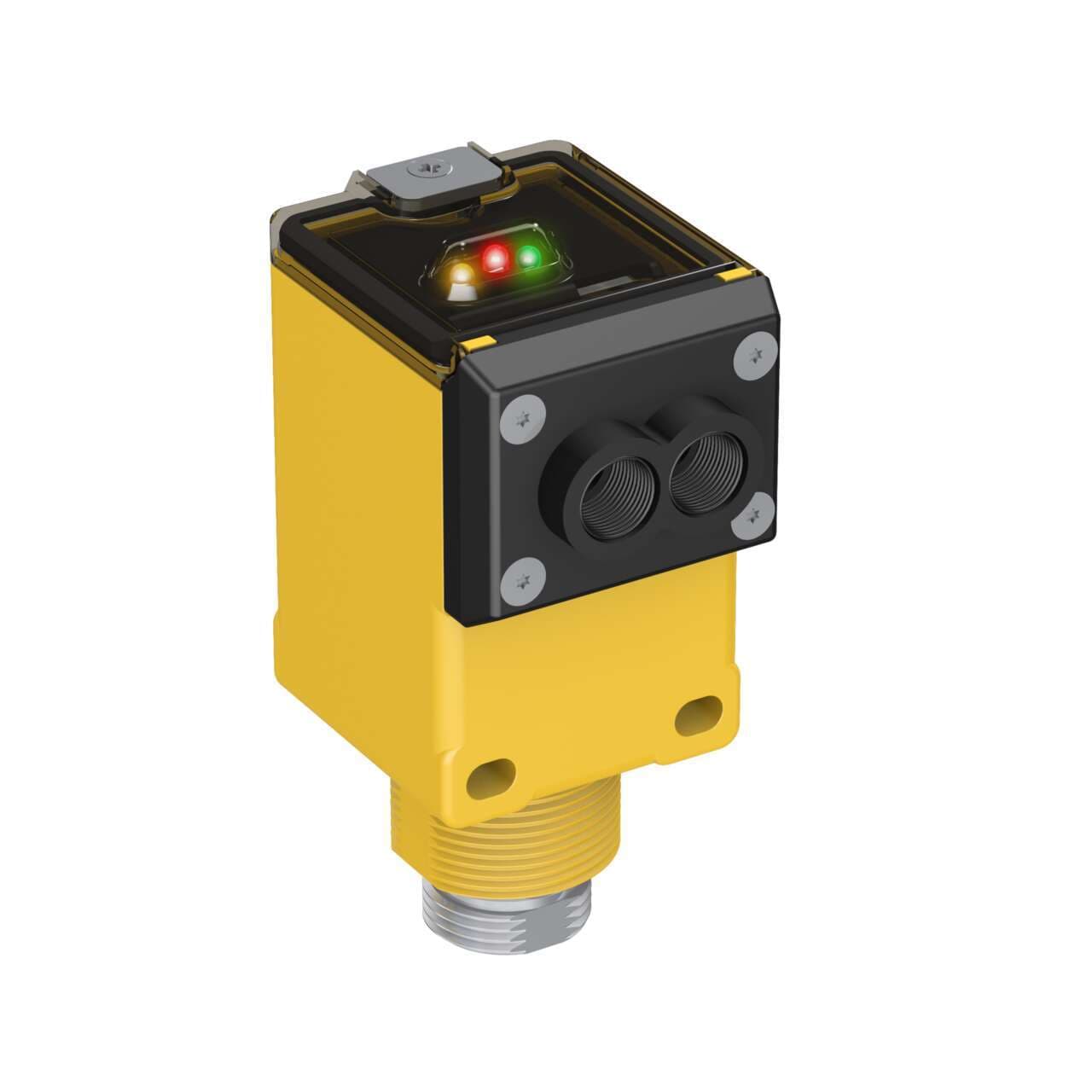

Q45VR3FQ Banner Proximity Sensors
Part#:Q45VR3FQ
Alt. Part#:54311
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
Q45 Series: Infrared Glass Fiber Optic; Range: Depends on Fiber; Input: 12-250 V dc / 24-250 V ac; Output: SPDT Electromechanical Relay; 5-pin Mini Integral QD
Product Details
- Weight 281.22704 g
- Country Of Origin US
- Product series / family name Q series
- Wavelength 880 nm
- Digital outputs 1 x digital output (SPDT contact type)
- Mounting mode Threaded mount
- Supply voltage (AC) 24Vac-250Vac (200Vac / 220Vac / 240Vac nom.)
- Light Color Infrared (IR)
- Degree of protection IP67 NEMA 6P
- Compliant with standard(s) cURus CCC cCSAus CE
- Main function Sensor (Photo-electric)
- Supply voltage (DC) 12Vdc-250Vdc (24Vdc / 48Vdc / 120Vdc nom.)
- Thread size M30
- Ambient air temperature for operation -25...+55 °C
- Sub-range name Q45VR3
- Functions Photo-electric fiber optic sensor green LED (power ON) red LED (signal) amber LED (output state) potentiometer adjustment
- Connection type Pre-equipped with 5-pin 7/8" Mini connector
- Response time 15ms / 0.015 s
- Primary brand Banner Engineering
- Shape Rectangular
- Material thermoplastic housing Glass fiber
- Order code / Manufacturer SKU 54311
- Fiber Type Glass Only
- Repeatability (µs) 500
- Quick Disconnect Type 7/8 in. (Mini)
- Indicator Display Type Indicator LEDs
- Housing Style Rectangular
- NEMA Rating NEMA 6P
- Max Op. Temperature (°C) 55
- Feature: Hazardous Area No
- Color LED - Amplifiers Infrared
- Number of Pins 5
- Power Supply/Supply Voltage 12-250 V dc or 24-250 V ac
- Housing Material Thermoplastic
- Primary Housing Material Thermoplastic
- Output Type (Specific) Single Discrete
- Intrinsically Safe No
- Special Feature: Bussable Power No
- Connection Integral QD
- Min Op. Temperature (°C) -25
- Minimum response time (ms) 15
- IO Link No
- Power AC/DC Universal
- IP Rating IP67
- Output SPDT e/m Relay
- Max Op. Relative Humidity (%) 90% @ 50°C
- Adjustments Potentiometer
- Feature: Audible No
- Input/Output Discrete
- Special Feature: Remote Teach No
- Feature: Timing (Hold/Delay) Yes
- Delay at Power-up (ms) 100
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q45VR3FQ on Powermatic Associates is $159.00. Order now.
About the product
Banner Engineering Q45VR3FQ is a photo-electric fiber optic sensor designed for versatile applications, featuring an M30 threaded mount for secure installation. It operates within an ambient air temperature range of -25 to +55°C and is equipped with a potentiometer for easy adjustment. The sensor comes pre-equipped with a 5-pin 7/8" mini connector for straightforward connectivity. It supports a wide supply voltage range, accepting 24Vac-250Vac (with 200Vac, 220Vac, and 240Vac as nominal values) and 12Vdc-250Vdc (with 24Vdc, 48Vdc, and 120Vdc as nominal values), catering to diverse power supply requirements. Part of the Q45VR3 series, this sensor boasts an IP67 NEMA 6P degree of protection, ensuring durability in harsh environments. Its rectangular shape is constructed from a thermoplastic housing with glass fiber, designed for longevity. The sensor emits an infrared light with a wavelength of 880 nm and features a single digital output (SPDT relay contact) with a response time of 15ms (0.015 seconds), facilitating rapid detection tasks.
