QS18APWLVC1 W/30 Banner Proximity Sensors

QS18APWLVC1 W/30 on Powermatic Associates
Banner
  • QS18APWLVC1 W/30
  • QS18APWLVC1 W/30

Part#:QS18APWLVC1 W/30

Alt. Part#:81378

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

WORLD-BEAM QS18 Series: Non-Polarized Retro; Range: 6.5 m; Input: 20-140 V ac/dc; Output: Light Operate Solid-State P-MOSFET; 9 m (30 ft) Cable

Product Details

  • Weight
    0 g
  • Country Of Origin
    MX
  • Power Supply/Supply Voltage
    20-140 V ac/dc
  • Input/Output
    Discrete
  • Min Op. Temp. (°C)
    -25
  • Max Sensing Distance (mm)
    6500
  • Max Op. Temp. (°C)
    70
  • NEMA Rating
    NEMA 6
  • Quick Disconnect Type
    No QD
  • Special Feature: Water Detection
    No
  • Max Op. Relative Humidity [%]
    95% @ 55°C
  • Feature: Hazardous Area
    No
  • Sensing Beam
    Visible Red LED
  • Connection
    Cable
  • Repeatability (µs)
    1500
  • Feature: Chemical Resistant
    No
  • Sensing Mode (General)
    Retroreflective
  • Operation
    Light Operate
  • Number of Pins
    3
  • Feature: Audible
    No
  • Sensing Mode (Detailed)
    Non-Polarized
  • Primary Housing Material
    ABS
  • Special Feature: Intrinsically Safe
    No
  • Lens Material
    PMMA
  • Outputs
    P-MOSFET (Sourcing)
  • Special Feature: Remote Teach
    No
  • Sensing Beam Wavelength
    630
  • Adjustments
    Potentiometer
  • DeviceNet
    No
  • Cable Length (m)
    9
  • Power
    AC/DC Universal
  • Delay at Power-up (ms)
    100ms dc, 300ms ac
  • Indicator
    LEDs
  • Housing Style
    Rectangular w/M18 Mount
  • Output response time (ms)
    8.3
  • IP Rating
    IP67
  • Feature: Encapsulated
    No
  • IO Link
    No
  • Feature: Quick Disconnect
    No
  • Barrel Diameter (mm)
    18
  • Feature: Timing (Hold/Delay)
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS18APWLVC1 W/30 on Powermatic Associates is $168.00. Order now.

About the product

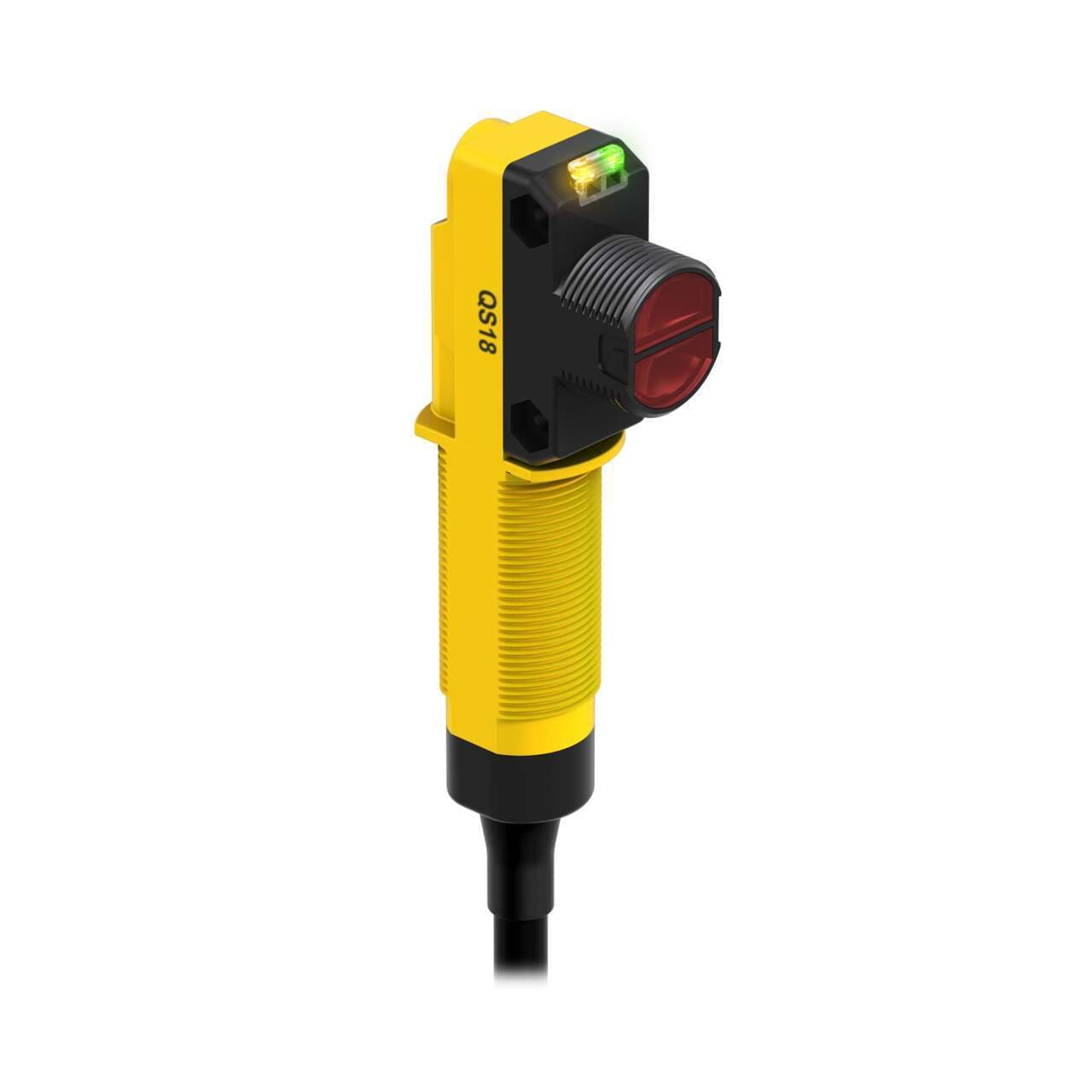

Banner Engineering QS18APWLVC1 W/30 is a photo-electric sensor designed for versatile applications, featuring an M18 threaded mount for secure installation. This sensor operates within an ambient air temperature range of -25 to +70°C and is built for retro-reflective mode with potentiometer adjustment. It comes pre-wired with a 30ft / 9m cable that terminates with bare end flying leads, ensuring easy integration into various systems. The QS18APWLVC1 W/30 operates on a supply voltage of 600Vac and belongs to the QS18 universal voltage series. It offers a high degree of protection with an IP67 NEMA 6 rating, making it suitable for challenging environments. The sensor's housing is made from durable thermoplastic, and it features a Polymethyl methacrylate (PMMA) lens. With a sensing distance of up to 6.5m and utilizing visible red light, this sensor ensures precise detection. It operates in Light-ON mode and includes 1 x digital output (PNP MOSFET transistor) for reliable signaling with a quick response time of 8.3ms / 0.0083 s.
