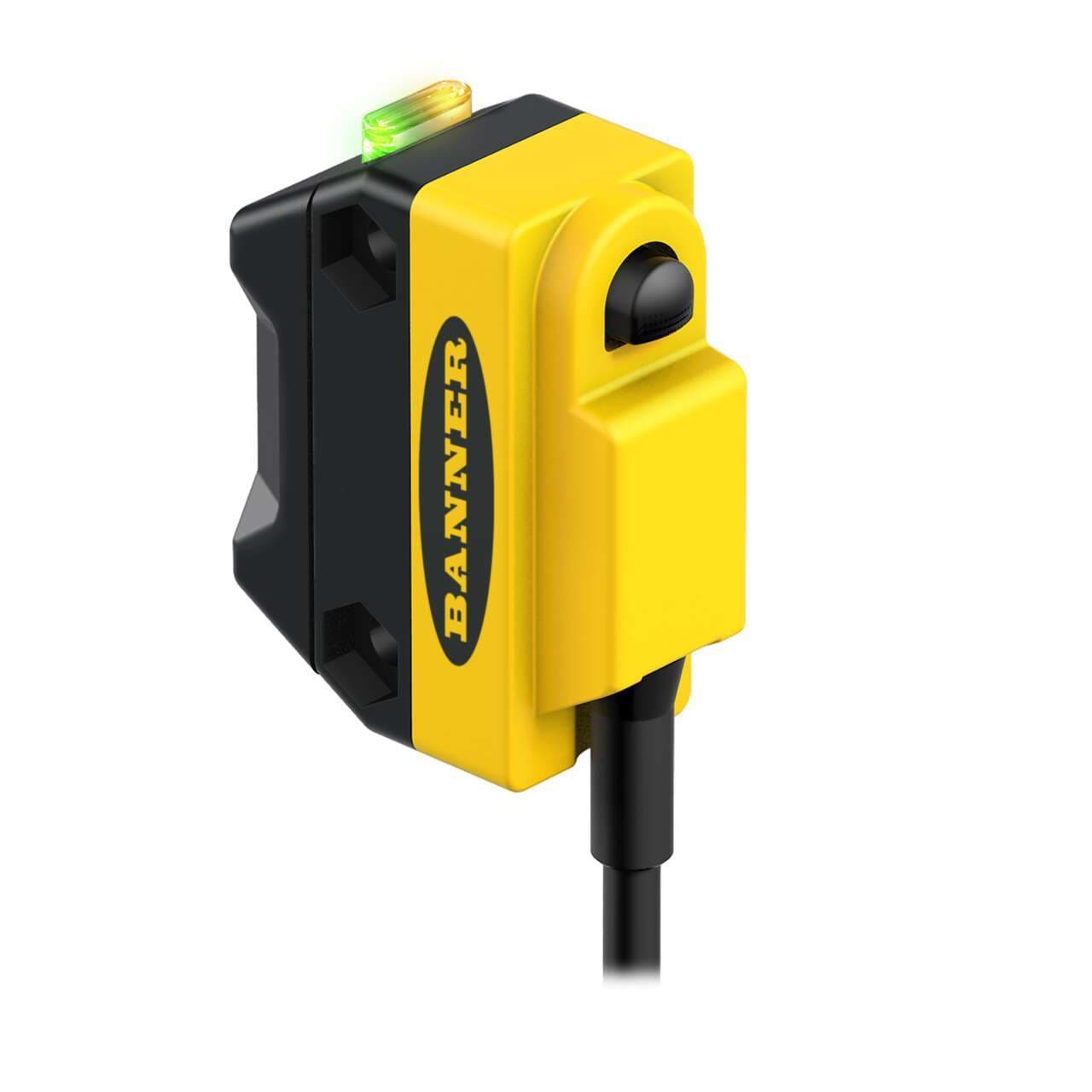

QS18EP6FP Banner Proximity Sensors
Part#:QS18EP6FP
Alt. Part#:75728
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM QS18 Expert Series; Plastic Fiber; Range: Vary by Mode & Fiber Optic use; Input: 10-30 V dc; Output: PNP; 2 m Cable
Product Details
- Weight 90.7184 g
- Country Of Origin MX
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Main function Amplifier for sensor
- Functions Fiber optic sensor amplifier green LED (power ON) yellow LED (light sensed) TEACH mode
- Sub-range name QS18 Expert series
- Light Color Visible red
- Primary brand Banner Engineering
- Material thermoplastic housing
- Product series / family name WORLD-BEAM series
- Shape Rectangular
- Connection type Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Digital outputs 1 x digital output (PNP transistor)
- Order code / Manufacturer SKU 75728
- Degree of protection IP67 NEMA 6
- Ambient air temperature for operation -20...+70 °C
- Output PNP
- Min Op. Temperature (°C) -20
- Special Feature: Bussable Power No
- Power DC
- Output Type (Specific) Single Discrete
- Adjustments Teach Button
- Color LED - Amplifiers Red
- Input/Output Discrete
- IP Rating IP67
- Number of Pins 4
- Special Feature: Remote Teach Yes
- Indicator Display Type Indicator LEDs
- Cable Length (m) 2
- Quick Disconnect Type No QD
- Intrinsically Safe No
- Feature: Hazardous Area No
- Primary Housing Material Thermoplastic
- Max Op. Temperature (°C) 70
- Minimum response time (ms) .6
- Housing Material Thermoplastic
- Connection Cable
- Max Op. Relative Humidity (%) 95% @ 50°C
- Feature: Timing (Hold/Delay) Yes
- Feature: Audible No
- Housing Style Rectangular
- Repeatability (µs) 75
- Power Supply/Supply Voltage 10-30 V dc
- Fiber Type Plastic and Glass
- NEMA Rating NEMA 6
- Delay at Power-up (ms) 100
- IO Link No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS18EP6FP on Powermatic Associates is $90.00. Order now.
About the product
Banner Engineering QS18EP6FP is an amplifier designed for sensor applications, specifically functioning as a fiberoptic sensor amplifier. It operates within an ambient air temperature range of -20 to +70°C and features a TEACH mode for ease of use. This part is pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads, ensuring straightforward integration into various systems. As part of the QS18 Expert series, it offers a degree of protection rated at IP67 NEMA 6, suitable for demanding environments. The QS18EP6FP requires a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as the nominal values. Its rectangular shape is constructed from a thermoplastic housing, designed for durability. The device emits visible red light and includes 1 x digital output (PNP transistor) for signaling and control purposes.
