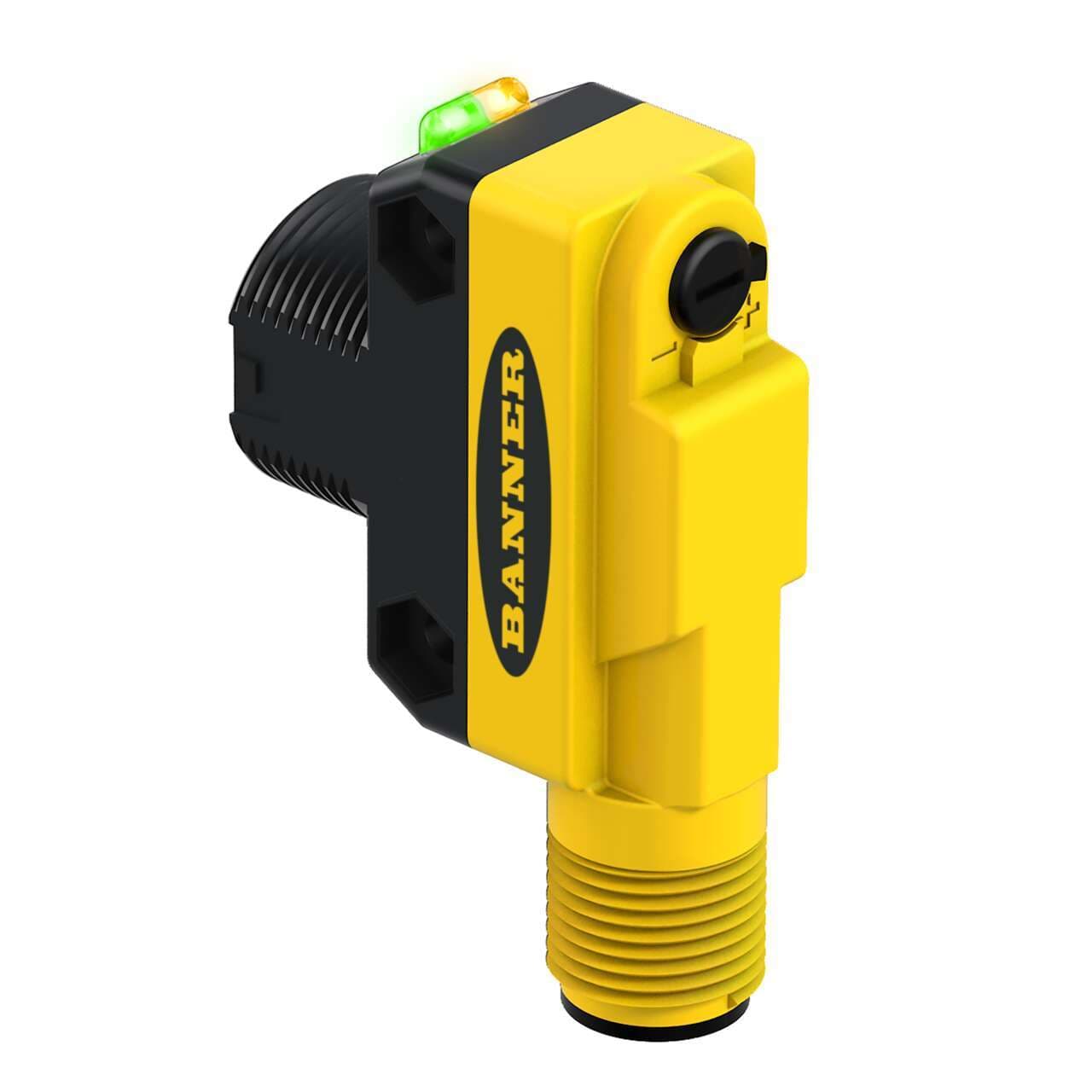

QS18K6AF120Q8 Banner Proximity Sensors
Part#:QS18K6AF120Q8
Alt. Part#:805187
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM: Adjustable Field; Range: 120 mm; Input: 10-30 V dc; Output 1: Push/Pull with IO-Link; Output 2: Configurable PNP/NPN; M12 Integral QD
Product Details
- Weight 0.226796 g
- Country Of Origin MX
- Max Sensing Distance (mm) 120
- Min Op. Temp. (°C) -25
- Input/Output Discrete & Serial
- Barrel Diameter (mm) 18
- Primary Housing Material ABS
- Operation Light/Dark Operate
- IP Rating IP67
- Power DC
- Connection Integral QD
- Adjustments Potentiometer
- Feature: Health/ Marginal Signal Output Yes
- Lens Material Acrylic
- IO Link Yes
- Output response time (ms) 2.8
- Number of Pins 4
- Feature: Encapsulated No
- Housing Style Rectangular w/M18 Mount
- Repeatability (µs) 130
- Feature: Audible No
- Small Visible Spot LED
- Max Op. Temp. (°C) 55
- Max Op. Relative Humidity [%] 95% @ 50°C
- Feature: Quick Disconnect Yes
- Sensing Beam Visible Red LED
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Water Detection No
- DeviceNet No
- Outputs 2 NPN/2 PNP Configurable
- Sensing Beam Wavelength 640
- Feature: Timing (Hold/Delay) Yes
- Delay at Power-up (ms) 200
- Indicator LEDs
- Sensing Mode (Detailed) Background Suppression (Adjustable)
- Special Feature: Intrinsically Safe No
- NEMA Rating NEMA 6
- Feature: Chemical Resistant No
- Sensing Mode (General) Proximity
- Quick Disconnect Type M12 (Euro)
- Special Feature: Remote Teach Yes
- Feature: Hazardous Area No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS18K6AF120Q8 on Powermatic Associates is $122.00. Order now.
About the product
Banner Engineering QS18K6AF120Q8 is an adjustable-field photo-electric sensor designed for versatile applications, featuring an M18 threaded mount for secure installation. It operates within an ambient air temperature range of -25 to +55°C and incorporates a background suppression system with potentiometer adjustment for precise sensing. This sensor is equipped with a 4-pin Euro-style M12 connector, falling under the QS18..AF electronically adjustable background suppression series. It offers a degree of protection rated at IP67 NEMA 6, ensuring durability in various environmental conditions. The sensor operates on a supply voltage of 10Vdc-30Vdc, with nominal values of 12Vdc and 24Vdc. Its rectangular shape is constructed from an ABS housing with an Acrylic lens, designed for longevity. Communication is facilitated via IO-Link protocol, with a sensing distance of 120mm and visible red light for easy alignment. It supports both Light-ON and Dark-ON operating modes for flexible application use and features a rapid response time of 2.8ms. The digital outputs include 1 x digital output (PNP/NPN transistor / IO-Link) and an additional 1 x digital output (PNP/NPN transistor), catering to a variety of output requirements.
