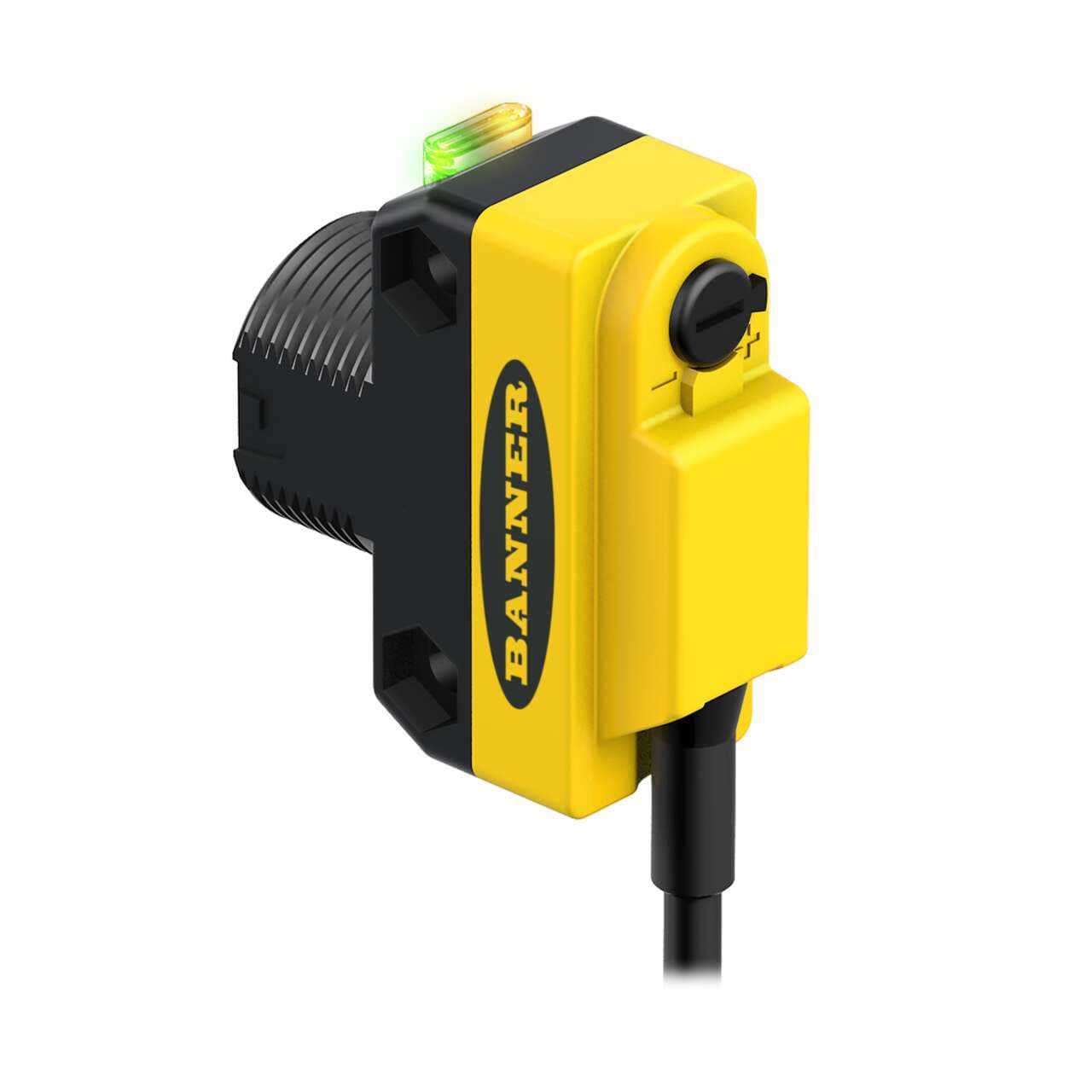

QS18VN6DVSQ5 Banner Proximity Sensors
Part#:QS18VN6DVSQ5
Alt. Part#:804713
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM QS18 Series: Small Spot Diffuse Vis. Red; Range: 250 mm; Input: 10-30 V dc; Output:Complementary Solid-State NPN; 150 mm (6 in) M12 Pigtail QD
Product Details
- Weight 31.75144 g
- Country Of Origin MX
- Input/Output Discrete
- Power Supply/Supply Voltage 10-30 V dc
- IP Rating IP67
- Lens Material PMMA
- Feature: Audible No
- Sensing Mode (Detailed) Diffuse
- Outputs NPN
- Special Feature: Water Detection No
- Adjustments Potentiometer
- Power DC
- Connection Pigtail QD
- Sensing Beam Wavelength 630
- Indicator LEDs
- Small Visible Spot LED
- Quick Disconnect Type M12 (Euro)
- Repeatability (µs) 90
- Feature: Encapsulated No
- Sensing Mode (General) Proximity
- Max Op. Temp. (°C) 70
- Delay at Power-up (ms) 100
- DeviceNet No
- Special Feature: Remote Teach No
- Feature: Timing (Hold/Delay) No
- Max Sensing Distance (mm) 250
- Output response time (ms) 0.85
- Max Op. Relative Humidity [%] 95% @ 50°C
- Feature: Quick Disconnect Yes
- Housing Style Rectangular w/M18 Mount
- Min Op. Temp. (°C) -20
- NEMA Rating NEMA 6
- Feature: Chemical Resistant No
- Sensing Beam Visible Red LED
- Special Feature: Intrinsically Safe No
- Barrel Diameter (mm) 18
- IO Link No
- Primary Housing Material ABS
- Operation Light/Dark Operate
- Number of Pins 4
- Feature: Hazardous Area No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS18VN6DVSQ5 on Powermatic Associates is $106.00. Order now.
About the product
Banner Engineering QS18VN6DVSQ5 is a photo-electric sensor designed for versatile applications, featuring an M18 threaded mount for secure installation. It operates within an ambient air temperature range of -20 to +70°C and is equipped with a diffuse mode potentiometer adjustment for precise sensing control. This sensor is pre-wired with a 6" / 150mm pigtail, terminating in a 4-pin Euro-style M12 connector for easy connection. As part of the QS18 series, it boasts an IP67 NEMA 6 degree of protection, ensuring durability in various environments. The sensor operates on a supply voltage of 10Vdc-30Vdc, with 12Vdc / 24Vdc nominal, and is housed in a rectangular, thermoplastic body with a Polymethyl methacrylate (PMMA) lens. It has a sensing distance of 250mm and utilizes visible red light for detection. The operating modes include Light-ON and Dark-ON, with a single digital output (NPN transistor; complementary NO/NC) and a rapid response time of 0.85ms / 0.00085 s.
