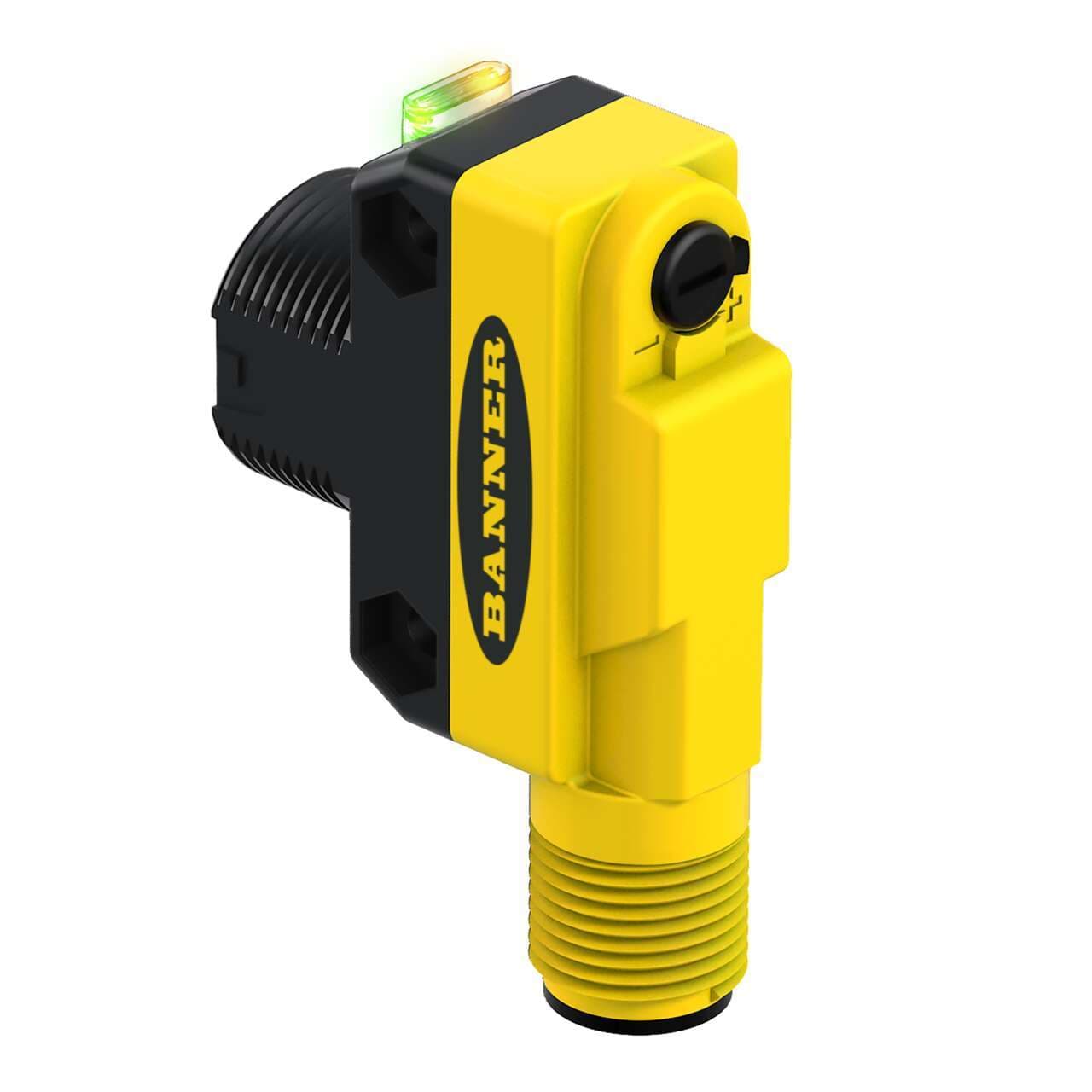

QS18VN6DVSQ8 Banner Proximity Sensors
Part#:QS18VN6DVSQ8
Alt. Part#:805582
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM QS18 Series: Small Spot Diffuse Vis. Red; Range: 250 mm; Input: 10-30 V dc; Output:Complementary Solid-State NPN; M12 Integral QD
Product Details
- Weight 22.6796 g
- Country Of Origin MX
- Max Sensing Distance (mm) 250
- Output response time (ms) 0.85
- Repeatability (µs) 90
- Opposed Mode Emitter/Receiver N/A
- Feature: Chemical Resistant No
- Power DC
- Operation Light/Dark Operate
- Special Feature: Remote Teach No
- Indicator LEDs
- Input/Output Discrete
- Min Op. Temp. (°C) -20
- Delay at Power-up (ms) 100
- Feature: Timing (Hold/Delay) No
- Sensing Mode (General) Proximity
- Outputs NPN
- NEMA Rating NEMA 6
- Feature: Encapsulated No
- Housing Style Rectangular w/M18 Mount
- Connection Integral QD
- Special Feature: Water Detection No
- Adjustments Potentiometer
- Sensing Beam Visible Red LED
- Special Feature: Intrinsically Safe No
- Lens Material PMMA
- Feature: Audible No
- Sensing Mode (Detailed) Diffuse
- Quick Disconnect Type M12 (Euro)
- IP Rating IP67
- Barrel Diameter (mm) 18
- DeviceNet No
- Small Visible Spot LED
- Max Op. Temp. (°C) 70
- Sensing Beam Wavelength 630
- Max Op. Relative Humidity [%] 95% @ 50°C
- IO Link No
- Primary Housing Material ABS
- Power Supply/Supply Voltage 10-30 V dc
- Number of Pins 4
- Feature: Hazardous Area No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS18VN6DVSQ8 on Powermatic Associates is $90.00. Order now.
About the product
Banner Engineering QS18VN6DVSQ8 is a photo-electric sensor designed for versatile applications, featuring a diffuse mode with potentiometer adjustment. It comes with an M18 threaded mount for easy installation and is equipped with a 4-pin Euro-style M12 connector for connectivity. This sensor operates within an ambient air temperature range of -20 to +70°C and is housed in a thermoplastic casing with a Polymethyl methacrylate (PMMA) lens, ensuring durability. It belongs to the QS18 series and offers a sensing distance of 250mm with visible red light for detection. The QS18VN6DVSQ8 supports both Light-ON and Dark-ON operating modes and provides a digital output (NPN transistor; complementary NO/NC) for signal processing. It has a quick response time of 0.85ms / 0.00085 s and requires a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.). This sensor is protected against ingress with an IP67 NEMA 6 rating, making it suitable for a wide range of industrial environments.
