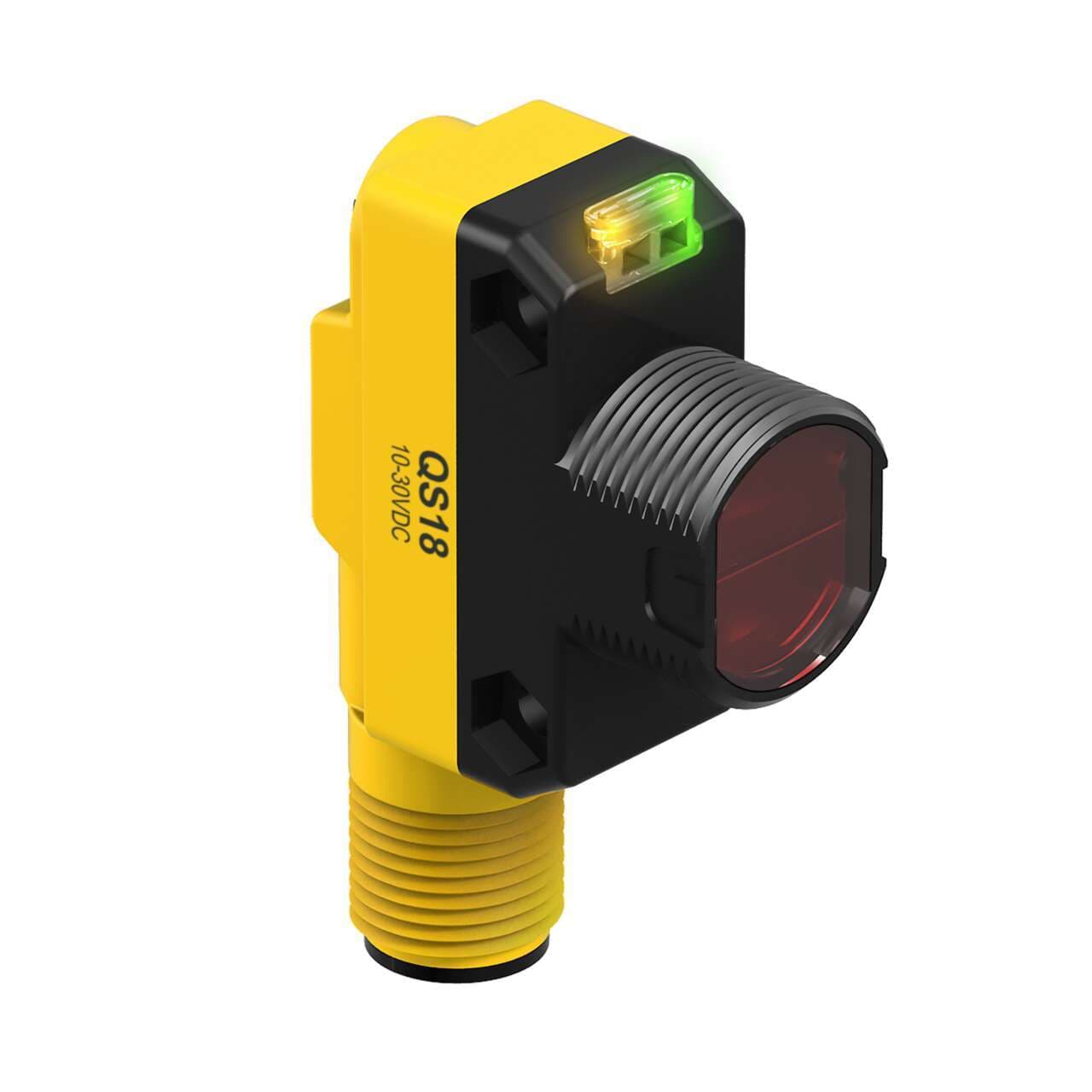

QS18VP6AF120Q8 Banner Proximity Sensors
Part#:QS18VP6AF120Q8
Alt. Part#:805176
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM: Adjustable Field; Range: 120 mm; Input: 10-30 V dc; Outputs: Complementary PNP; M12 Integral QD
Product Details
- Weight 22.6796 g
- Country Of Origin MX
- Power DC
- Max Sensing Distance (mm) 120
- Max Op. Temp. (°C) 60
- Indicator LEDs
- Special Feature: Intrinsically Safe No
- Adjustments Potentiometer
- IO Link No
- Connection Integral QD
- Small Visible Spot LED
- Output response time (ms) 2.8
- DeviceNet No
- Quick Disconnect Type M12 (Euro)
- Number of Pins 4
- Feature: Timing (Hold/Delay) No
- Sensing Mode (General) Proximity
- Min Op. Temp. (°C) -40
- Special Feature: Remote Teach No
- Barrel Diameter (mm) 18
- Operation Light/Dark Operate
- Repeatability (µs) 130
- Feature: Hazardous Area No
- Input/Output Discrete
- IP Rating IP67
- Feature: Encapsulated No
- Sensing Beam Visible Red LED
- Outputs PNP
- Sensing Beam Wavelength 640
- Max Op. Relative Humidity [%] 95% @ 50°C
- Feature: Quick Disconnect Yes
- Housing Style Rectangular w/M18 Mount
- NEMA Rating NEMA 6
- Feature: Chemical Resistant No
- Sensing Mode (Detailed) Background Suppression (Adjustable)
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Water Detection No
- Primary Housing Material ABS
- Delay at Power-up (ms) 200
- Lens Material Acrylic
- Feature: Audible No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS18VP6AF120Q8 on Powermatic Associates is $122.00. Order now.
About the product
Banner Engineering QS18VP6AF120Q8 is an adjustable-field photo-electric sensor designed for versatile applications, featuring an M18 threaded mount for secure installation. It operates within an ambient air temperature range of -40 to +60°C and incorporates a background suppression system with potentiometer adjustment for precise sensing. This sensor is equipped with a 4-pin Euro-style M12 connector, aligning with the QS18..AF electronically adjustable background suppression series specifications. It offers a degree of protection rated at IP67 NEMA 6, ensuring durability in various environmental conditions. The sensor operates on a supply voltage range of 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc. Its rectangular shape is constructed from a thermoplastic housing with an acrylic lens, designed for longevity and clear signal transmission. The QS18VP6AF120Q8 has a sensing distance of 120mm and utilizes visible red light for detection. It supports both Light-ON and Dark-ON operating modes and includes 1 x digital output (PNP transistor; complementary NO/NC) for flexible integration into various systems. The response time is quick, at 2.8ms or 0.0028 seconds, facilitating rapid signal processing for efficient operation.
