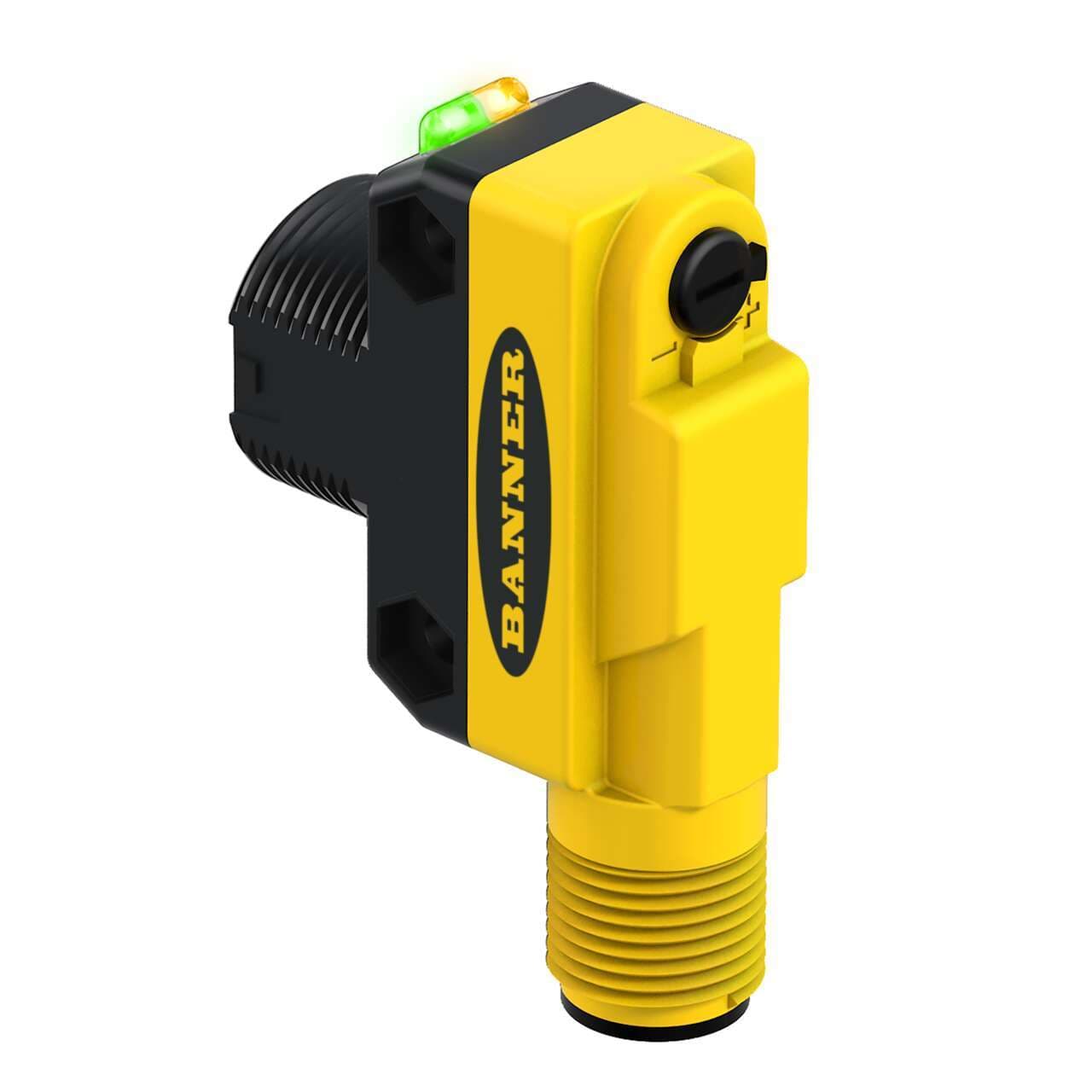

QS18VP6AF250Q7 Banner Proximity Sensors
Part#:QS18VP6AF250Q7
Alt. Part#:802452
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM: Adjustable Field; Range: 250 mm; Input: 10-30 V dc; Outputs: Complementary PNP; M8 Integral QD
Product Details
- Weight 27.21552 g
- Country Of Origin MX
- Primary Housing Material ABS
- Output response time (ms) 2.8
- Number of Pins 4
- Feature: Timing (Hold/Delay) No
- Housing Style Rectangular w/M18 Mount
- Quick Disconnect Type M8 (Pico)
- Delay at Power-up (ms) 200
- Sensing Mode (Detailed) Background Suppression (Adjustable)
- Connection Integral QD
- Special Feature: Remote Teach No
- Max Op. Relative Humidity [%] 95% @ 50°C
- Feature: Audible No
- Outputs PNP
- Max Op. Temp. (°C) 60
- NEMA Rating NEMA 6
- Feature: Encapsulated No
- Sensing Mode (General) Proximity
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Intrinsically Safe No
- Lens Material Acrylic
- Input/Output Discrete
- IO Link No
- Operation Light/Dark Operate
- Repeatability (µs) 130
- Barrel Diameter (mm) 18
- Min Op. Temp. (°C) -40
- Sensing Beam Wavelength 640
- Indicator LEDs
- DeviceNet No
- Power DC
- Sensing Beam Visible Red LED
- Max Sensing Distance (mm) 250
- Special Feature: Water Detection No
- Feature: Chemical Resistant No
- Adjustments Potentiometer
- Feature: Hazardous Area No
- IP Rating IP67
- Feature: Quick Disconnect Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS18VP6AF250Q7 on Powermatic Associates is $122.00. Order now.
About the product
Banner Engineering QS18VP6AF250Q7 is an adjustable-field photo-electric sensor designed for versatile applications, featuring an M18 threaded mount for secure installation. It operates within an ambient air temperature range of -40 to +60°C and incorporates a background suppression system with potentiometer adjustment for precise sensing. This sensor is equipped with a 4-pin Pico-style M8 connector, aligning with the QS18..AF electronically adjustable background suppression series. It offers an IP67 NEMA 6 degree of protection, ensuring durability in various environments. The sensor operates on a supply voltage of 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc. Its rectangular shape is constructed from a thermoplastic housing with an acrylic lens, and it has a sensing distance of 250mm. The sensor emits visible red light and supports both Light-ON and Dark-ON operating modes. It features a single digital output (PNP transistor; complementary NO/NC) and boasts a rapid response time of 2.8ms / 0.0028 s.
