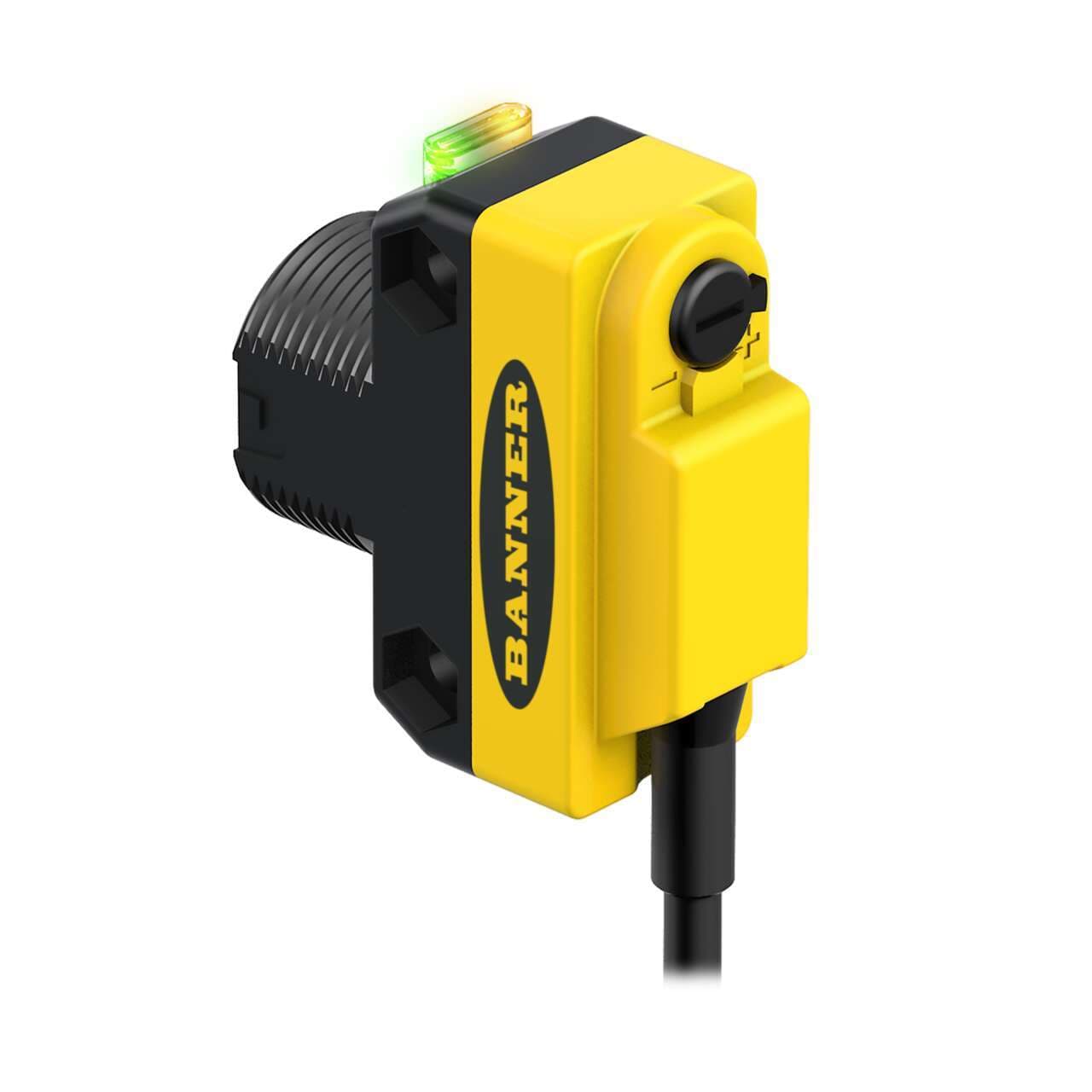

QS18VP6DL-RJ11-2M Banner Proximity Sensors
Part#:QS18VP6DL-RJ11-2M
Alt. Part#:808102
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM QS18 Series: Diffuse; Range: 600 mm; Input: 10-30 V dc; Output: Complementary Solid-State PNP; 2 m (6.5 ft) RJ11 Cable
Product Details
- Weight 45.3592 g
- Country Of Origin MX
- DeviceNet No
- Input/Output Discrete
- Special Feature: Intrinsically Safe No
- NEMA Rating NEMA 6
- Feature: Encapsulated No
- Primary Housing Material ABS
- Operation Light/Dark Operate
- IP Rating IP67
- Feature: Audible No
- Sensing Beam Infrared LED
- Connection Cable
- Repeatability (µs) 90
- Opposed Mode Emitter/Receiver N/A
- Sensing Mode (General) Proximity
- Max Op. Temp. (°C) 70
- Max Op. Relative Humidity [%] 95% @ 50°C
- Feature: Hazardous Area No
- Cable Length (m) 2
- Min Op. Temp. (°C) -20
- Delay at Power-up (ms) 100
- Barrel Diameter (mm) 18
- IO Link No
- Housing Style Rectangular w/M18 Mount
- Sensing Mode (Detailed) Diffuse
- Outputs PNP
- Output response time (ms) 0.85
- Special Feature: Water Detection No
- Number of Pins 4
- Adjustments Potentiometer
- Lens Material Acrylic
- Feature: Chemical Resistant No
- Power DC
- Max Sensing Distance (mm) 600
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Remote Teach No
- Sensing Beam Wavelength 940
- Indicator LEDs
- Feature: Timing (Hold/Delay) No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS18VP6DL-RJ11-2M on Powermatic Associates is $106.00. Order now.
About the product
Banner Engineering QS18VP6DL-RJ11-2M is a photo-electric sensor designed for versatile applications, featuring an M18 threaded mount for easy installation. It operates within an ambient air temperature range of -20 to +70°C and is equipped with a diffuse mode potentiometer adjustment for precise sensing control. This sensor is pre-wired with a 2m pigtail terminated with an RJ11 connector, falling under the QS18 series. It boasts a degree of protection rated at IP67 NEMA 6, ensuring durability in various environmental conditions. The supply voltage requirement ranges from 10Vdc to 30Vdc, with nominal values at 12Vdc and 24Vdc. Its rectangular shape is constructed from a thermoplastic housing with an acrylic lens, capable of sensing distances up to 600mm. The sensor utilizes infrared (IR) light and supports both Light-ON and Dark-ON operating modes. It features a single digital output (PNP transistor; complementary NO/NC) and responds swiftly with a response time of 0.85ms / 0.00085 s.
