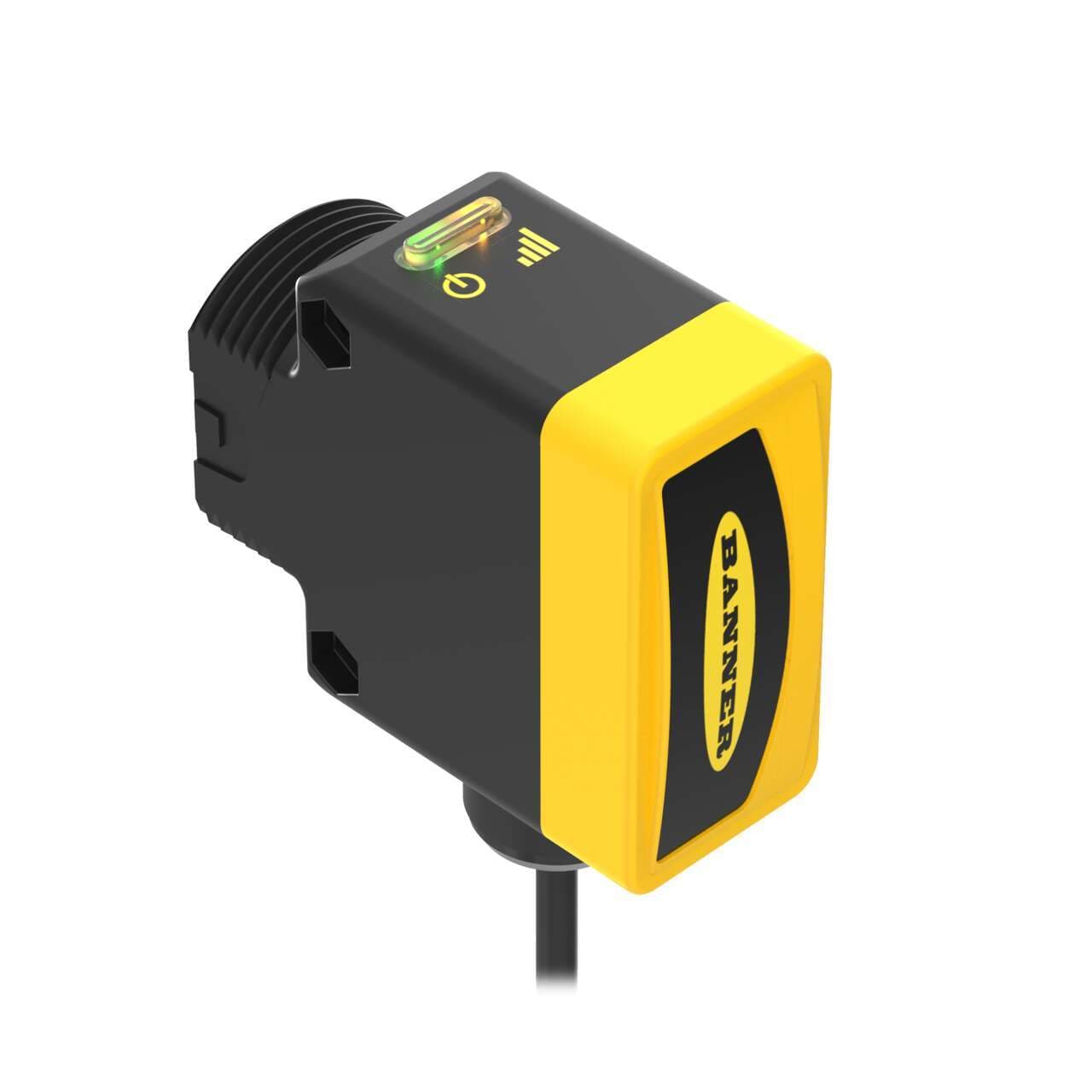

QS30EXSH2OQ5 Banner Proximity Sensors
Part#:QS30EXSH2OQ5
Alt. Part#:81059
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM QS30 Series: H2O SHP Emitter; Range: 8 m; Input: 10-30 V dc; Output: Not Applicable; 150 mm (6 in) 5-pin M12 Pigtail QD
Product Details
- Weight 113.398 g
- Country Of Origin US
- Primary Housing Material Thermoplastic
- Operation N/A
- Delay at Power-up (ms) 100
- Feature: Timing (Hold/Delay) No
- Power DC
- Max Sensing Distance (mm) 8000
- Lens Material Acrylic
- Power Supply/Supply Voltage 10-30 V dc
- NEMA Rating NEMA PW12
- Opposed Mode Emitter/Receiver Emitter
- Sensing Beam Long Infrared (Water Detection)
- Connection Pigtail QD
- Special Feature: Water Detection Yes
- Adjustments N/A
- Feature: Encapsulated No
- Sensing Mode (General) Opposed
- Max Op. Temp. (°C) 60
- Number of Pins 5
- IO Link No
- Outputs N/A
- Special Feature: Intrinsically Safe No
- Repeatability (µs) 5000
- Indicator LEDs
- Housing Style Rectangular w/M30 Mount
- Quick Disconnect Type M12 (Euro)
- Special Feature: Remote Teach No
- Feature: Chemical Resistant No
- Output response time (ms) 10
- IP Rating IP67
- Feature: Hazardous Area No
- Sensing Mode (Detailed) Emitter
- Min Op. Temp. (°C) -20
- Barrel Diameter (mm) 30
- DeviceNet No
- Cable Length (m) 0.15
- Max Op. Relative Humidity [%] 95% @ 50°C
- Feature: Audible No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS30EXSH2OQ5 on Powermatic Associates is $203.00. Order now.
About the product
Banner Engineering QS30EXSH2OQ5 is a photo-electric sensor designed for water detection applications, featuring an emitter alone configuration within the QS30H2O series. This sensor operates with a through-beam system in an opposed mode, specifically tailored for water detection. It is equipped with a pre-wired 6-inch (150mm) pigtail that terminates with a 5-pin Euro-style M12 connector, facilitating straightforward installation. The QS30EXSH2OQ5 is designed for mounting via an M30 threaded mount and is housed in a thermoplastic casing with an acrylic lens. It boasts a sensing distance of up to 8 meters and utilizes infrared (IR) light for detection. This sensor operates within an ambient air temperature range of -20 to +60 degrees Celsius and is powered by a DC supply voltage ranging from 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. It features a rapid response time of 10 milliseconds (0.01 seconds) and is protected to IP67 NEMA PW12 standards, ensuring its durability in various environmental conditions.
QS30EXSH2OQ5 Related Documents
Similar products from: Banner Proximity Sensors
Manufacturer warranty
QS30EXSH2OQ5 Banner
$203.00
Your price can be lower.
Log in or Create account to check your discount
Select Qty:
$203.00
$203.00 each
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare QS30EXSH2OQ5 with other Proximity Sensors products
Weight
Country Of Origin
Primary Housing Material
Operation
Delay at Power-up (ms)
Feature: Timing (Hold/Del...
Power
Max Sensing Distance (mm)
Lens Material
Power Supply/Supply Volta...
Selected product
QS30EXSH2OQ5
Banner
WORLD-BEAM QS30 Series: H2O SHP Emitter; Range: 8 m; Input: 10-30 V dc; Output: Not Applicable; 150 ...
Weight113.398 g
Country Of OriginUS
Primary Housing MaterialThermoplastic
OperationN/A
Delay at Power-up (ms)100
Feature: Timing (Hold/Delay)No
PowerDC
Max Sensing Distance (mm)8000
Lens MaterialAcrylic
Power Supply/Supply Voltage10-30 V dc
SM31RL100QDP
Banner
SM31RL100QD MINIBEAM SCANNER W/.100 APERTURE INSTALLED, 150 mm (6 in) 4-pin M12 Pigtail QD
Weight68.0388 g
Country Of OriginUS
Primary Housing MaterialThermoplastic
Operation-
Delay at Power-up (ms)-
Feature: Timing (Hold/Delay)-
PowerDC
Max Sensing Distance (mm)30000
Lens Material-
Power Supply/Supply Voltage-
SB12TE1
Banner
SB12 Threaded Series Emitter; Range: 1.5 m; Input Voltage: 10-30 V dc; Output: Not Applicable; 2 m (...
Weight45.3592 g
Country Of OriginCN
Primary Housing MaterialThermoplastic
Operation-
Delay at Power-up (ms)-
Feature: Timing (Hold/Delay)-
PowerDC
Max Sensing Distance (mm)1500
Lens Material-
Power Supply/Supply Voltage-
About the manufacturer
Powermatic Associates is an authorized Banner distributor, proud to offer an extensive range of Banner's innovative products and solutions. Banner Engineering is a renowned manufacturer specializing in industrial automation, known for their cutting-edge sensor technology, machine safety solutions, wireless connectivity, and LED lighting systems. With a precision focus on delivering high-quality eq...
Recently viewed products
Relevant products
FAQ
What is the price of QS30EXSH2OQ5?
Purchase the QS30EXSH2OQ5 from Powermatic Associates at the price of $203.00. Order today.
Out if stock but available for backorder.
WORLD-BEAM QS30 Series: H2O SHP Emitter; Range: 8 m; Input: 10-30 V dc; Output: Not Applicable; 150 mm (6 in) 5-pin M12 Pigtail QD
