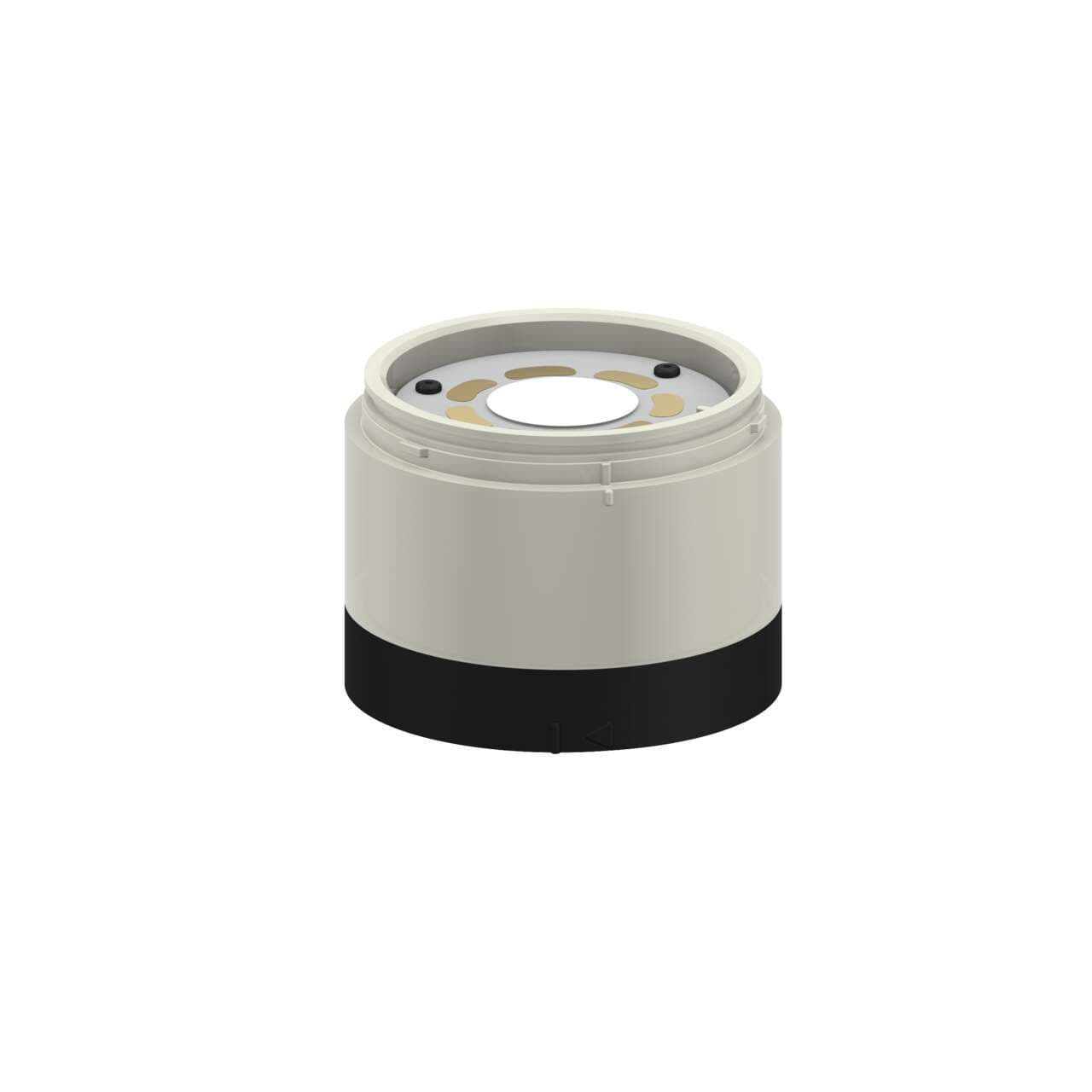

SG-TL70-R-L Banner Signal Towers
Part#:SG-TL70-R-L
Alt. Part#:94413
Manufacturer:Banner
Category:Signal Towers
Product Lifecycle:Active
Product description
TL70 Light Module; Color: Red; Voltage: 12-30 V dc; Environmental Rating: IP65; Steady On/Flashing; Black Housing; Laser Etched RED 5 mm Height
Product Details
- Weight 90.7184 g
- Country Of Origin MX
- Modbus RTU No
- Product Size (mm) 70
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Power DC or AC
- Environmental Rating IP65
- Storage Temp (°C) -40 to 70
- Physical Dimensions (LxWxH or DxH mm) 70.0 x 50.0
- Feature: Quick Disconnect No
- Housing Style Segment - Light
- Animation Option 1 Dip-Switch Controlled
- Max Current Color (mA) 420
- Feature: Chemical Resistant No
- Lumens Color 1 40.0
- Color 1 - Wavelength/Color Temp/Coordinates 625 nm
- Min Op. Temperature (°C) -40
- Wireless No
- Primary Housing Material Polycarbonate
- Number of Colors / Segments 1
- Indication Yes
- Max Op. Relative Humidity Non-Condensing (%) 95% @ 50°C
- Feature: Audible No
- Max Op. Temperature (°C) 50
- Color Technology Standard LED
- IO Link No
- Primary Window Material Polycarbonate Diffused
- Mounting Thread No Thread
- Power Source DC or AC
- Primary Housing Color Black
- Pro-Editor Compatible (Discrete) No
- Color Option 1 Red
- Feature: Hazardous Area No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SG-TL70-R-L on Powermatic Associates is $90.00. Order now.
About the product
Banner Engineering SG-TL70-R-L is a light unit within the Modular series, featuring a 1-color Red LED illumination designed for tow light module applications. It is constructed with Polycarbonate (PC) windows and segments, along with a Polycarbonate (PC) base, ensuring durability. This unit has a cylindrical shape with a diameter of 70mm / 2-3/4" and comes in a black housing. It operates on a supply voltage range of 12Vdc-30Vdc, with a nominal voltage of 24Vdc, and has a current consumption of 420mA. The SG-TL70-R-L is designed to function in ambient air temperatures ranging from -40°C to +50°C and is rated with a degree of protection of IP65, indicating a high level of protection against dust and water ingress.
