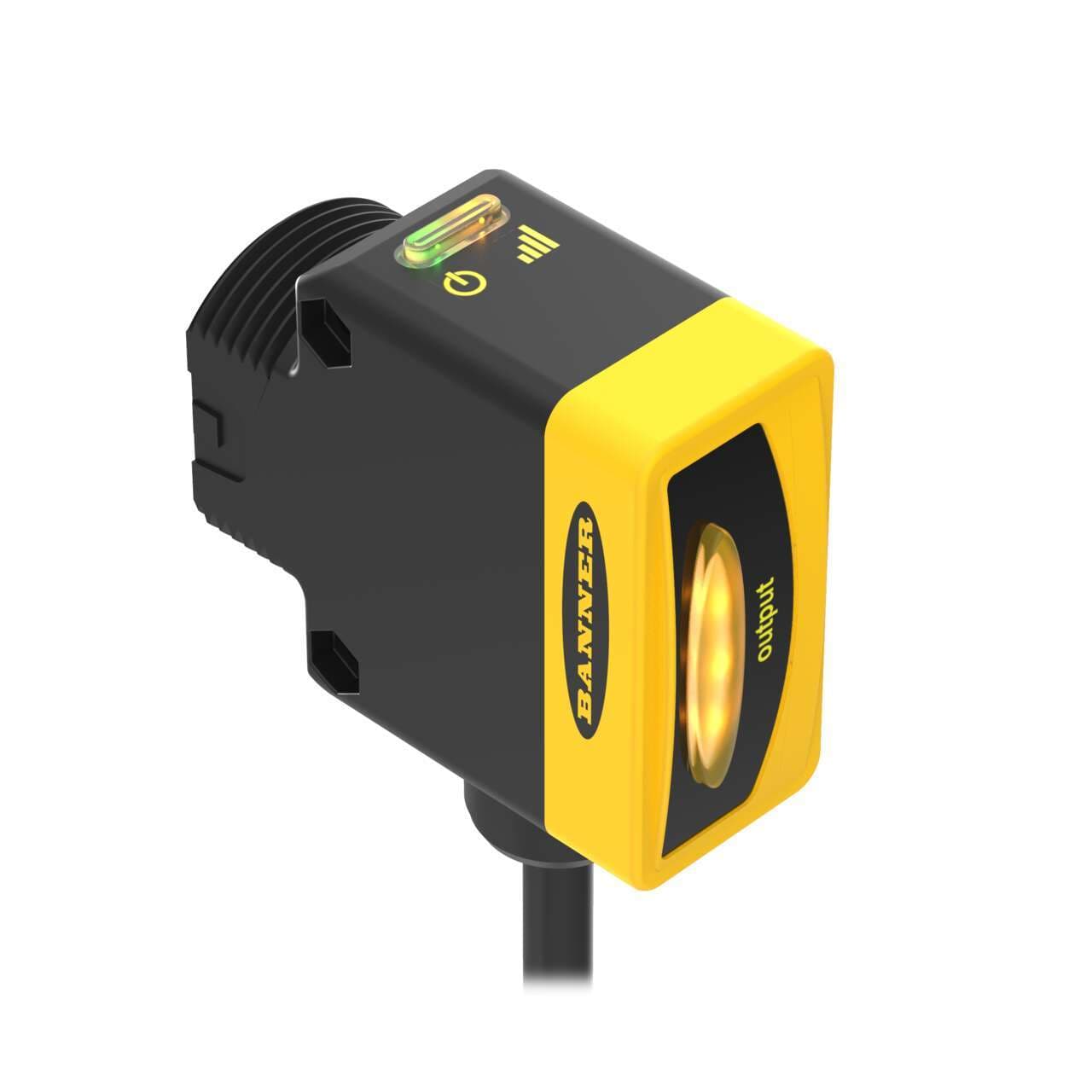

QS30VR3LP Banner Proximity Sensors
Part#:QS30VR3LP
Alt. Part#:72545
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM QS30 Series: Universal Voltage; Range: 8 m; Input: 12-250 V dc or 24-250 V ac; Output: SPDT e/m Relay; 2 m (6.5 ft) Cable
Product Details
- Weight 181.4368 g
- Country Of Origin US
- Product series / family name WORLD-BEAM series
- Functions Polarized photo-electric sensor green LED (power ON) yellow LED (output state)
- Light Color Visible red
- Connection type Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Degree of protection IP67 NEMA 6
- Main function Sensor (Photo-electric)
- Sub-range name QS30 Universal Voltage Series
- Sensing distance 8m
- Primary brand Banner Engineering
- Supply voltage (AC) 24Vac-250Vac (200Vac / 220Vac / 240Vac nom.)
- Shape Rectangular
- Mounting mode Threaded mount
- Supply voltage (DC) 12Vdc-250Vdc (24Vdc / 48Vdc / 120Vdc nom.)
- Thread size M30
- Response time 15ms / 0.015 s
- Compliant with standard(s) cULus CE
- Design retro-reflective mode
- Operating mode Light-ON Dark-ON
- Digital outputs 1 x digital output (SPDT contact type)
- Material thermoplastic housing Acrylic lns.
- Ambient air temperature for operation -20...+70 °C
- Order code / Manufacturer SKU 72545
- Sensing Mode (Detailed) Polarized
- Outputs SPDT e/m Relay
- Special Feature: Water Detection No
- Barrel Diameter (mm) 30
- Input/Output E/M Relay
- Max Op. Temp. (°C) 70
- Max Op. Relative Humidity [%] 95% @ 50°C
- Feature: Audible No
- Cable Length (m) 2
- Min Op. Temp. (°C) -20
- Number of Pins 5
- Feature: Encapsulated No
- Housing Style Rectangular w/M30 Mount
- Output response time (ms) 15
- NEMA Rating NEMA 6
- IO Link No
- Sensing Mode (General) Retroreflective
- Lens Material Acrylic
- Special Feature: Remote Teach No
- DeviceNet No
- Sensing Beam Visible Red LED
- Power Supply/Supply Voltage 12-250 V dc or 24-250 V ac
- Adjustments N/A
- Indicator LEDs
- Quick Disconnect Type No QD
- Repeatability (µs) N/A
- Feature: Timing (Hold/Delay) No
- Power AC/DC Universal
- Special Feature: Intrinsically Safe No
- Sensing Beam Wavelength 630
- Feature: Chemical Resistant No
- Primary Housing Material Thermoplastic
- Operation Light/Dark Operate
- IP Rating IP67
- Feature: Hazardous Area No
- Max Sensing Distance (mm) 8000
- Connection Cable
- Delay at Power-up (ms) 100
- Opposed Mode Emitter/Receiver N/A
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS30VR3LP on Powermatic Associates is $138.00. Order now.
About the product
Banner Engineering QS30VR3LP is a polarized photo-electric sensor designed for retro-reflective mode operation. It features an M30 threaded mount for secure installation and is equipped with a pre-wired 6.5ft / 2m cable that terminates with bare end flying leads for easy connection. This sensor operates within an ambient air temperature range of -20 to +70°C and is part of the QS30 universal voltage series. It supports a wide supply voltage range, including 24Vac-250Vac (with 200Vac, 220Vac, and 240Vac nominal) and 12Vdc-250Vdc (with 24Vdc, 48Vdc, and 120Vdc nominal), making it versatile for various applications. The QS30VR3LP is housed in a thermoplastic casing with an acrylic lens, ensuring durability, and it offers a sensing distance of up to 8 meters. It emits visible red light and can operate in both Light-ON and Dark-ON modes. This sensor provides one digital output (SPDT relay contact) and boasts a quick response time of 15ms / 0.015 s. It is designed to meet IP67 and NEMA 6 degrees of protection, ensuring its resilience in challenging environments.
