SG-TL70-W-L Banner Signal Towers
Part#:SG-TL70-W-L
Alt. Part#:94416
Manufacturer:Banner
Category:Signal Towers
Product Lifecycle:Active
Product description

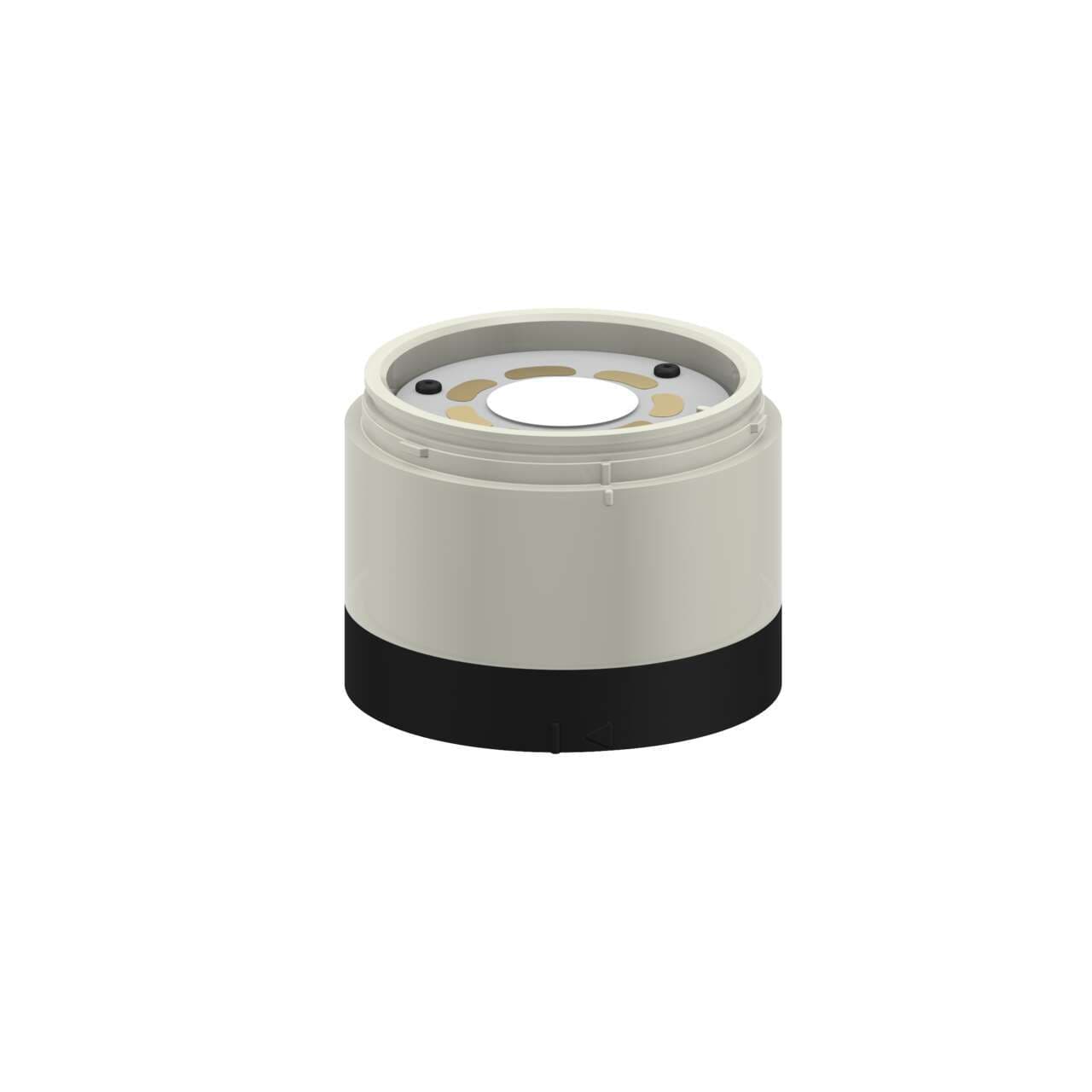

TL70 Light Module; Color: White; Voltage: 12-30 V dc; Environmental Rating: IP65; Steady On/Flashing; Black Housing; Laser Etched WHITE 5 mm Height
Product Details
- Weight 136.0776 g
- Country Of Origin MX
- Number of Colors / Segments 1
- Color Technology Standard LED
- Min Op. Temperature (°C) -40
- Power DC or AC
- Lumens Color 1 125
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Physical Dimensions (LxWxH or DxH mm) 70.0 x 50.0
- Feature: Chemical Resistant No
- Housing Style Segment - Light
- Color 1 - Wavelength/Color Temp/Coordinates 5000K (Daylight)
- Primary Housing Color Black
- Pro-Editor Compatible (Discrete) No
- Indication Yes
- Max Current Color (mA) 420
- Max Op. Temperature (°C) 50
- Modbus RTU No
- Power Source DC or AC
- Environmental Rating IP65
- Feature: Audible No
- Product Size (mm) 70
- Max Op. Relative Humidity Non-Condensing (%) 95% @ 50°C
- IO Link No
- Mounting Thread No Thread
- Animation Option 1 Dip-Switch Controlled
- Feature: Hazardous Area No
- Storage Temp (°C) -40 to 70
- Primary Window Material Polycarbonate Diffused
- Primary Housing Material Polycarbonate
- Color Option 1 White
- Feature: Quick Disconnect No
- Wireless No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SG-TL70-W-L on Powermatic Associates is $90.00. Order now.
About the product
Banner Engineering SG-TL70-W-L is a light unit within the Modular series, featuring a 1-color White LED illumination designed for tow light module applications. It is constructed with Polycarbonate (PC) windows and segments, and a Polycarbonate (PC) base, ensuring durability. The unit has a cylindrical shape with a diameter of 70mm / 2-3/4" and comes in a black housing. It operates on a supply voltage range of 12Vdc-30Vdc, with a nominal 24Vdc, and has a current consumption of 420mA. Designed to withstand ambient air temperatures ranging from -40°C to +50°C, it offers a degree of protection rated at IP65, making it suitable for a variety of environmental conditions.
