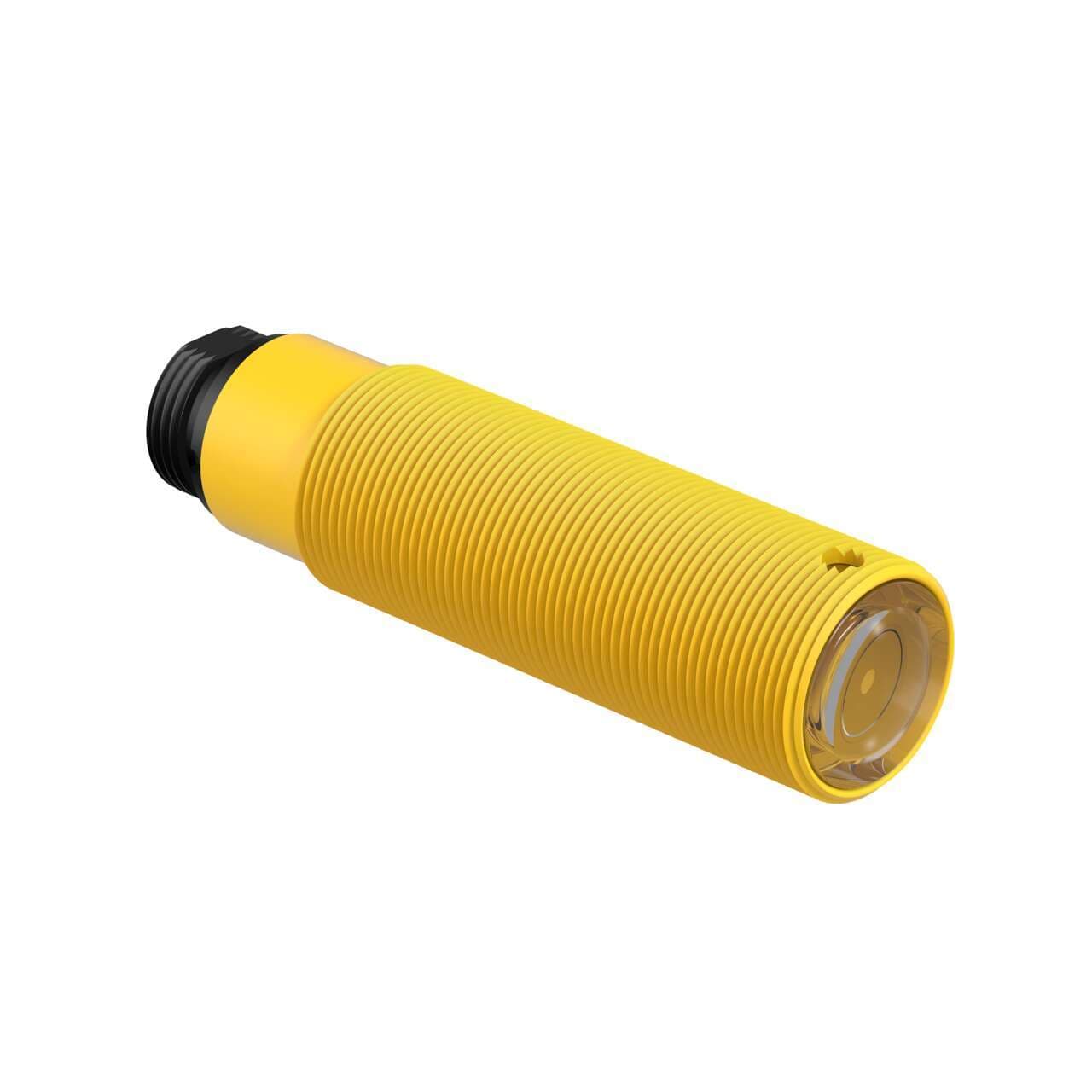

SMI30AN6RYQ Banner Proximity Sensors

Name: SMI30AN6RYQ
Brand: Banner
Price: 213 USD
Availability: BackOrder

Part#:SMI30AN6RYQ

Alt. Part#:35279

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

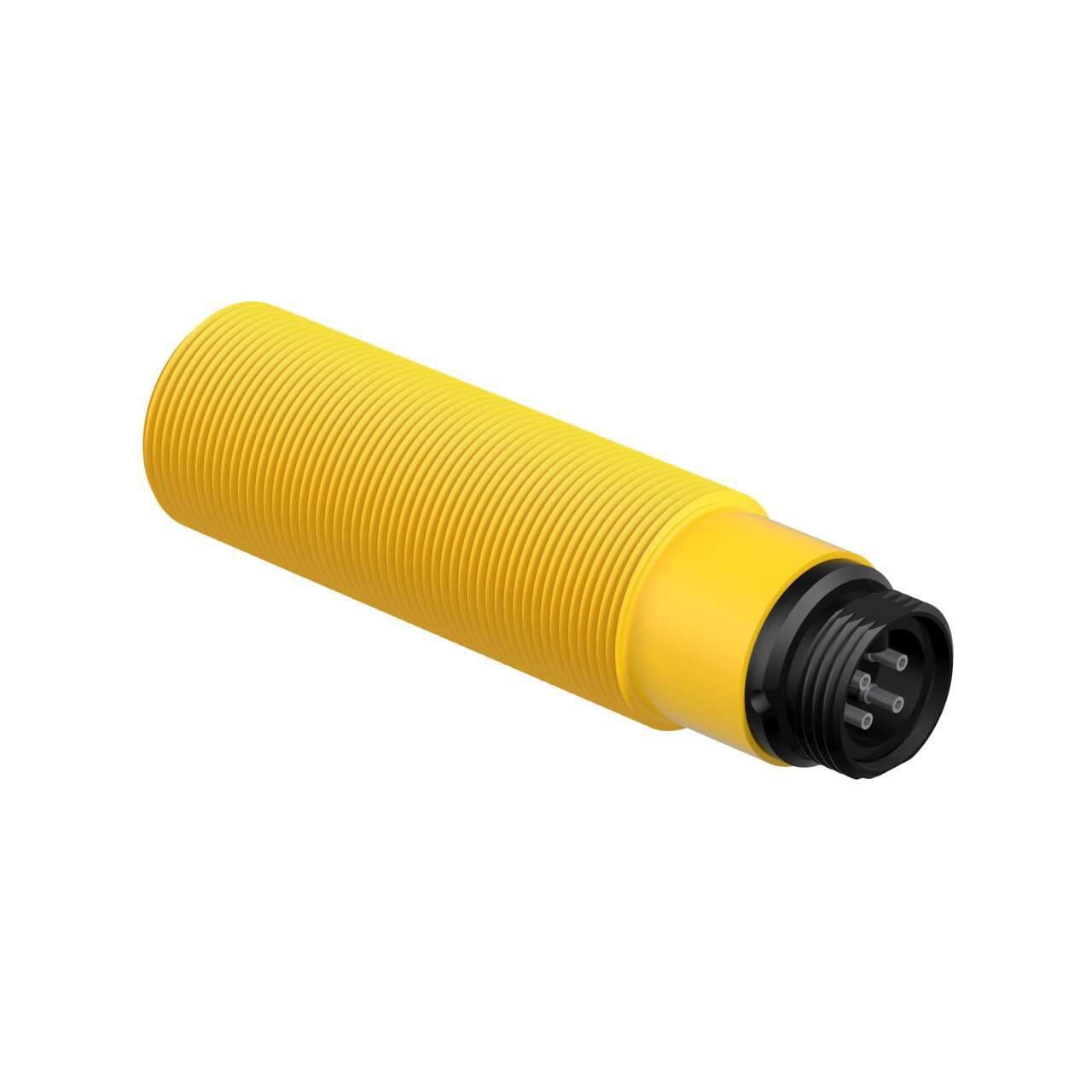

SMI30 Series: Receiver - Frequency A; Range: 60 m; Input: 10-30 V dc; Output: Light Operate - I.S. Interface; 3-pin Mini Integral QD

Product Details

Weight
161.478752 g
Country Of Origin
MX
Sub-range name
SMI30 series
Functions
Intrinsically-safe photo-electric sensor receiver red LED (power ON)
Connection type
Pre-equipped with 3-pin 7/8" Mini connector
Material
thermoplastic housing Acrylic lns.
Main function
Sensor (Photo-electric)
Design
through-beam system / opposed mode
Shape
Cylindrical threaded/barrel
Digital outputs
1 x digital output (NPN transistor)
Order code / Manufacturer SKU
35279
Response time
1ms / 0.001 s
Wavelength
880 nm
Compliant with standard(s)
CE ATEX Ex cFMus CSA NRTL/C Exia ATEX II 2 G Ex ib IIC T5 Ta I / 1 / Ex ib / IIC / T5 Ta I / 1 / AEx ib / IIC / T5 Ta IEEx Ex ib IIC T5 Ta IEC IECEx FMG 14.0029X ATEX FM12ATEX0094X FM CoC 0003046293 FM CoC 0003046293C
Thread size
M30
Light Color
Infrared (IR)
Degree of protection
IP67 NEMA 6P
Benefits
Very high excess gain Highly immune to noise
Primary brand
Banner Engineering
Supply voltage (DC)
10Vdc-30Vdc (12Vdc / 24Vdc nom.)

Sensing distance

60m

Ambient air temperature for operation

-40...+70 °C

Operating mode

Light-ON

Sensing Beam

Infrared LED

Min Op. Temp. (°C)

-40

Repeatability (µs)

360

Feature: Timing (Hold/Delay)

Special Feature: Remote Teach

Max Sensing Distance (mm)

60000

Lens Material

Acrylic

Feature: Hazardous Area

Yes

IO Link

Sensing Mode (General)

Opposed

Power Supply/Supply Voltage

10-30 V dc

Number of Pins

Opposed Mode Emitter/Receiver

Receiver

Outputs

NPN

Special Feature: Water Detection

Operation

Light Operate

Indicator

LEDs

DeviceNet

Housing Style

Barrel

Quick Disconnect Type

7/8 in. (Mini)

Max Op. Relative Humidity [%]

90% @ 50°C

Primary Housing Material

Thermoplastic

Max Op. Temp. (°C)

Output response time (ms)

Feature: Encapsulated

Yes

Sensing Mode (Detailed)

Receiver

Special Feature: Intrinsically Safe

Yes

NEMA Rating

NEMA 6P

Feature: Audible

Power

Connection

Integral QD

Delay at Power-up (ms)

N/A

Barrel Diameter (mm)

Input/Output

Discrete

IP Rating

IP67

Adjustments

N/A

Feature: Chemical Resistant

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SMI30AN6RYQ on Powermatic Associates is $213.00. Order now.

About the product

Banner Engineering SMI30AN6RYQ is a photo-electric sensor from the SMI30 series designed with a through-beam system or opposed mode "A" modulation frequency. This intrinsically-safe photo-electric sensor, serving as the receiver component, is encased in a thermoplastic housing with an acrylic lens. It comes pre-equipped with a 3-pin 7/8" mini connector for connectivity. The sensor operates on a supply voltage range of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. It is designed to function within an ambient air temperature range of -40 to +70°C and offers a degree of protection rated at IP67 NEMA 6P, making it suitable for harsh environmental conditions. The SMI30AN6RYQ features a cylindrical threaded/barrel shape with an M30 thread size, and it includes 1 x digital output (NPN transistor). It boasts a sensing distance of up to 60 meters and utilizes infrared (IR) light with a wavelength of 880 nm. The sensor's response time is 1ms (0.001 s), and it operates in Light-ON mode.
