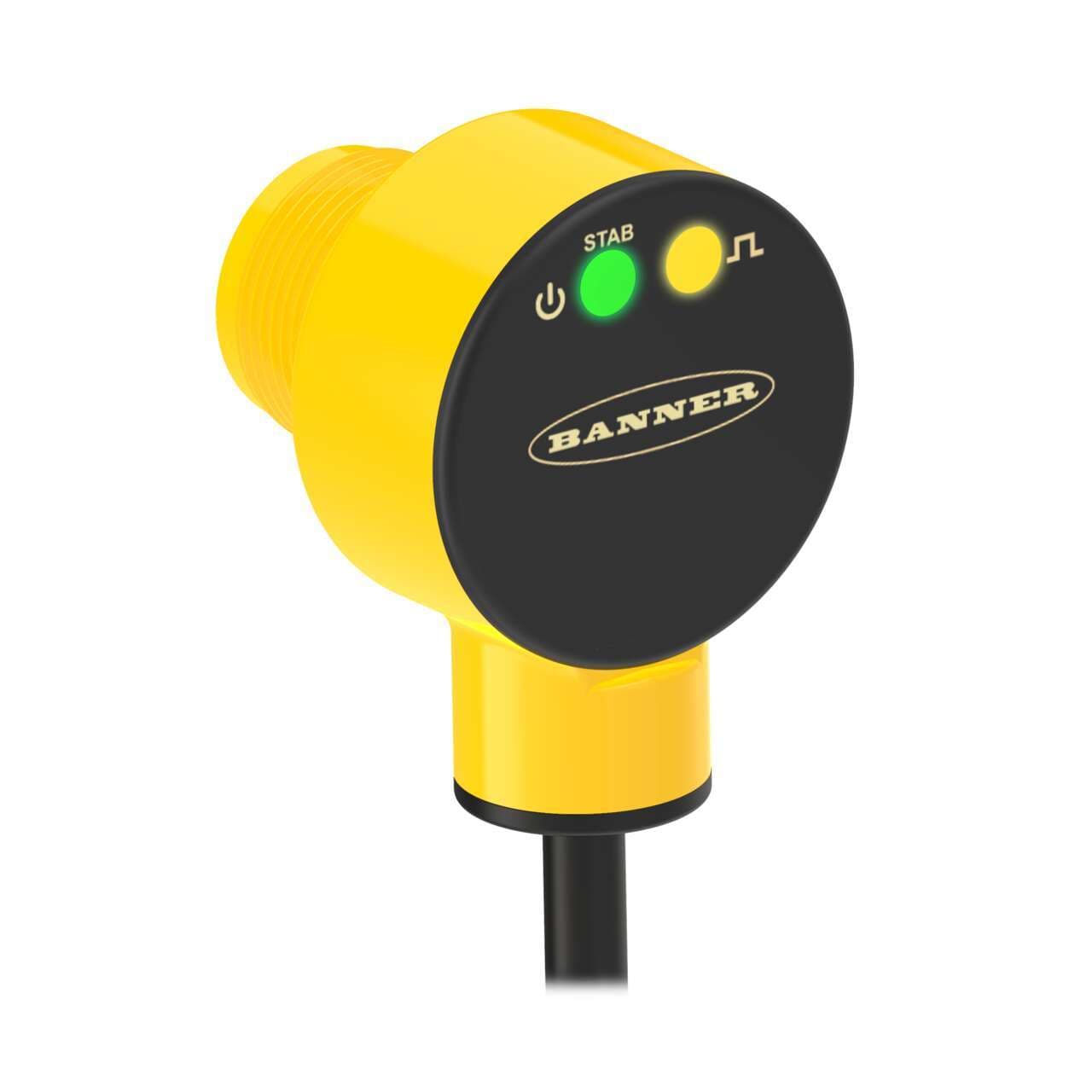

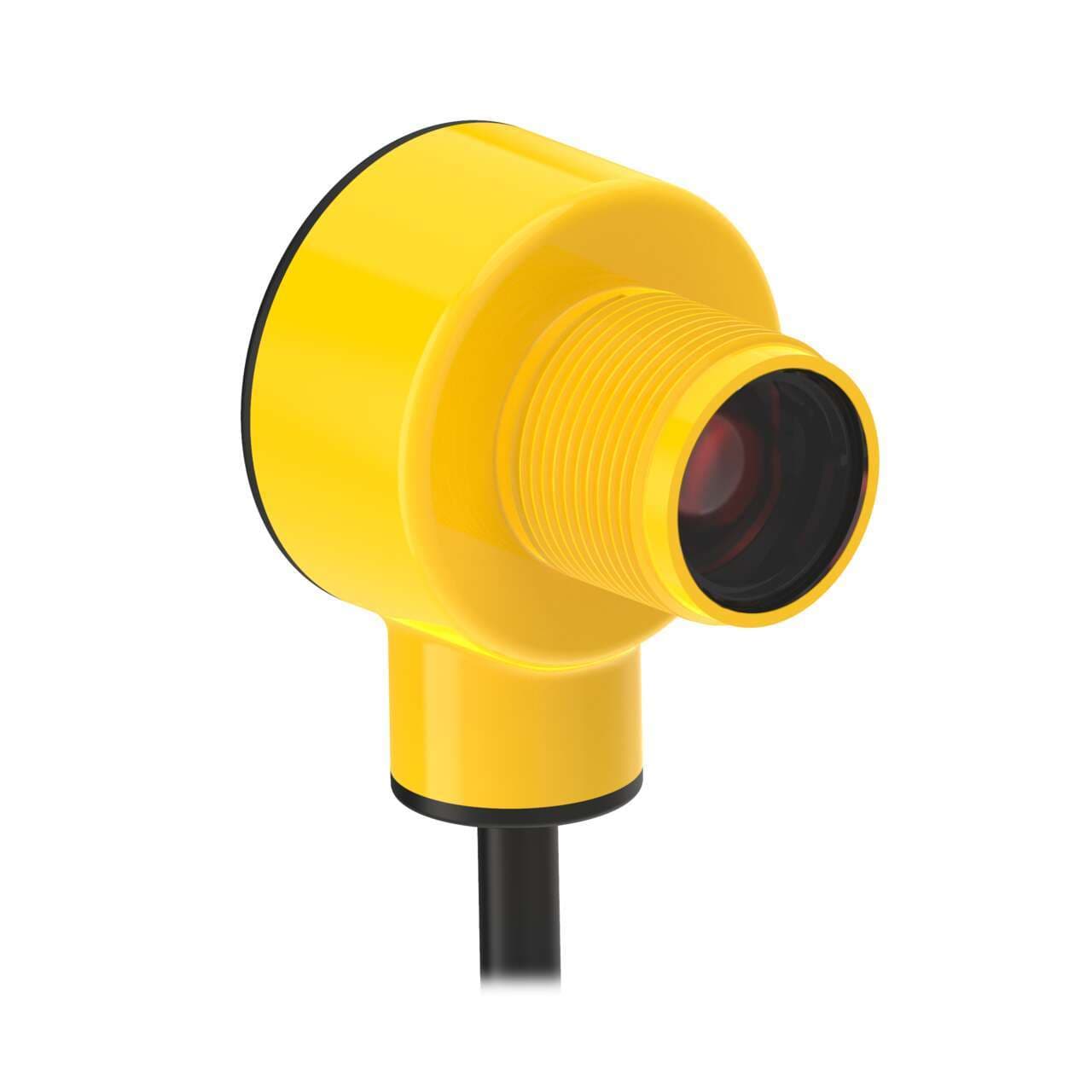

T18-2VPRL-9M Banner Proximity Sensors
Part#:T18-2VPRL-9M
Alt. Part#:802606
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
T18-2 Series: Receiver; Range: 25 m; Input: 10-30 V dc; Outputs: complementary PNP; 9 m 4-conductor PVC Cable
Product Details
- Weight 340.194 g
- Country Of Origin MX
- Special Feature: Intrinsically Safe No
- Max Op. Relative Humidity [%] 95% @ 50°C
- Feature: Hazardous Area No
- Output response time (ms) 1.5
- Feature: Washdown Rated Yes
- Lens Material Acrylic
- Feature: Audible No
- Special Feature: Water Detection No
- Number of Pins 4
- Feature: Encapsulated Yes
- Sensing Beam Visible Red or IR
- Max Sensing Distance (mm) 25000
- Quick Disconnect Type No QD
- Max Op. Temp. (°C) 70
- Sensing Beam Wavelength 624
- Connection Cable
- Min Op. Temp. (°C) -40
- Sensing Mode (General) Opposed
- Input/Output Discrete
- Special Feature: Remote Teach No
- Housing Style Barrel
- Power Supply/Supply Voltage 10-30 V dc
- NEMA Rating NEMA 6P
- Indicator Indicator LEDs
- Barrel Diameter (mm) 18
- IO Link No
- Sensing Mode (Detailed) Receiver
- Outputs PNP
- IP Rating IP67, IP68, IP69
- Adjustments N/A
- Feature: Ecolab Certified Yes
- DeviceNet No
- Delay at Power-up (ms) 500
- Primary Housing Material Thermoplastic
- Operation Light/Dark Operate
- Feature: Timing (Hold/Delay) No
- Power DC
- Cable Length (m) 9
- Feature: Chemical Resistant Yes
- Repeatability (µs) 170
- Opposed Mode Emitter/Receiver Receiver
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of T18-2VPRL-9M on Powermatic Associates is $111.00. Order now.
About the product
Banner Engineering T18-2VPRL-9M is a photo-electric sensor from the T18-2 series designed with a through-beam system, functioning as the receiver part of the setup. It features a thermoplastic housing with an acrylic lens and is pre-wired with a 9m cable that terminates with bare end flying leads. This sensor operates within a supply voltage range of 10Vdc to 30Vdc, supporting nominal voltages of 12Vdc and 24Vdc. It is designed to work within an ambient air temperature range of -40 to +70°C. The T18-2VPRL-9M offers a high degree of protection with ratings of IP67, IP68, IP69K, and NEMA 6P, making it suitable for harsh environmental conditions. Its shape is an M18 cylindrical threaded/barrel, and it includes 1 x digital output (PNP transistor; complementary). The sensing distance is up to 25m, utilizing visible red light for detection, and it has a quick response time of 1.5ms. This sensor supports both Light-ON and Dark-ON operating modes and is equipped with an M18 thread size.
