TL50BL3AOSIKQ Banner Signal Towers
Part#:TL50BL3AOSIKQ
Alt. Part#:805008
Manufacturer:Banner
Category:Signal Towers
Product Lifecycle:Active
Product description

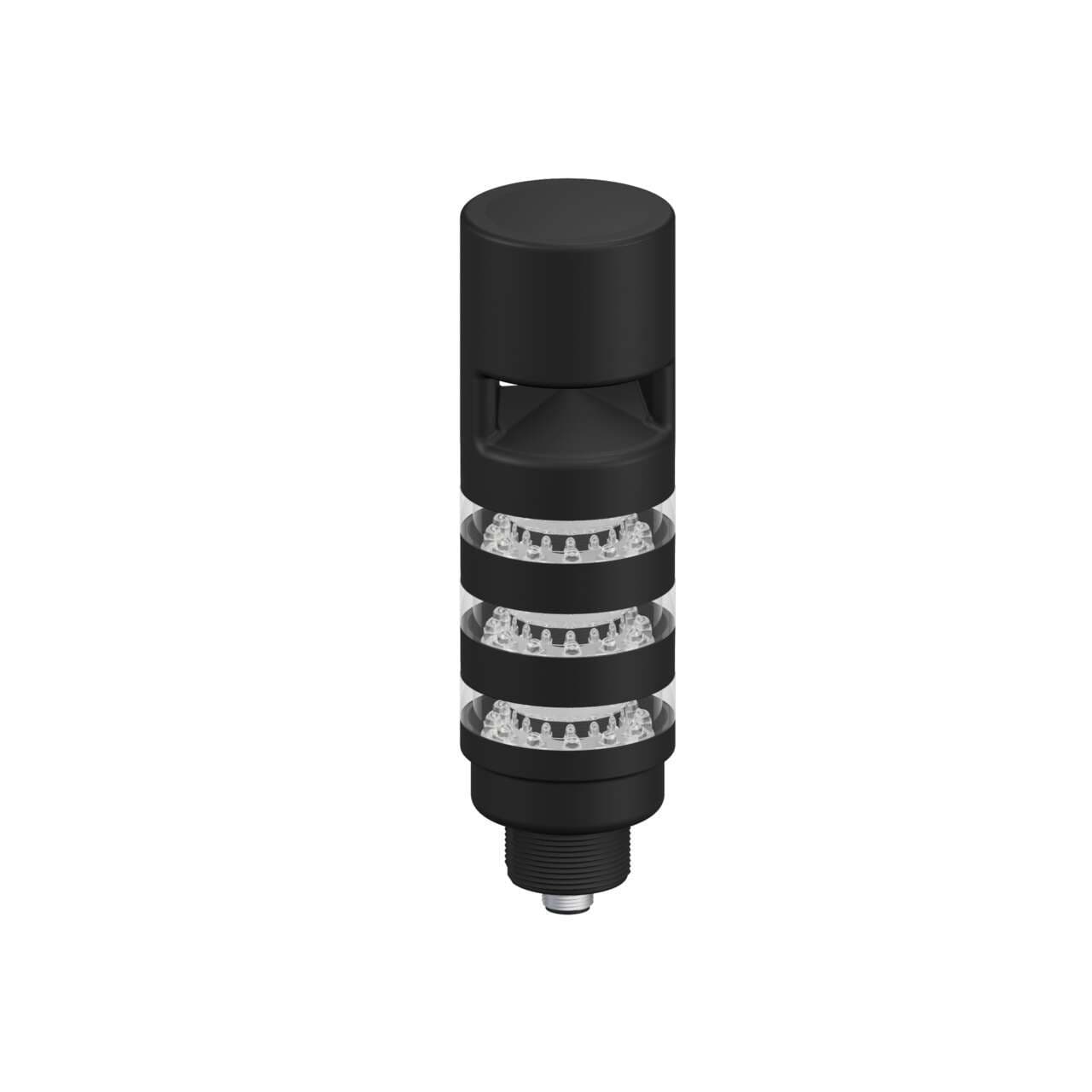

TL50 Pro Tower Light with IO-Link Sealed Omnidirectional Audible with Volume Adjust, Beacon Black Housing: 3 Lighted Segments; Voltage: 18-30 V dc; Environmental Rating: IP67; Colors: Multicolor; 4-pin M12 Integral QD
Product Details
- Weight 281.22704 g
- Country Of Origin MX
- Number of Colors / Segments 3
- Quick Disconnect Type M12 (Euro)
- Max Input Response Time (ms) 20
- Feature: Hazardous Area No
- Wireless No
- Primary Housing Material ABS
- Connection Integral QD
- Audible Operating Frequency (kHz) 2.1
- Primary Window Material Polycarbonate Clear
- Indication Yes
- Dimming Option Programmable
- Min Audible Intensity (db at 1m) 83
- Primary Housing Color Black
- Pro-Editor Compatible (Discrete) No
- Color Input Control Communication Protocol
- Max Current Color (mA) 100
- Environmental Rating IP67
- Multi-Color Device Simultaneous Colors On
- Mounting Thread M30 x 1.5
- Animation Option 1 Programmable
- Max Current - Audible Alarm (mA) 45
- Feature: Audible Yes
- Max Audible Intensity (db at 1m) 95
- Max Op. Temperature (°C) 50
- IO Link Yes
- Power Source DC
- Number of Tower Light Segments 4
- Input Type Communication Protocol
- Max Op. Relative Humidity Non-Condensing (%) 95% @ 50°C
- Indication Intensity High Brightness & Daylight Visible
- Power DC
- Color Technology RGB IO-Link
- Audible Alarm Type Adjustable Continuous
- NEMA Type and UL Type Rating NEMA and UL 13
- Feature: Quick Disconnect Yes
- Product Size (mm) 50
- Number of Input Pins/Conductors 4
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 193.2
- Feature: Chemical Resistant No
- Housing Style Base Mount - Tower
- Color Option 1 RGB
- Supply Voltage 18-30 V dc
- Min Op. Temperature (°C) -20
- Modbus RTU No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of TL50BL3AOSIKQ on Powermatic Associates is $431.00. Order now.
About the product
Banner Engineering TL50BL3AOSIKQ is a tower light featuring a monolithic design with continuous sound of adjustable intensity and is IO-Link compatible. It has 3 tiers and offers 14-color multicolor LED illumination. The construction includes polycarbonate (PC) windows and segments with an ABS base and covers. This product has a diameter of 50mm / 2 inches and comes pre-equipped with a 4-pin M12 Euro-style QD connector. The housing is black, and it operates on a supply voltage of 24Vac (50Hz/60Hz) or 18Vdc-30Vdc (24Vdc nom.). It supports surface or base pole mounting with an M30 thread and can operate in ambient air temperatures ranging from -20°C to +50°C. The TL50BL3AOSIKQ offers a degree of protection rated at IP67, NEMA 13, UL type 13, and has a cylindrical shape. Its current consumption is 100mA.
