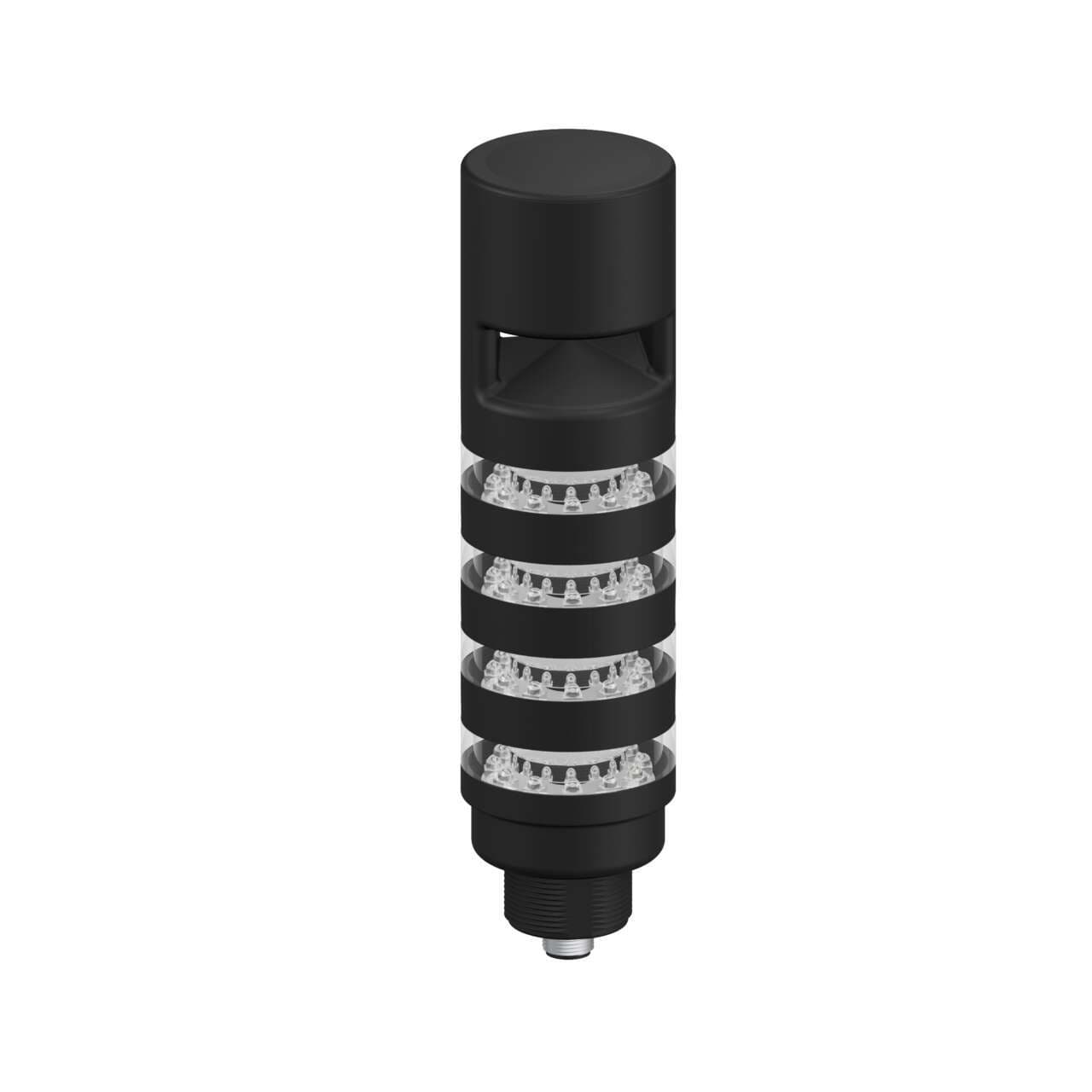

TL50BL4AOSIKQ Banner Signal Towers
Part#:TL50BL4AOSIKQ
Alt. Part#:807944
Manufacturer:Banner
Category:Signal Towers
Product Lifecycle:Active
Product description
TL50 Pro Tower Beacon Light with IO-Link, Sealed Omnidirectional Audible Indicator w/ Intensity Adjust, Black Housing: 4 Lighted Segments; Voltage: 18-30 V dc; Environmental Rating: IP50; Colors: Multicolor; 4-pin M12 Intetgral Connector
Product Details
- Weight 281.22704 g
- Country Of Origin MX
- Mounting Thread M30 x 1.5
- Color Technology RGB IO-Link
- Supply Voltage 18-30 V dc
- Audible Operating Frequency (kHz) 2.1
- Feature: Audible Yes
- Number of Colors / Segments 4
- Animation Option 1 Programmable
- Max Input Response Time (ms) 20
- Feature: Hazardous Area No
- Color Input Control Communication Protocol
- Quick Disconnect Type M12 (Euro)
- Max Current - Audible Alarm (mA) 45
- Primary Window Material Polycarbonate Clear
- Wireless No
- Power Source DC
- Number of Tower Light Segments 5
- Input Type Communication Protocol
- NEMA Type and UL Type Rating NEMA and UL 13
- IO Link Yes
- Indication Yes
- Max Current Color (mA) 100
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 181.9
- Primary Housing Color Black
- Pro-Editor Compatible (Discrete) No
- Primary Housing Material ABS
- Connection Integral QD
- Max Audible Intensity (db at 1m) 95
- Max Op. Temperature (°C) 50
- Indication Intensity High Brightness & Daylight Visible
- Product Size (mm) 50
- Number of Input Pins/Conductors 4
- Min Audible Intensity (db at 1m) 62
- Max Op. Relative Humidity Non-Condensing (%) 95% @ 50°C
- Feature: Quick Disconnect Yes
- Power DC
- Dimming Option Programmable
- Min Op. Temperature (°C) -20
- Multi-Color Device Simultaneous Colors On
- Housing Style Base Mount - Tower
- Color Option 1 RGB
- Audible Alarm Type Adjustable Continuous
- Environmental Rating IP50
- Feature: Chemical Resistant No
- Modbus RTU No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of TL50BL4AOSIKQ on Powermatic Associates is $505.00. Order now.
About the product
Banner Engineering TL50BL4AOSIKQ is a tower light featuring a monolithic design with continuous sound adjustable in intensity and IO-Link compatibility. This 4-tier, 14-color multicolor LED illumination device is designed with polycarbonate windows and segments, and an ABS base and covers. It has a 50mm / 2" diameter and comes pre-equipped with a 4-pin M12 Euro-style QD connector. The housing is black, and it operates on a supply voltage of 24Vac (50Hz/60Hz) or 18Vdc-30Vdc (24Vdc nom.). It offers surface or base pole mounting options with an M30 thread. The ambient air temperature for operation ranges from -20°C to +50°C. This product is rated with a degree of protection of IP67, NEMA 13, and UL type 13, and has a cylindrical shape.
