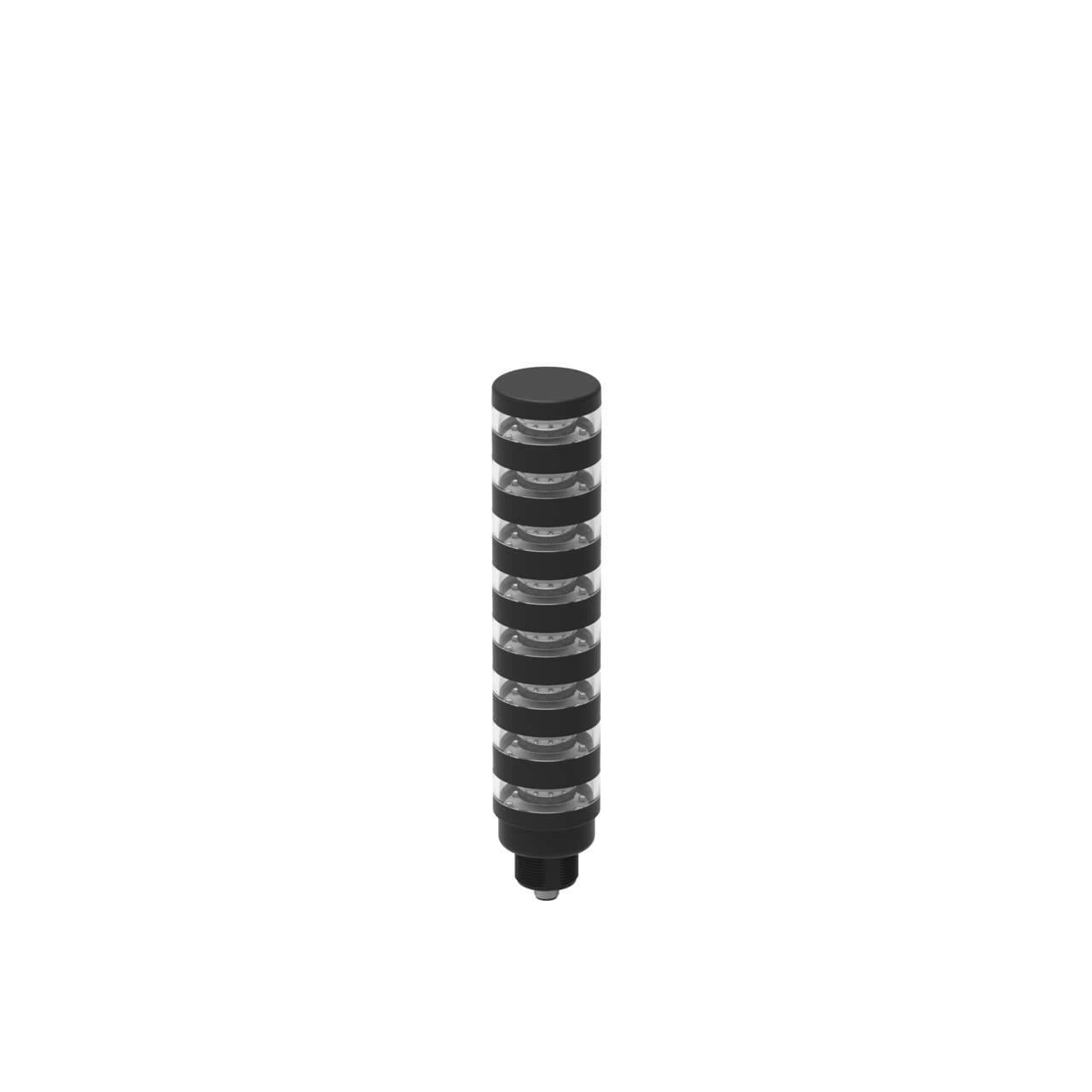

TL50BL8KQ Banner Signal Towers
Part#:TL50BL8KQ
Alt. Part#:804939
Manufacturer:Banner
Category:Signal Towers
Product Lifecycle:Active
Product description
TL50 Pro Tower Light with IO-Link, Beacon Black Housing: 8-Segment; Voltage: 18-30 V dc; Environmental Rating: IP67; Colors: Multicolor; 4-pin M12 Integral QD
Product Details
- Weight 39.008912 g
- Country Of Origin MX
- Color Input Control Communication Protocol
- Mounting Thread M30 x 1.5
- Max Current Color (mA) 100
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 254.2
- Feature: Chemical Resistant No
- Product Size (mm) 50
- Number of Tower Light Segments 8
- Input Type Communication Protocol
- Feature: Audible No
- Wireless No
- Power Source DC
- Number of Input Pins/Conductors 4
- Max Op. Relative Humidity Non-Condensing (%) 95% @ 50°C
- Multi-Color Device Simultaneous Colors On
- Primary Housing Material ABS
- Number of Colors / Segments 8
- Connection Integral QD
- Dimming Option Programmable
- Feature: Hazardous Area No
- Min Op. Temperature (°C) -40
- Feature: Quick Disconnect Yes
- Indication Yes
- Power DC
- Color Technology RGB IO-Link
- Animation Option 1 Programmable
- Supply Voltage 18-30 V dc
- Environmental Rating IP67
- Max Op. Temperature (°C) 50
- Primary Housing Color Black
- Indication Intensity High Brightness & Daylight Visible
- IO Link Yes
- Housing Style Base Mount - Tower
- Color Option 1 RGB
- Max Input Response Time (ms) 20
- Primary Window Material Polycarbonate Clear
- Pro-Editor Compatible (Discrete) No
- Quick Disconnect Type M12 (Euro)
- NEMA Type and UL Type Rating NEMA and UL 13
- Modbus RTU No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of TL50BL8KQ on Powermatic Associates is $703.00. Order now.
About the product
Banner Engineering TL50BL8KQ is a tower light featuring a monolithic design that is IO-Link compatible with 8 tiers and 14-color multicolor LED illumination. It is equipped with programmable tower or stack light functions. The construction includes polycarbonate (PC) windows and segments with an ABS base and covers. This part has a 50mm / 2" diameter and comes with a pre-equipped 4-pin M12 Euro-style QD connector. The housing is black, and it operates on a supply voltage of 24Vac (50Hz/60Hz) or 18Vdc-30Vdc (24Vdc nom.). It offers surface or base pole mounting options with an M30 thread. The TL50BL8KQ can operate in ambient air temperatures ranging from -40°C to +50°C and has a degree of protection rated at IP67, NEMA 13, UL type 13. Its cylindrical shape and current consumption of 100mA complete its specifications.
