TM18AP6FF25 Banner Electronic Components
Part#:TM18AP6FF25
Manufacturer:Banner
Category:Electronic Components
Product Lifecycle:Active
Product description

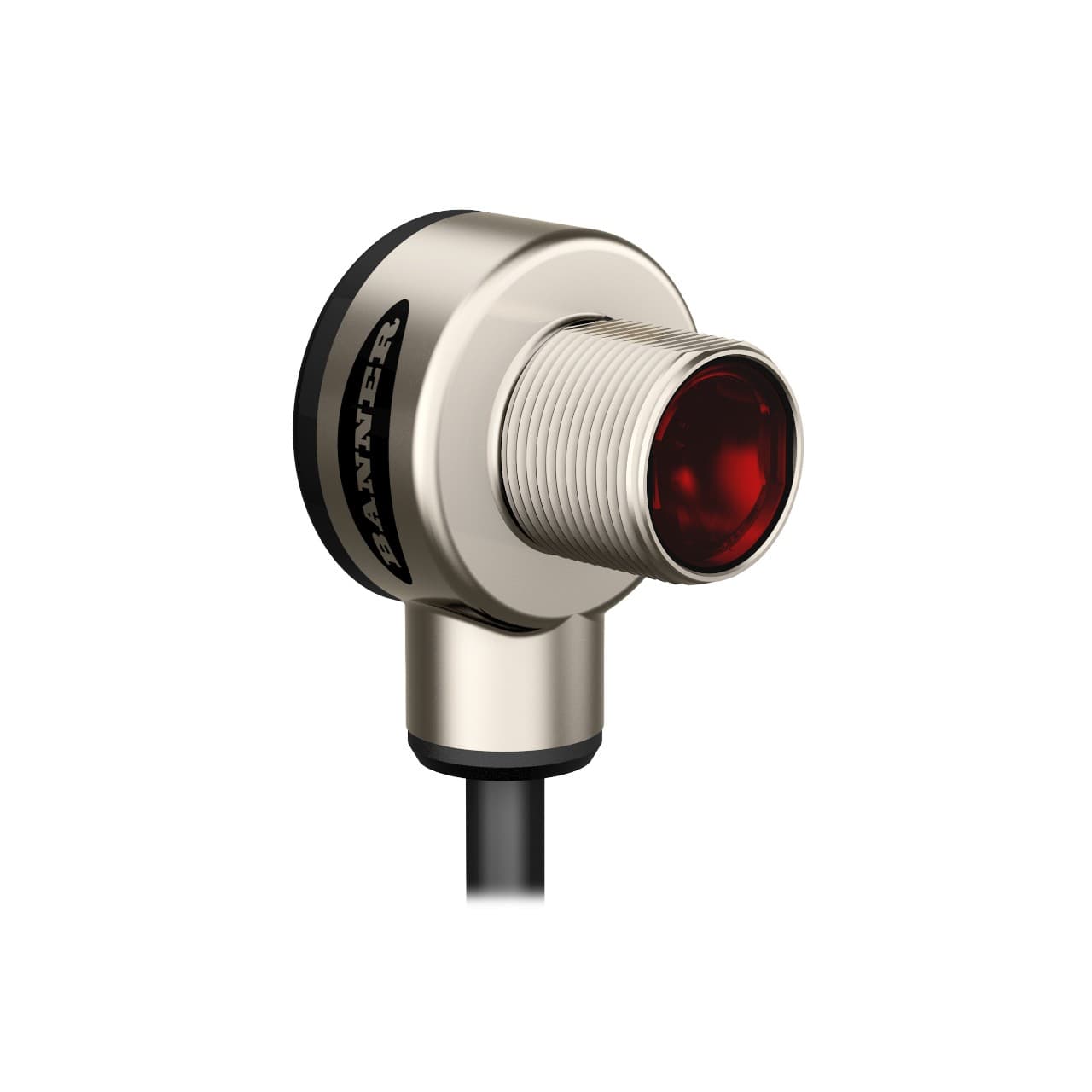

Banner Engineering TM18AP6FF25 is a fixed-field photo-electric sensor from the TM18 series, designed with a background suppression system and housed in a nickel-plated die-cast zinc with an acrylic lens. This sensor features a pre-wired connection with a 6.5ft / 2m cable terminated with bare end flying leads, and operates within a supply voltage range of 10Vdc-30Vdc, nominally at 12Vdc or 24Vdc. It is built to function in ambient air temperatures ranging from -40 to +70°C and offers a degree of protection rated at IP67 NEMA 6. The TM18AP6FF25 has an M18 cylindrical threaded/barrel shape, includes 1 x digital output (PNP transistor), and provides a sensing distance of 25mm. It operates with a visible red light, has a response time of 3ms / 0.003 s, functions in Light-ON operating mode, and utilizes a wavelength of 660 nm. The thread size for this sensor is M18.
Product Details
- Wavelength 660 nm
- Operating mode Light-ON
- Order code / Manufacturer SKU 42012
- Shape Cylindrical threaded/barrel
- Response time 3ms / 0.003 s
- Sensing distance 25mm
- Connection type Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Thread size M18
- Degree of protection IP67 NEMA 6
- Light Color Visible red
- Ambient air temperature for operation -40...+70 °C
- Functions Fixed-field photo-electric sensor green LED (power ON) yellow LED (output state)
- Digital outputs 1 x digital output (PNP transistor)
- Product series / family name EZ-BEAM series
- Sub-range name TM18 series
- Design background suppression system heavy-duty
- Material Nickel-plate die-cast Zinc housing Acrylic lns.
- Primary brand Banner Engineering
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Main function Sensor (Photo-electric)
- Compliant with standard(s) cULus CE
- Sensing Beam Visible Red LED
- Sensing Mode (General) Proximity
- Operation Light Operate
- Outputs PNP
- Output response time (ms) 3 ON/1.5 OFF
- Delay at Power-up (ms) 100
- IP Rating IP67
- Opposed Mode Emitter/Receiver N/A
- Adjustments N/A
- Primary Housing Material Zinc Die-Cast with Nickel-Plating
- Power DC
- Connection Cable
- Max Op. Temp. (°C) 70
- Special Feature: Remote Teach No
- Special Feature: Water Detection No
- NEMA Rating NEMA 6
- Max Op. Relative Humidity [%] 90% @ 50°C
- Barrel Diameter (mm) 18
- Feature: Encapsulated Yes
- Feature: Hazardous Area No
- IO Link No
- Sensing Mode (Detailed) Background Suppression (Fixed)
- Input/Output Discrete
- Quick Disconnect Type No QD
- Min Op. Temp. (°C) -40
- Special Feature: Intrinsically Safe No
- Number of Pins 3
- Cable Length (m) 2
- Housing Style Barrel
- Max Sensing Distance (mm) 25
- Power Supply/Supply Voltage 10-30 V dc
- Repeatability (µs) 185
- Lens Material Acrylic
- DeviceNet No
- Feature: Chemical Resistant No
- Feature: Audible No
- Feature: Washdown Rated Yes
- Indicator LEDs
- Feature: Timing (Hold/Delay) No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
