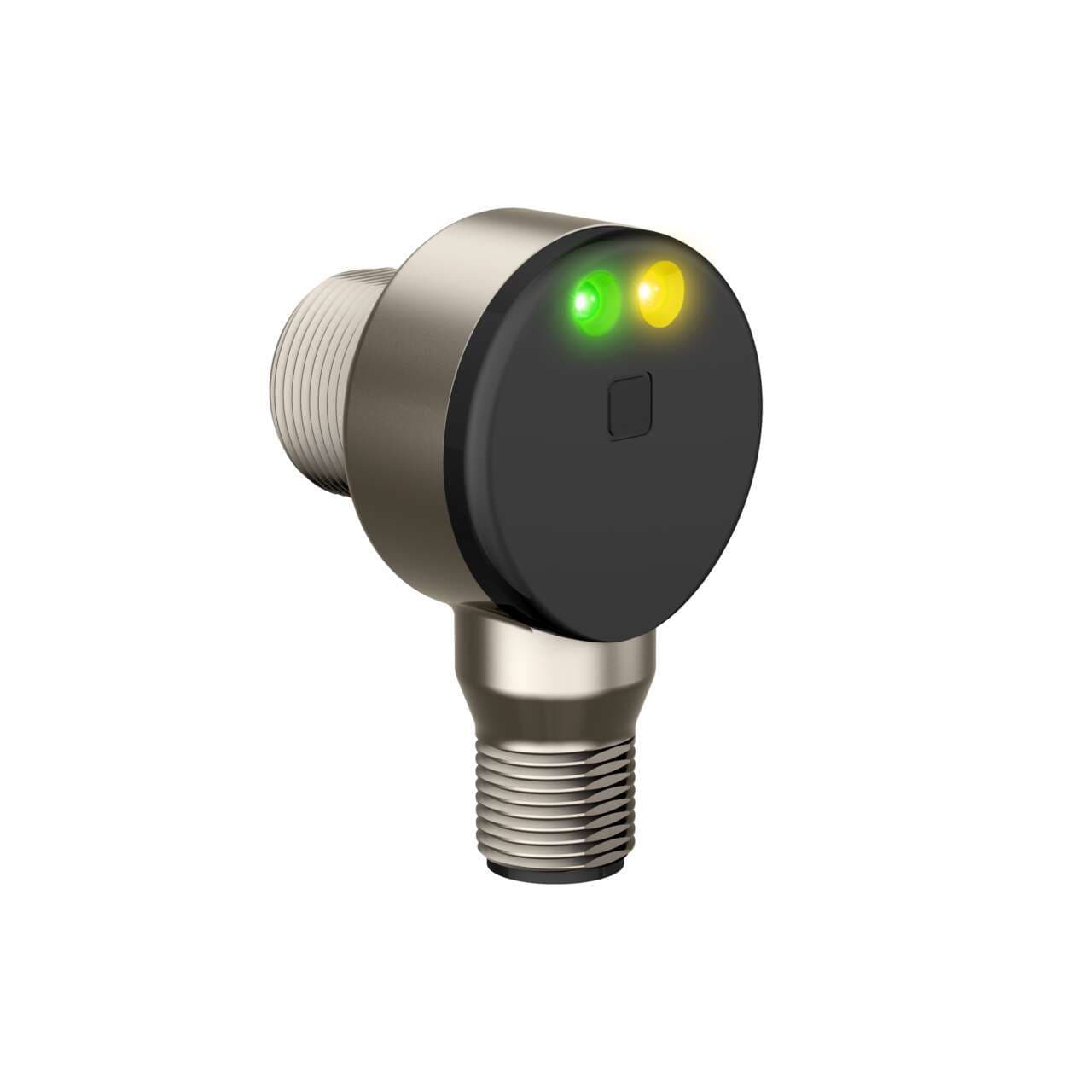

TM18VP6FF100IRQ8 Banner Proximity Sensors
Part#:TM18VP6FF100IRQ8
Alt. Part#:86484
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
TM18: IR Fixed Field Background Suppression; Range: 100 mm; Input: 10-30 V dc; Outputs: PNP Complementary; 4-pin M12 Integral QD
Product Details
- Weight 68.0388 g
- Country Of Origin MX
- Sensing Mode (General) Proximity
- Sensing Beam Infrared LED
- Max Op. Temp. (°C) 70
- IP Rating IP67, IP69
- Feature: Encapsulated Yes
- Input/Output Discrete
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Water Detection No
- Adjustments N/A
- Feature: Chemical Resistant No
- Sensing Mode (Detailed) Background Suppression (Fixed)
- Connection Integral QD
- Sensing Beam Wavelength 870
- Opposed Mode Emitter/Receiver N/A
- DeviceNet No
- Outputs PNP
- Quick Disconnect Type M12 (Euro)
- Repeatability (µs) 185
- Barrel Diameter (mm) 18
- Housing Style Barrel
- Min Op. Temp. (°C) -40
- Delay at Power-up (ms) 100
- Feature: Washdown Rated Yes
- Feature: Audible No
- Power DC
- Operation Light/Dark Operate
- NEMA Rating NEMA 6
- Feature: Timing (Hold/Delay) No
- Primary Housing Material Zinc Die-Cast with Nickel-Plating
- Special Feature: Remote Teach No
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Hazardous Area No
- Max Sensing Distance (mm) 100
- Output response time (ms) 3 ON/1.5 OFF
- Special Feature: Intrinsically Safe No
- Number of Pins 4
- Lens Material Acrylic
- Indicator LEDs
- IO Link No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of TM18VP6FF100IRQ8 on Powermatic Associates is $132.00. Order now.
About the product
Banner Engineering TM18VP6FF100IRQ8 is a fixed-field photo-electric sensor from the TM18 series, designed with a background suppression system and housed in a nickel-plated die-cast zinc with an acrylic lens. This sensor is pre-equipped with a 4-pin Euro-style M12 connector for connectivity and operates within a supply voltage range of 10Vdc-30Vdc, nominally at 12Vdc or 24Vdc. It is built to function within an ambient air temperature range of -40 to +70°C and offers a degree of protection rated at IP67, IP69K, and NEMA 6, ensuring durability in harsh environments. The sensor features a cylindrical threaded/barrel shape with an M18 thread size, a digital output via a PNP transistor, and a sensing distance of 100mm. It utilizes infrared light with a wavelength of 870 nm and has a response time of 3ms. The operating modes available are Light-ON and Dark-ON, catering to diverse application needs.
