VE201G1B Banner Vision Sensors

VE201G1B on Powermatic Associates
Banner
  • VE201G1B
  • VE201G1B

Part#:VE201G1B

Alt. Part#:810264

Manufacturer:Banner

Category:Vision Sensors

Product Lifecycle:Active

Product description

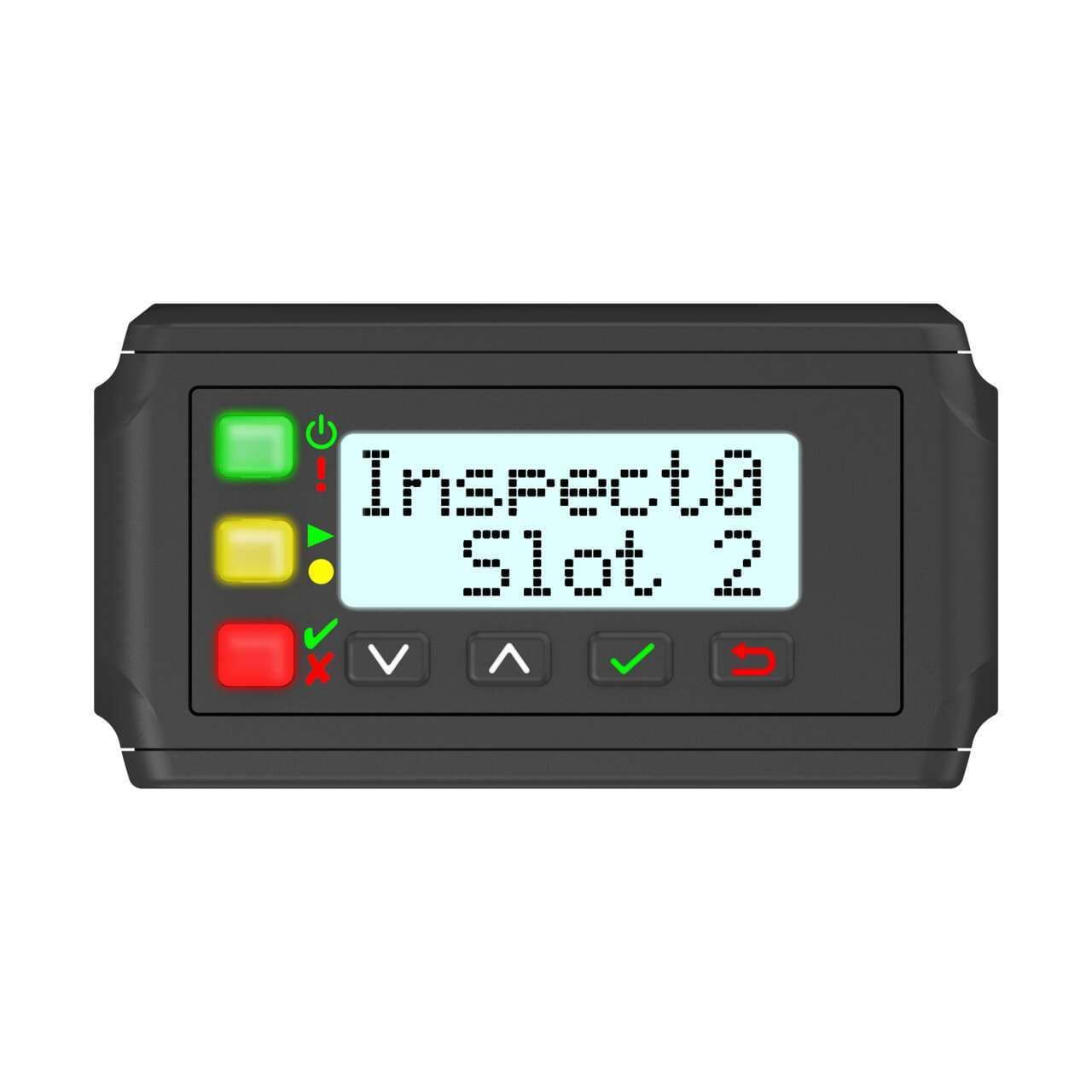

VE Series Smart Camera with ID Only; Pixels: 1280 x 1024; I/O: 6 Optically Isolated; Requires 1 MQDC2S-12XX and 1 STP-M12-8XX Cable; and 1 C-mount Lens

Product Details

  • Weight
    571.52592 g
  • Country Of Origin
    US
  • Camera Housing Size (HxWxL mm)
    88 x 67 x 41
  • USB
    No
  • Imager Type
    Grayscale
  • RS-232
    Yes
  • Feature: Washdown Rated
    Yes
  • Modbus/TCP
    Yes
  • IP Rating
    IP67
  • Device Type
    Imager BCR
  • EtherNet/IP
    Yes
  • Lens (mm)
    C-Mount
  • FTP
    Yes
  • Image Resolution
    1280 x 1024 pixels
  • PROFINET
    Yes
  • Feature: PC Interface
    Yes
  • Code Type
    1D, 2D
  • RS-422
    No
  • Primary Housing Material
    Aluminum
  • PCCC
    Yes

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of VE201G1B on Powermatic Associates is $2,774.00. Order now.

About the product

Banner Engineering VE201G1B is a digital industrial vision camera with a 1.3 Megapixel resolution, encased in an aluminium housing for durability. It offers a degree of protection rated at IP67, making it suitable for operation in environments with temperatures ranging from 0 to +50 degrees Celsius. This camera is designed for C-mount installation and features 5 digital outputs (PNP/NPN transistor), along with 1 digital input (trigger input). It supports multiple communication protocols including Ethernet/IP, Modbus TCP, RS-232, and PROFINET, ensuring compatibility with various industrial networks. The VE201G1B is equipped with a 12-pin Euro-style M12 male connector for power supply, a 3-pin M8 female connector for light, and a 4-pin Euro-style M12 female connector (D-coded) for Ethernet connections. It boasts a refresh rate of 60 frames per second, dimensions of 67 mm in width, 41 mm in depth, and 66 mm in height, and a memory capacity of 500MB for program storage. The camera operates on a supply voltage range of 12Vdc to 30Vdc, with 24Vdc as the nominal voltage, and is designed with ID only FTP PCCC functions.
