1376472 Festo Pneumatic Actuators
Part#:1376472
Alt. Part#:DSBC-32-125-PPSA-N3
Manufacturer:Festo
Category:Pneumatic Actuators
Product Lifecycle:Active
Product description

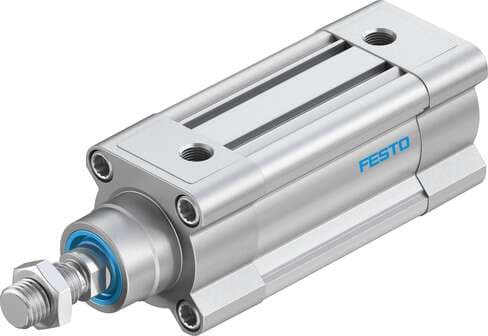

standards-based cylinder DSBC-32-125-PPSA-N3 with self-adjusting pneumatic end position cushioning Stroke: 125 mm, Piston diameter: 32 mm, Piston rod thread: M10x1,25, Cushioning: PPS: Self-adjusting pneumatic end-position cushioning, Assembly position: A
Product Details
- Piston rod wiper seal material TPE-U(PU)
- Flange screws material Steel, galvanized
- Cushioning Self-adjusting pneumatic end-position cushioning
- Cushion piston material POM
- Nut material Steel, galvanized
- Stroke 125 mm
- Mounting position Any
- Variants Piston rod at one end
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Type of mounting Optionally: With accessories
- Buffer seal material TPE-U(PU)
- Material of bearing POM
- Type code DSBC
- Position sensing For proximity sensor
- Mode of operation Double-acting
- Impact energy in the end positions 0.4 J
- Moving mass at 0 mm stroke 110 g
- Additional moving mass per 10 mm stroke 9 g
- Piston rod material High-alloy steel
- Piston seal material TPE-U(PU)
- Material of piston Wrought aluminum alloy
- Piston rod thread M10x1.25
- Design Piston Profile barrel
- Operating pressure 0.06 MPa ... 1.2 MPa
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Theoretical force at 6 bar, advancing 483 N
- Additional weight per 10 mm stroke 27 g
- Cover material Die-cast aluminum, coated
- Piston diameter 32 mm
- Piston rod end External thread
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Cushioning length 17 mm
- Basic weight with 0 mm stroke 465 g
- Material of cylinder barrel Wrought aluminum alloy, smooth-anodized
- Conforms to standard ISO 15552
- Symbol 00992970
- Ambient temperature -20 °C ... 80 °C
- Theoretical force at 6 bar, retracting 415 N
- Note on materials RoHS-compliant
- Pneumatic connection G1/8
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
