1489986 Festo Process & Media Valves

Name: 1489986
Brand: Festo

Part#:1489986

Alt. Part#:VZWP-L-M22C-N38-130-V-2AP4-40

Manufacturer:Festo

Category:Process & Media Valves

Product Lifecycle:Active

Product description

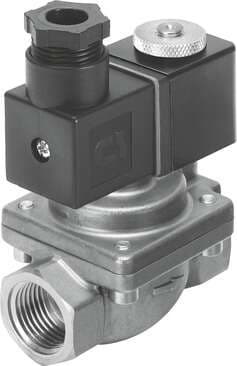

solenoid valve VZWP-L-M22C-N38-130-V-2AP4-40 Servo-controlled, with piston, NPT3/8" connection. Design structure: Pilot-actuated piston poppet valve, Type of actuation: electrical, Sealing principle: soft, Assembly position: Coil preferably on top, Mounti

Product Details

Sealing principle
Soft
Valve function
2/2, closed, monostable
Medium
Compressed air as per ISO 8573-1:2010 [7:4:4] Other flow media on request
Permissible voltage fluctuations
+/- 10 %
Symbol
00992974
Ambient temperature
-10 °C ... 35 °C
Material number of housing
CW617N
Product weight
575 g
Actuation type
Electrical
Electrical connection
Form A Rectangular design
Nominal width
13 mm
Insulation class
H
Medium pressure
0.5 bar ... 40 bar
Leak rate to EN 12266-1
A
Note on materials
Contains paint-wetting impairment substances RoHS-compliant
Material of screws
High-alloy stainless steel
CE marking (see declaration of conformity)
As per EU low voltage directive
Design
Pilot-controlled piston poppet valve
Type of mounting
Line installation
Manual override
None

Differential pressure

0.5 bar

Type of control

Pilot-controlled

Switching time off

250 ms

Seals material

FPM

Corrosion resistance class (CRC)

1 - Low corrosion stress

Mounting position

Coil preferably on top

Nominal pressure of fitting PN

Duty cycle

100%

Temperature of medium

-10 °C ... 80 °C

On switching time

100 ms

Housing material

Cast brass

Degree of protection

IP65

Type code

VZWP

Fitting connection

3/8 NPT

Flow direction

Non-reversible

Coil characteristics

110 V AC: 50/60 Hz, initial power 10.5 VA, holding power 8.0 VA

Max. viscosity

22 mm²/s

Flow rate Kv

2 m³/h

Standard nominal flow rate

2100 l/min

Material number of screw

1.4301

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

1489986 Related Documents

1489986 DataSheet.pdf

Manufacturer warranty

1489986 Festo
