1574644 Festo Servo Motors

1574644 on Powermatic Associates
Festo

Part#:1574644

Alt. Part#:EMMS-AS-140-S-HV-RR-S1

Manufacturer:Festo

Category:Servo Motors

Product Lifecycle:Active

Product description

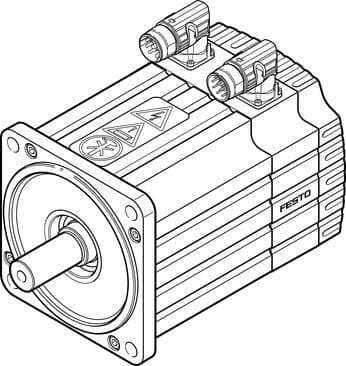

servo motor EMMS-AS-140-S-HV-RR-S1 Without gear unit. Ambient temperature: -40 - 40 °C, Storage temperature: -20 - 60 °C, Relative air humidity: 0 - 90 %, Conforms to standard: IEC 60034, Insulation protection class: F

Product Details

  • Number of pole pairs
    6
  • Max. rotational speed
    4510 1/min
  • Motor nominal current
    5.23 A
  • Peak torque
    27 Nm
  • MTTF, subcomponent
    114 years, rotor position sensor
  • Conforms to standard
    IEC 60034
  • Type code
    EMMS-AS
  • Temperature monitoring
    PTC resistor
  • Motor constants
    1.47 Nm/A
  • Phase-phase winding resistance
    1.6 Ohm
  • Rating class according to EN 60034-1
    S1
  • Relative air humidity
    0 - 90 %
  • Total output inertia moment
    8 kgcm²
  • Note on materials
    RoHS-compliant
  • Rotor position sensor
    Resolver
  • Rotor position sensor measuring principle
    Inductive
  • DC nominal voltage
    565 V
  • Voltage constant, phase-to-phase
    88.71 mVmin
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Ambient temperature
    -40 °C ... 40 °C
  • Nominal torque
    7.7 Nm
  • Permissible axial shaft load
    200 N
  • Electrical connection technology
    Plug
  • Nominal rotary speed
    3900 1/min
  • Motor nominal power
    3140 W
  • Type of winding switch
    Star inside
  • Storage temperature
    -20 °C ... 60 °C
  • Certification
    RCM compliance mark c UL us - Recognized (OL)
  • Permissible radial shaft load
    780 N
  • MTTFd, subcomponent
    228 years, rotor position sensor
  • Rotor position sensor interface
    SIN/COS analog signals
  • Insulation protection class
    F
  • Winding inductance phase-phase
    9.01 mH
  • Peak current
    24.4 A
  • CE marking (see declaration of conformity)
    As per EU EMC directive As per EU low voltage directive
  • Degree of protection
    IP65
  • Stall torque
    11.08 Nm
  • Product weight
    9840 g

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
