1908276 Festo Pneumatic Actuators

1908276 on Powermatic Associates
Festo

Part#:1908276

Alt. Part#:DSNU-16-20-PPS-A

Manufacturer:Festo

Category:Pneumatic Actuators

Product Lifecycle:Active

Product description

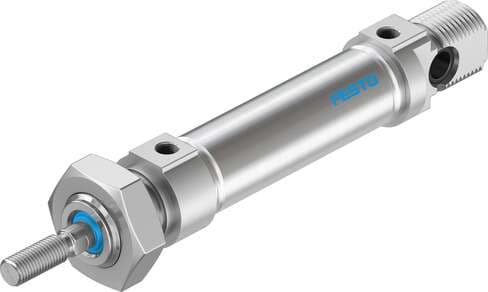

standards-based cylinder DSNU-16-20-PPS-A with self-adjusting pneumatic end position cushioning Stroke: 20 mm, Piston diameter: 16 mm, Piston rod thread: M6, Cushioning: PPS: Self-adjusting pneumatic end-position cushioning, Assembly position: Any

Product Details

  • Stroke
    20 mm
  • Cushioning
    Self-adjusting pneumatic end-position cushioning
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Theoretical force at 6 bar, retracting
    103.7 N
  • Mounting position
    Any
  • Design
    Piston Cylinder barrel
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Cushioning length
    12 mm
  • Moving mass at 0 mm stroke
    23 g
  • Pneumatic connection
    M5
  • Piston rod material
    High-alloy stainless steel
  • Piston diameter
    16 mm
  • Conforms to standard
    CETOP RP 52 P ISO 6432
  • Position sensing
    For proximity sensor
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Ambient temperature
    -20 °C ... 80 °C
  • Additional weight per 10 mm stroke
    4.6 g
  • Note on materials
    RoHS-compliant
  • Material of cylinder barrel
    High-alloy stainless steel
  • Maritime classification
    See certificate
  • Type code
    DSNU
  • Piston rod end
    External thread
  • Variants
    Piston rod at one end
  • Impact energy in the end positions
    0.15 J
  • Theoretical force at 6 bar, advancing
    120.6 N
  • Type of mounting
    With accessories
  • Piston rod thread
    M6
  • Operating pressure
    0.1 MPa ... 1 MPa
  • Mode of operation
    Double-acting
  • Additional moving mass per 10 mm stroke
    2 g
  • Seals material
    NBR TPE-U(PU)
  • Basic weight with 0 mm stroke
    89.9 g
  • Cover material
    Wrought aluminum alloy Plain anodized

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
