1908317 Festo Pneumatic Actuators

Name: 1908317
Brand: Festo

Part#:1908317

Alt. Part#:DSNU-25-60-PPV-A

Manufacturer:Festo

Category:Pneumatic Actuators

Product Lifecycle:Active

Product description

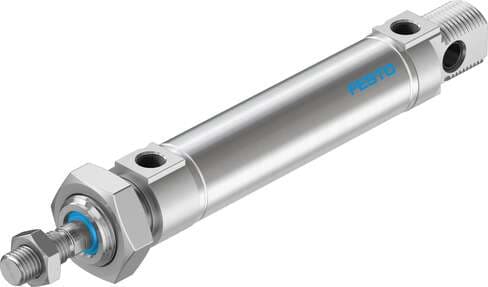

standards-based cylinder DSNU-25-60-PPV-A Based on DIN ISO 6432, for proximity sensing. Various mounting options, with or without additional mounting components. With adjustable end-position cushioning. Stroke: 60 mm, Piston diameter: 25 mm, Piston rod th

Product Details

Stroke
60 mm
Symbol
00991235
Variants
Piston rod at one end
Cushioning length
17 mm
Basic weight with 0 mm stroke
238 g
Additional moving mass per 10 mm stroke
6 g
Piston rod material
High-alloy stainless steel
Piston rod thread
M10x1.25
Piston rod end
External thread
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Impact energy in the end positions
0.3 J
Type of mounting
With accessories
Note on materials
RoHS-compliant
Piston diameter
25 mm
Mounting position
Any
Design
Piston Cylinder barrel
Mode of operation
Double-acting
Moving mass at 0 mm stroke
71 g
Pneumatic connection
G1/8
Cover material
Wrought aluminum alloy Plain anodized

Maritime classification

See certificate

Type code

DSNU

Cushioning

Pneumatic cushioning, adjustable at both ends

Operating pressure

0.1 MPa ... 1 MPa

Corrosion resistance class (CRC)

2 - Moderate corrosion stress

Additional weight per 10 mm stroke

11 g

Seals material

NBR TPE-U(PU)

Conforms to standard

CETOP RP 52 P ISO 6432

Position sensing

For proximity sensor

Operating medium

Compressed air as per ISO 8573-1:2010 [7:4:4]

Ambient temperature

-20 °C ... 80 °C

Theoretical force at 6 bar, advancing

294.5 N

Theoretical force at 6 bar, retracting

247.4 N

Material of cylinder barrel

High-alloy stainless steel

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

1908317 Related Documents

1908317 DataSheet.pdf
