1908320 Festo Pneumatic Actuators

Name: 1908320
Brand: Festo

Part#:1908320

Alt. Part#:DSNU-25-10-PPS-A

Manufacturer:Festo

Category:Pneumatic Actuators

Product Lifecycle:Active

Product description

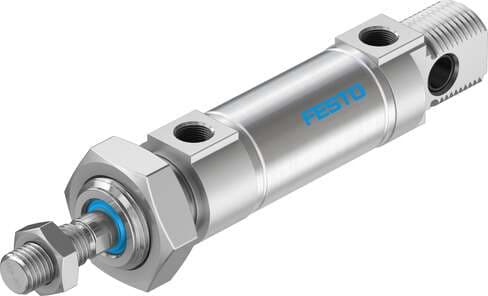

standards-based cylinder DSNU-25-10-PPS-A with self-adjusting pneumatic end position cushioning Stroke: 10 mm, Piston diameter: 25 mm, Piston rod thread: M10x1,25, Cushioning: PPS: Self-adjusting pneumatic end-position cushioning, Assembly position: Any

Product Details

Piston diameter
25 mm
Mounting position
Any
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Stroke
10 mm
Cushioning
Self-adjusting pneumatic end-position cushioning
Design
Piston Cylinder barrel
Mode of operation
Double-acting
Ambient temperature
-20 °C ... 80 °C
Pneumatic connection
G1/8
Material of cylinder barrel
High-alloy stainless steel
Variants
Piston rod at one end
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Cushioning length
17 mm
Type of mounting
With accessories
Seals material
NBR TPE-U(PU)
Maritime classification
See certificate
Type code
DSNU
Piston rod end
External thread
Operating pressure
0.1 MPa ... 1 MPa
Theoretical force at 6 bar, advancing
294.5 N

Moving mass at 0 mm stroke

71 g

Piston rod material

High-alloy stainless steel

Piston rod thread

M10x1.25

Corrosion resistance class (CRC)

2 - Moderate corrosion stress

Theoretical force at 6 bar, retracting

247.4 N

Basic weight with 0 mm stroke

238 g

Note on materials

RoHS-compliant

Cover material

Wrought aluminum alloy Plain anodized

Additional weight per 10 mm stroke

11 g

Conforms to standard

CETOP RP 52 P ISO 6432

Impact energy in the end positions

0.3 J

Additional moving mass per 10 mm stroke

6 g

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
