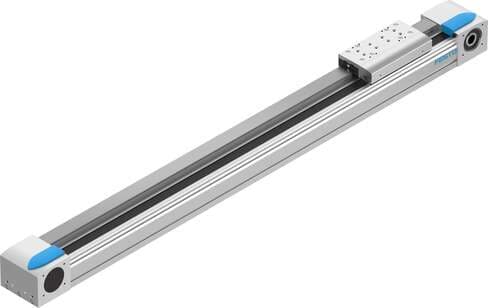

3013368 Festo Electric Actuators

Product Details

• Stroke reserve
  0 mm
• Mounting position
  Any
• Max. acceleration
  50 m/s²
• Duty cycle
  100%
• Max. force Fy
  6890 N
• Mass moment of inertia JL per kg of payload
  3.96 kgcm²
• Material of end caps
  Wrought aluminum alloy Anodized
• Toothed belt clamping component material
  Cast stainless steel
• Size
  120
• Guide
  Recirculating ball bearing guide
• Repetition accuracy
  ±0.08 mm
• Max. feed force Fx
  800 N
• Feed constant
  125 mm/U
• Drive cover material
  Wrought aluminum alloy Anodized
• Toothed belt material
  Polychloroprene with glass cord and nylon coating
• Type code
  EGC
• Toothed belt pitch
  5 mm
• Symbol
  00991212
• 2nd moment of area Ix
  4620000 mm⁴
• Max. torque Mx
  144 Nm
Mass moment of inertia JH per meter of stroke
0.93 kgcm²
Belt pulley material
High-alloy stainless steel
Working stroke
1000 mm
Design
Electromechanical linear axis with toothed belt
Motor type
Stepper motor Servo motor
Degree of protection
IP40
Max. no-load resistance to shifting
70 N
Torsion moment of inertia It
2680000 mm⁴
Profile material
Wrought aluminum alloy Anodized
Drive pinion effective diameter
39.79 mm
Toothed belt elongation
0.13 %
Max. speed
5 m/s
Ambient temperature
-10 °C ... 60 °C
2nd moment of area Iy
5650000 mm⁴
Max. force Fz
6890 N
Note on materials
Contains paint-wetting impairment substances RoHS-compliant
Guide rail material
Steel
Slide material
Wrought aluminum alloy Anodized
Slide carriage material
Steel
