33975 Festo Pneumatic Actuators

Name: 33975
Brand: Festo

Part#:33975

Alt. Part#:DSNU-25-25-PPV-A

Manufacturer:Festo

Category:Pneumatic Actuators

Product Lifecycle:Active

Product description

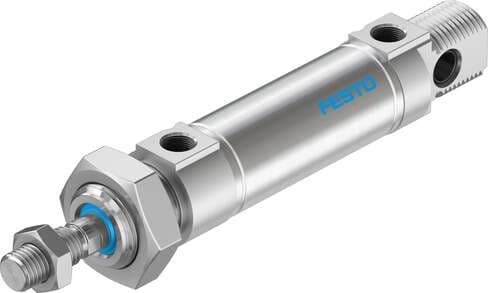

standards-based cylinder DSNU-25-25-PPV-A Based on DIN ISO 6432, for proximity sensing. Various mounting options, with or without additional mounting components. With adjustable end-position cushioning. Stroke: 25 mm, Piston diameter: 25 mm, Piston rod th

Product Details

Stroke
25 mm
Type code
DSNU
Piston rod thread
M10x1.25
Symbol
00991235
Cushioning length
17 mm
Piston rod end
External thread
Variants
Piston rod at one end
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Moving mass at 0 mm stroke
71 g
Basic weight with 0 mm stroke
238 g
Material of cylinder barrel
High-alloy stainless steel
Maritime classification
See certificate
Mounting position
Any
Operating pressure
0.1 MPa ... 1 MPa
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Impact energy in the end positions
0.3 J
Additional moving mass per 10 mm stroke
6 g
Type of mounting
With accessories
Cover material
Wrought aluminum alloy Plain anodized
Piston diameter
25 mm

Cushioning

Pneumatic cushioning, adjustable at both ends

Position sensing

For proximity sensor

Information on operating and pilot media

Operation with oil lubrication possible (required for further use)

Theoretical force at 6 bar, retracting

247.4 N

Pneumatic connection

G1/8

Conforms to standard

CETOP RP 52 P ISO 6432

Design

Piston Cylinder barrel

Mode of operation

Double-acting

Ambient temperature

-20 °C ... 80 °C

Additional weight per 10 mm stroke

11 g

Note on materials

RoHS-compliant

Seals material

NBR TPE-U(PU)

Theoretical force at 6 bar, advancing

294.5 N

Piston rod material

High-alloy stainless steel

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

33975 Related Documents

33975 DataSheet.pdf

Similar products from: Festo Pneumatic Actuators

536287

Festo

compact cylinder ADN-32-80-I-P-A Per ISO 21287, with position sensing and internal piston rod thread Stroke: 80 mm, Piston diameter: 32 mm, Piston rod thread: M8, Cushioning: P: Flexible cushioning rings/plates at both ends, Assembly position: Any

1 in stock

163403

Festo

standards-based cylinder DNC-63-50-PPV-A As per ISO 15552, with profile cylinder barrel, for proximity sensing, with adjustable cushioning at both end positions. Stroke: 50 mm, Piston diameter: 63 mm, Piston rod thread: M16x1,5, Cushioning: PPV: Pneumatic

1 in stock

1804669

Festo

standards-based cylinder DSBC-125-250-PPSA-N3 with self-adjusting pneumatic end position cushioning Stroke: 250 mm, Piston diameter: 125 mm, Piston rod thread: M27x2, Cushioning: PPS: Self-adjusting pneumatic end-position cushioning, Assembly position: An

6 in stock

536248

Festo

compact cylinder ADN-20-40-I-P-A Per ISO 21287, with position sensing and internal piston rod thread Stroke: 40 mm, Piston diameter: 20 mm, Piston rod thread: M6, Cushioning: P: Flexible cushioning rings/plates at both ends, Assembly position: Any

1 in stock

164043

Festo

flat cylinder DZF-32-80-P-A Non-rotating, for position sensing, with elastic cushioning rings in end positions. Various mounting options, with or without additional mounting components. Stroke: 80 mm, Piston diameter: (* 32 mm, * Equivalent diameter), Max

1 in stock

170860

Festo

guided drive DFM-32-100-P-A-GF With integrated guide. Centre of gravity distance from working load to yoke plate: 50 mm, Stroke: 100 mm, Piston diameter: 32 mm, Operating mode of drive unit: Yoke, Cushioning: P: Flexible cushioning rings/plates at both en

2 in stock

Manufacturer warranty

33975 Festo

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare 33975 with other Pneumatic Actuators products

Stroke

Type code

Piston rod thread

Symbol

Cushioning length

Piston rod end

Variants

Operating medium

Moving mass at 0 mm strok...

Basic weight with 0 mm st...

Selected product

Backordered

33975

Festo

standards-based cylinder DSNU-25-25-PPV-A Based on DIN ISO 6432, for proximity sensing. Various moun...

Stroke25 mm

Type codeDSNU

Piston rod threadM10x1.25

Symbol00991235

Cushioning length17 mm

Piston rod endExternal thread

VariantsPiston rod at one end

Operating mediumCompressed air as per ISO 85...

Moving mass at 0 mm stroke71 g

Basic weight with 0 mm stroke238 g

6 in stock

19252

Festo

standards-based cylinder DSNU-25-250-PPV-A Based on DIN ISO 6432, for proximity sensing. Various mou...

Stroke250 mm

Type codeDSNU

Piston rod threadM10x1.25

Symbol-

Cushioning length-

Piston rod endExternal thread

Variants-

Operating medium-

Moving mass at 0 mm stroke-

Basic weight with 0 mm stroke-

3 in stock

19232

Festo

standards-based cylinder DSNU-16-100-PPV-A Based on DIN ISO 6432, for proximity sensing. Various mou...

Stroke100 mm

Type codeDSNU

Piston rod threadM6

Symbol-

Cushioning length-

Piston rod endExternal thread

Variants-

Operating medium-

Moving mass at 0 mm stroke-

Basic weight with 0 mm stroke-

About the manufacturer

Powermatic Associates is an authorized Festo distributor, proudly offering a wide array of Festo's innovative industrial automation products and solutions. Festo is a globally recognized leader in automation technology and pneumatic solutions, renowned for their commitment to quality, efficiency, and sustainability. With a vast portfolio ranging from actuators, valves, sensors, and connectors to e...

Recently viewed products

MDI1FRL17C4-EQ-N

Novanta IMS

Novanta IMS MDI1FRL17C4-EQ-N is a stepper motor that features an integrated driver and operates as a 2-phase DC stepper motor. It is designed with an external single-end 512-line optical encoder, a rear control knob, and a triple motor stack in its Plus version, which includes standard features. This part offers a connection through 30cm / 12" bare end flying leads and a 10-pin friction-lock wire crimp connector. It supports RS-422 and RS-485 communication protocols. The supply voltage required for operation ranges from 12Vdc to 48Vdc, with an optimal performance at 24Vdc. It is mounted via a 42x42mm flange and can operate in ambient air temperatures ranging from 0 to +85°C. The MDI1FRL17C4-EQ-N has an IP20 degree of protection, a moment of inertia of 0.082kg.cm^2, a stall torque of 53N.cm, and offers a resolution of 1.8° step angle.

0 in stock

SF210

Lenze

Lenze SF210 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for precise control of motor speed and frequency. It features dimensions of H146mm x W73mm x D120mm and operates on a supply voltage of 200Vac-240Vac, supporting 208Vac, 220Vac, and 230Vac inputs. The rated current is 4.8A at 200Vac and 4.2A at 230Vac. This device can be mounted in a cabinet or on a DIN rail and is designed to operate within an ambient air temperature range of 0 to +50°C, with a derating of 2.5% per °C above +50°C. It utilizes an RS-485 communication protocol and operates with a network frequency of 48-62 Hz on input and 0-240 Hz on output. The SF210 includes 2 digital outputs (open-collector outputs; 50mA at 30Vdc), 2 analog inputs (1 x 0-10Vdc and 1 x 4-20mA), and 2 analog outputs (both 0-10Vdc or adjustable within specified ranges), suitable for various control applications. It supports a 3-phase network and delivers a rated active power of 0.75kW and a rated power of 1HP at 208-240Vac.

0 in stock

MDI1PRL23B7-EQ-N

Novanta IMS

Novanta IMS MDI1PRL23B7-EQ-N is a stepper motor that features an integrated driver and operates as a 2-phase DC stepper motor. It is designed with an external single-end 512-line optical encoder, a rear control knob, and a double motor stack in its Plus version, which includes standard features. The connection is facilitated through a non-locking spring-clamp connector and a 10-pin friction-lock wire crimp connector. It supports RS-422 and RS-485 communication protocols. The motor operates on a supply voltage range of 12Vdc to 75Vdc, with recommended voltages at 24Vdc, 48Vdc, and 72Vdc. It is mounted via a 57x57mm flange and can operate in ambient air temperatures ranging from 0 to +85°C. The stepper motor is rated with a degree of protection IP20, has a moment of inertia of 0.26kg.cm^2, a stall torque of 102N.cm, and offers a resolution of 1.8° step angle.

0 in stock

S15CM-PF-IQ

Banner

S15C Series: In-Line Converter; Voltage: 12-30 V dc; IP67; Female: PFM Output ; Male: Analog 4-20 mA Input; Male-Female 4-pin M12 QD

0 in stock

NI15-M30-Y1X-H1141

Turck

NI15-M30-Y1X-H1141 Turck - NI15-M30-Y1X-H1141 Inductive Sensor

0 in stock

542600

Festo

on-off valve MS4-EE-1/8-10V24-S Electrical, with silencer, direction of flow: from left to right Design structure: Piston slide, Type of actuation: electrical, Exhaust-air function: not throttleable, Manual override: Pushing, Type of reset: mechanical spr

0 in stock

MDI1FRL17C4-EQ-N

Novanta IMS

0 in stock

SF210

Lenze

0 in stock

MDI1PRL23B7-EQ-N

Novanta IMS

0 in stock

MDI1FRL17C4-EQ-N

Novanta IMS

0 in stock

SF210

Lenze

0 in stock

Relevant products

3394

Verified stock: 0

stem actuated valve VS-4-1/8 Piloted, normally closed. Valve function: 4/2 monostable, Type of actuation: mechanical, Standard nominal flow rate: 140 - 147 l/min, Operating pressure: 3,5 - 8 bar, Design structure: Poppet seat

Festo

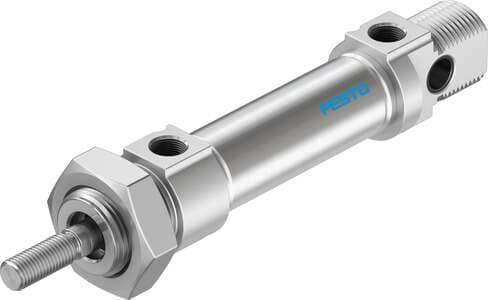

33974

Verified stock: 0

standards-based cylinder DSNU-20-25-PPV-A Based on DIN ISO 6432, for proximity sensing. Various mounting options, with or without additional mounting components. With adjustable end-position cushioning. Stroke: 25 mm, Piston diameter: 20 mm, Piston rod th

Festo

33970

Verified stock: 0

vacuum security valve ISV-1/4 For maintenance of vacuum if one or more suction cups within a group fail to make contact with the workpiece. Size: G1/4, Ejector pulse suitability: 8 bar, Assembly position: Any, Operating pressure: -0,95 - 0 bar, Required s

Festo

33971

Verified stock: 0

vacuum security valve ISV-3/8 For maintenance of vacuum if one or more suction cups within a group fail to make contact with the workpiece. Size: G3/8, Ejector pulse suitability: 8 bar, Assembly position: Any, Operating pressure: -0,95 - 0 bar, Required s

Festo

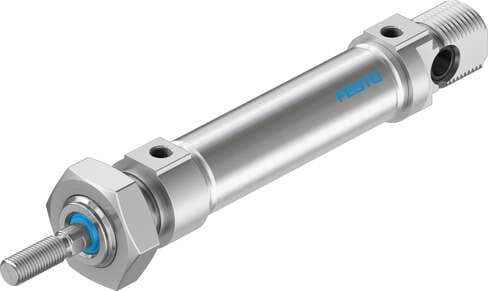

33973
