536266 Festo Pneumatic Actuators

Name: 536266
Brand: Festo

Part#:536266

Alt. Part#:ADN-25-50-I-P-A

Manufacturer:Festo

Category:Pneumatic Actuators

Product Lifecycle:Active

Product description

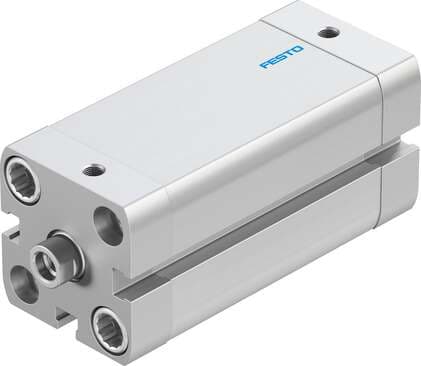

compact cylinder ADN-25-50-I-P-A Per ISO 21287, with position sensing and internal piston rod thread Stroke: 50 mm, Piston diameter: 25 mm, Piston rod thread: M6, Cushioning: P: Flexible cushioning rings/plates at both ends, Assembly position: Any

Product Details

Stroke
50 mm
Piston rod thread
M6
Mounting position
Any
Variants
Piston rod at one end
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Type of mounting
Optionally: With accessories
Note on materials
RoHS-compliant
Seals material
TPE-U(PUR)
Cushioning
Elastic cushioning rings/pads at both ends
Symbol
00991217
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Moving mass at 0 mm stroke
50 g
Additional moving mass per 10 mm stroke
6 g
Operating pressure
0.6 bar ... 10 bar
Piston rod end
Internal thread
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Ambient temperature
-20 °C ... 80 °C
Additional weight per 10 mm stroke
23 g
Piston diameter
25 mm
Conforms to standard
ISO 21287

Impact energy in the end positions

0.3 J

Theoretical force at 6 bar, advancing

295 N

Pneumatic connection

Piston rod material

High-alloy steel

Type code

ADN

Position sensing

For proximity sensor

Mode of operation

Double-acting

Theoretical force at 6 bar, retracting

247 N

Basic weight with 0 mm stroke

156 g

Cover material

Aluminum Anodized

Material of cylinder barrel

Wrought aluminum alloy Smooth anodized

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
