536275 Festo Pneumatic Actuators

Name: 536275
Brand: Festo

Part#:536275

Alt. Part#:ADN-32-50-A-P-A

Manufacturer:Festo

Category:Pneumatic Actuators

Product Lifecycle:Active

Product description

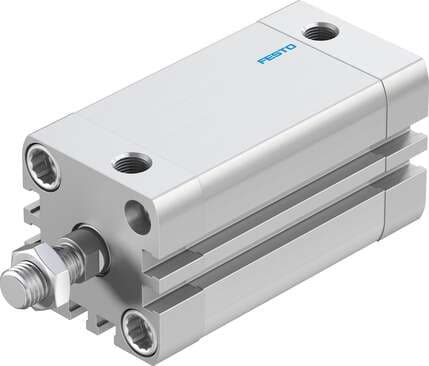

compact cylinder ADN-32-50-A-P-A Per ISO 21287, with position sensing and external piston rod thread Stroke: 50 mm, Piston diameter: 32 mm, Piston rod thread: M10x1,25, Cushioning: P: Flexible cushioning rings/plates at both ends, Assembly position: Any

Product Details

Position sensing
For proximity sensor
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Theoretical force at 6 bar, advancing
483 N
Additional weight per 10 mm stroke
30 g
Cover material
Aluminum Anodized
Material of cylinder barrel
Wrought aluminum alloy Smooth anodized
Piston diameter
32 mm
Mounting position
Any
Conforms to standard
ISO 21287
Symbol
00991217
Ambient temperature
-20 °C ... 80 °C
Basic weight with 0 mm stroke
265 g
Type of mounting
Optionally: With accessories
Operating pressure
0.6 bar ... 10 bar
Type code
ADN
Variants
Piston rod at one end
Impact energy in the end positions
0.4 J
Note on materials
RoHS-compliant
Additional moving mass per 10 mm stroke
9 g
Stroke
50 mm

Cushioning

Elastic cushioning rings/pads at both ends

Piston rod end

External thread

Operating medium

Compressed air as per ISO 8573-1:2010 [7:4:4]

Theoretical force at 6 bar, retracting

415 N

Moving mass at 0 mm stroke

60 g

Seals material

TPE-U(PUR)

Piston rod thread

M10x1.25

Mode of operation

Double-acting

Corrosion resistance class (CRC)

2 - Moderate corrosion stress

Pneumatic connection

G1/8

Piston rod material

High-alloy steel

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
