536293 Festo Pneumatic Actuators

Name: 536293
Brand: Festo

Part#:536293

Alt. Part#:ADN-40-25-A-P-A

Manufacturer:Festo

Category:Pneumatic Actuators

Product Lifecycle:Active

Product description

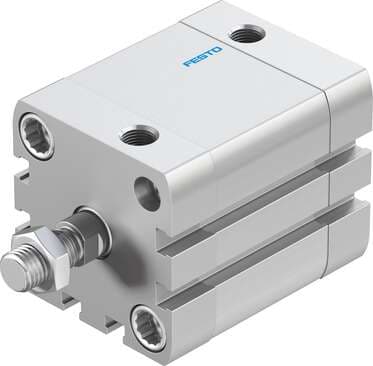

compact cylinder ADN-40-25-A-P-A Per ISO 21287, with position sensing and external piston rod thread Stroke: 25 mm, Piston diameter: 40 mm, Piston rod thread: M10x1,25, Cushioning: P: Flexible cushioning rings/plates at both ends, Assembly position: Any

Product Details

Piston rod thread
M10x1.25
Mounting position
Any
Symbol
00991217
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Theoretical force at 6 bar, advancing
754 N
Type of mounting
Optionally: With accessories
Piston rod material
High-alloy steel
Operating pressure
0.6 bar ... 10 bar
Piston rod end
External thread
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Additional weight per 10 mm stroke
37 g
Note on materials
RoHS-compliant
Material of cylinder barrel
Wrought aluminum alloy Smooth anodized
Piston diameter
40 mm
Cushioning
Elastic cushioning rings/pads at both ends
Position sensing
For proximity sensor
Ambient temperature
-20 °C ... 80 °C
Moving mass at 0 mm stroke
80 g
Pneumatic connection
G1/8
Stroke
25 mm

Type code

ADN

Mode of operation

Double-acting

Impact energy in the end positions

0.7 J

Basic weight with 0 mm stroke

346 g

Cover material

Aluminum Anodized

Conforms to standard

ISO 21287

Variants

Piston rod at one end

Information on operating and pilot media

Operation with oil lubrication possible (required for further use)

Theoretical force at 6 bar, retracting

686 N

Additional moving mass per 10 mm stroke

9 g

Seals material

TPE-U(PUR)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
