536296 Festo Pneumatic Actuators

536296 on Powermatic Associates
Festo

Part#:536296

Alt. Part#:ADN-40-50-A-P-A

Manufacturer:Festo

Category:Pneumatic Actuators

Product Lifecycle:Active

Product description

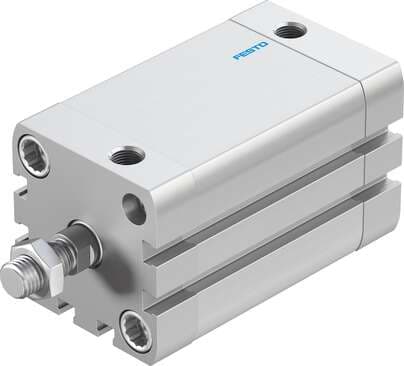

compact cylinder ADN-40-50-A-P-A Per ISO 21287, with position sensing and external piston rod thread Stroke: 50 mm, Piston diameter: 40 mm, Piston rod thread: M10x1,25, Cushioning: P: Flexible cushioning rings/plates at both ends, Assembly position: Any

Product Details

  • Piston diameter
    40 mm
  • Mounting position
    Any
  • Variants
    Piston rod at one end
  • Impact energy in the end positions
    0.7 J
  • Additional moving mass per 10 mm stroke
    9 g
  • Material of cylinder barrel
    Wrought aluminum alloy Smooth anodized
  • Operating pressure
    0.6 bar ... 10 bar
  • Type code
    ADN
  • Piston rod end
    External thread
  • Conforms to standard
    ISO 21287
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Additional weight per 10 mm stroke
    37 g
  • Note on materials
    RoHS-compliant
  • Cushioning
    Elastic cushioning rings/pads at both ends
  • Symbol
    00991217
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Theoretical force at 6 bar, retracting
    686 N
  • Basic weight with 0 mm stroke
    346 g
  • Pneumatic connection
    G1/8
  • Stroke
    50 mm
  • Piston rod thread
    M10x1.25
  • Position sensing
    For proximity sensor
  • Mode of operation
    Double-acting
  • Moving mass at 0 mm stroke
    80 g
  • Type of mounting
    Optionally: With accessories
  • Seals material
    TPE-U(PUR)
  • Ambient temperature
    -20 °C ... 80 °C
  • Theoretical force at 6 bar, advancing
    754 N
  • Cover material
    Aluminum Anodized
  • Piston rod material
    High-alloy steel

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
