543245 Festo Pneumatic Tubing

543245 on Powermatic Associates
Festo

Part#:543245

Alt. Part#:PEN-16X2,5-SW

Manufacturer:Festo

Category:Pneumatic Tubing

Product Lifecycle:Active

Product description

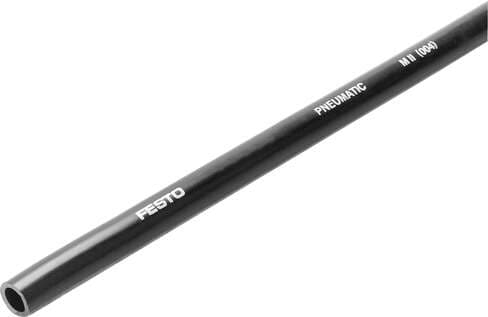

plastic tubing PEN-16X2,5-SW standard O.D tubing, for QS plug connectors, polyethylene (not approved for use in the food industry). Outside diameter: 16 mm, Bending radius relevant for flow rate: 122 mm, Inside diameter: 10,8 mm, Min. bending radius: 57,5

Product Details

  • Min. bending radius
    57.5 mm
  • Pneumatic connection
    For plug connection outside diameter 16 mm
  • Note on materials
    Free of copper and PTFE RoHS-compliant
  • Outside diameter
    16 mm
  • Type code
    PEN
  • Certification
    German Technical Control Board (TÜV)
  • Color
    Black
  • Pneumatic tubing test conditions
    Suitability for energy chains: >5 million cycles as per FN 942021
  • Bending radius relevant for flow rate
    122 mm
  • Ambient temperature
    -30 °C ... 60 °C
  • Shore hardness
    D 52 +/-3
  • Inside diameter
    10.8 mm
  • Temperature-dependent operating pressure
    -0.95 bar ... 10 bar
  • Tubing characteristics
    Suitable for energy chains in applications with high cycle rates
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:-:-] Water as per manufacturer's declaration at www.festo.com
  • Product weight by length
    0.1029 kg/m
  • Material of pneumatic tubing
    PE

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

543245 Related Documents

543245 DataSheet.pdf
