544434 Festo Pneumatic Valves Accessories

544434 on Powermatic Associates
Festo

Part#:544434

Alt. Part#:VABF-S3-1-P1A3-G14

Manufacturer:Festo

Category:Pneumatic Valves Accessories

Product Lifecycle:Active

Product description

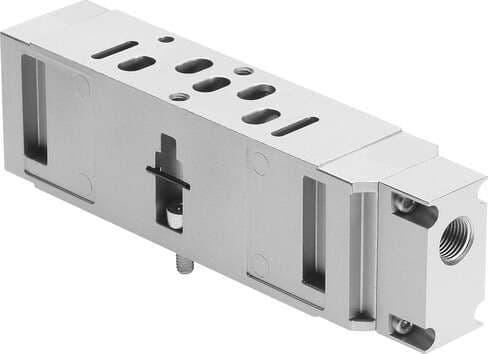

vertical pressure supply plate VABF-S3-1-P1A3-G14 For valve terminal VDMA-01/02, standard port pattern to 15407-1, for mounting between manifold sub-base and valve. Width: 26 mm, Based on the standard: ISO 15407-1, Assembly position: Any, Pneumatic vertic

Product Details

  • Operating pressure
    -0.9 bar ... 10 bar
  • Pneumatic vertical stacking
    Alternative pressure supply for 1
  • Corrosion resistance class (CRC)
    0 - No corrosion stress
  • Note on materials
    RoHS-compliant
  • Width
    26 mm
  • Mounting position
    Any
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Vertical stacking mounting type
    On manifold sub-base On individual sub-base
  • Standard nominal flow rate
    1000 l/min
  • Product weight
    201 g
  • Housing material
    Die-cast aluminum
  • Type code
    VABF
  • Symbol
    00991883
  • Degree of protection
    IP65 NEMA 4
  • Based on norm
    ISO 15407-1
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Ambient temperature
    -5 °C ... 50 °C

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
