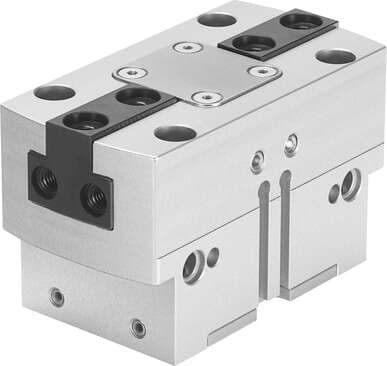

560210 Festo Pneumatic Grippers

Product Details

• Max. interchangeability
  ≤ 0.2 mm
• Pneumatic gripper repetition accuracy
  ≤ 0.05 mm
• Mode of operation
  Double-acting
• Position sensing
  For proximity sensor
• Min. opening time at 6 bar
  36 ms
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Degree of protection
  IP40
• Max. mass per external gripper finger
  180 g
• Product weight
  490 g
• Note on materials
  Free of copper and PTFE RoHS-compliant
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Mass moment of inertia
  2.807 kgcm²
• Type of mounting
  Optionally: With internal thread and dowel pin
• Gripper jaw material
  Steel Hardened
• Size
  35
• Max. gripper jaw angular play ax, ay
  ≤ 0.1 deg
• Number of gripper jaws
  2
• Type code
  HGPT
• Symbol
  00991894
• Max. operating frequency of pneumatic gripper
  ≤ 3 Hz
Ambient temperature
5 °C ... 60 °C
Relubrication interval for guidance elements
5 MioCyc
Pneumatic connection
M5
Stroke per gripper jaw
8 mm
Rotational symmetry
≤ 0.2 mm
Mounting position
Any
Design
Inclined plane Positively driven motion sequence
Total gripping force at 6 bar, opening
490 N
Operating pressure
3 bar ... 8 bar
Min. closing time at 6 bar
67 ms
Gripping force per gripper jaw at 6 bar, closing
229 N
Maximum torque on gripper jaw, My static
60 Nm
Maximum torque on gripper jaw, Mx static
80 Nm
Cover cap material
High-alloy stainless steel
Max. gripper jaw backlash Sz
≤ 0.02 mm
Gripper function
Parallel
Total gripping force at 6 bar, closing
458 N
Operating pressure for sealing air
0 bar ... 0.5 bar
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Gripping force per gripper jaw at 6 bar, opening
245 N
Maximum force on gripper jaw Fz, static
1800 N
Maximum torque on gripper jaw, Mz static
50 Nm
Sealing air pneumatic connection
M5
Housing material
Aluminum Anodized
