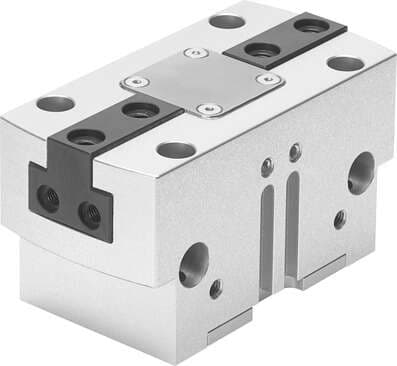

560225 Festo Pneumatic Grippers

Product Details

• Max. interchangeability
  ≤ 0.2 mm
• Rotational symmetry
  ≤ 0.2 mm
• Mode of operation
  Double-acting
• Total gripping force at 6 bar, opening
  2370 N
• Operating pressure
  3 bar ... 8 bar
• Min. opening time at 6 bar
  83 ms
• Maximum torque on gripper jaw, My static
  120 Nm
• Max. mass per external gripper finger
  640 g
• Pneumatic gripper repetition accuracy
  ≤ 0.05 mm
• Number of gripper jaws
  2
• Min. closing time at 6 bar
  82 ms
• Degree of protection
  IP40
• Maximum force on gripper jaw Fz, static
  3200 N
• Relubrication interval for guidance elements
  5 MioCyc
• Cover cap material
  High-alloy stainless steel
• Stroke per gripper jaw
  6 mm
• Max. gripper jaw backlash Sz
  ≤ 0.02 mm
• Gripper function
  Parallel
• Design
  Inclined plane Positively driven motion sequence
• Operating pressure for sealing air
  0 bar ... 0.5 bar
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Gripping force per gripper jaw at 6 bar, closing
1113 N
Ambient temperature
5 °C ... 60 °C
Product weight
1400 g
Sealing air pneumatic connection
M5
Size
50
Max. gripper jaw angular play ax, ay
≤ 0.1 deg
Type code
HGPT
Position sensing
For proximity sensor
Total gripping force at 6 bar, closing
2226 N
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Mass moment of inertia
19.488 kgcm²
Maximum torque on gripper jaw, Mx static
120 Nm
Type of mounting
Optionally: With internal thread and dowel pin
Gripper jaw material
Steel Hardened
Mounting position
Any
Symbol
00991894
Max. operating frequency of pneumatic gripper
≤ 2 Hz
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Gripping force per gripper jaw at 6 bar, opening
1185 N
Maximum torque on gripper jaw, Mz static
100 Nm
Pneumatic connection
G1/8
Housing material
Aluminum Anodized
Note on materials
Free of copper and PTFE RoHS-compliant
